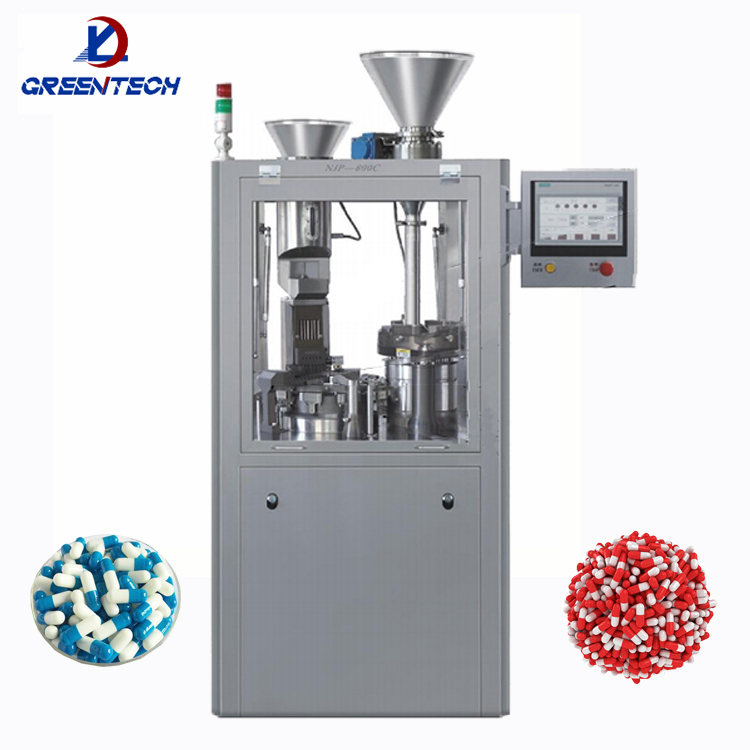

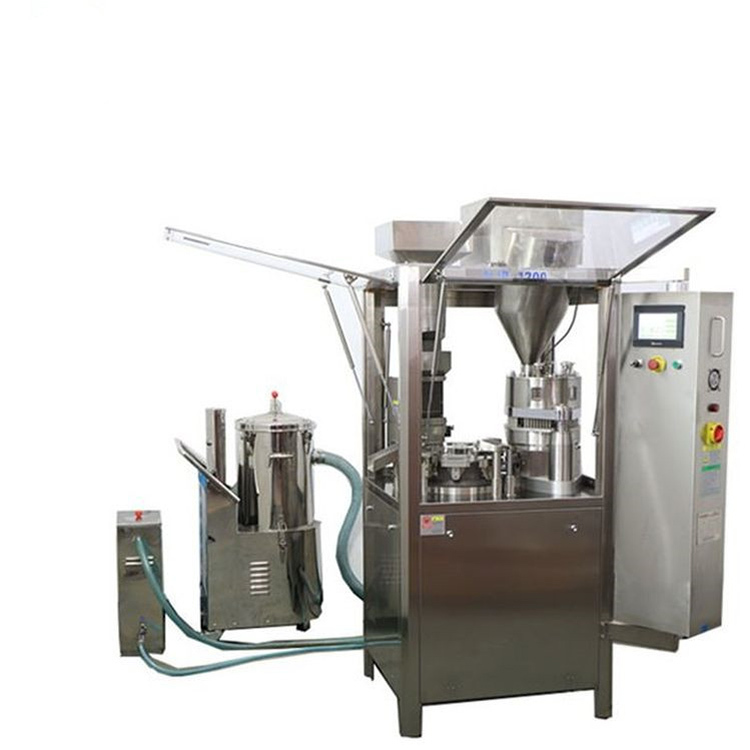

Automatic Vitamin Coffee Capsule Filling Machine
1. NJP-800 automatic capsule filling machines are built aim at improve the old model adopted totally closed type instead of open type.
2. Absorbed advanced technology abroad.
3. Beautiful outline, easy operation.
4. Meets CE standard, popular at home and abroad.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Automatic Vitamin Coffee Capsule Filling Machine
2. Pictures
3. Main Feature
(1) Small size, low power consumption, easy to operate and keep clean.
(2) Products standardized with interchangeable parts for common equipments, replacement of molds are convenient and accurate.
(3) Cam downside design, to increase pressure in atomizing pumps, keep cam shafts well lubricated, reduce wears and frictions, prolong life of parts.PLC controlled, frequency stepless governor, digital display, easy and objective.
(4) It adopts capsule vacuum positioned mechanism, to make the capsule qualified over 99%.
(5) A plane in a dose-based, 3D regulation, uniform space effectively guaranteed load difference, rinsing very convenient.
(6) The man-machine interface, complete function, can eliminate faults such as materials shortage capsule shortage, other faults, automatic alarm and shutdown, real time calculation and accumulation measurement and high accuracy in statistics.
4. Specifications
Model | NJP200 | NJP400 | NJP800 | NJP1200 | NJP2500 | NJP3800 |
Filling capacity (pcs/min) | 200 | 400 | 800 | 1200 | 2500 | 3800 |
Weight | 700 | 800 | 900 | 1100 | 1500 | 2200 |
Dimension(m) | 1.0*0.7*1.9 | 1.0*0.7*1.9 | 1.1*0.9*2.1 | 1.1*0.9*2.1 | 1.1*1.2*2.0 | 1.5*1.2*2.2 |
Power supply | 380V/50HZ | |||||
Total power(kw) | 3 | 3 | 4 | 5.5 | 8 | 10.5 |
Operating noise | ＜75DB(A) | |||||
Filling percentage | ＞99% | |||||
Capsule size | 00.0, 1,2,3,4,5# | |||||
Filling accuracy | ＜±4% | |||||
