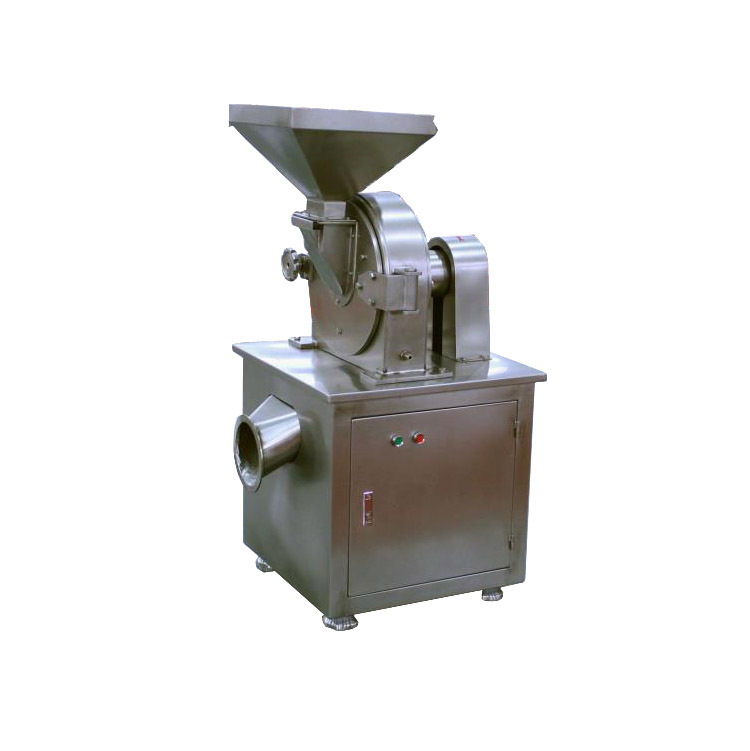

Industrial Stainless Steel Powder Pulverizing Machine
This machine utilizes the high-speed relative motion between the movable toothed disc and the fixed toothed disc, so that the crushed material is impacted by the teeth, rubbed and materials are impacted by each other.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Industrial Stainless Steel Powder Pulverizing Machine
2. Main Pictures
3. Features
(1) This machine is suitable for industries such as medicine, chemical industry, pesticide, food and grain, and has a wide range of uses.
(2) The structure of this machine is simple, strong, stable, and the crushing efficiency is good.
(3) It can be more in line with national standards and meet GMP requirements.
4. Product Introduction
(1) The crushed material can be directly discharged from the grinding chamber of the main machine, and the particle size can be obtained by replacing the screen with different apertures.
(2) The inner wall of the casing is all processed to achieve a smooth surface, which changes the phenomenon of rough inner wall and powder accumulation of the old model, so that the production of medicines, food, chemicals, etc.
5. Technical Specifications
Model | SF-130 | SF-180 |
Capacity（kg/h） | 2-5 | 10-30 |
Spindle speed （r/min） | 4200 | 4200 |
Noise（db） | <85 | <85 |
Grinding fineness（mesh） | 20-120 | 20-120 |
Motor Power（kw） | 1.5 | 2.2 |
Overall Size（mm） | 580*380*800 | 580*380*920 |
Weight（kg） | 75 | 85 |
