10g Chicken Bouillon Cube Production Line
The 10g chicken bouillion production line is an assembly line composed of a mixer, a tablet press machine and a packaging machine. The production line is mainly used to produce the seasonings -- chicken bouillion, which was widely used in our daily life.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 10 sets per month
Details
1. 10g Chicken Bouillon Cube Production Line
2. FEATURES

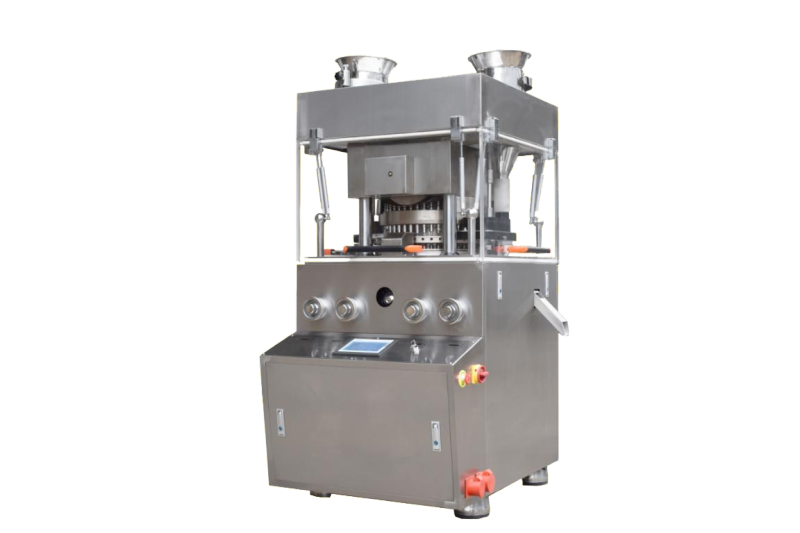

ZP420-19D Full-automatic Tablet Press
(1) This machine is an automatic rotary tablet press, which can press grain into round, lettering, special-shaped, and two-color tablet prescriptions. Mainly used for tablet production in chemical, food, electronics and other pharmaceutical industries.
(2) This machine is for pressing materials of powder containing over 100 meshes within no more than 10% granule.

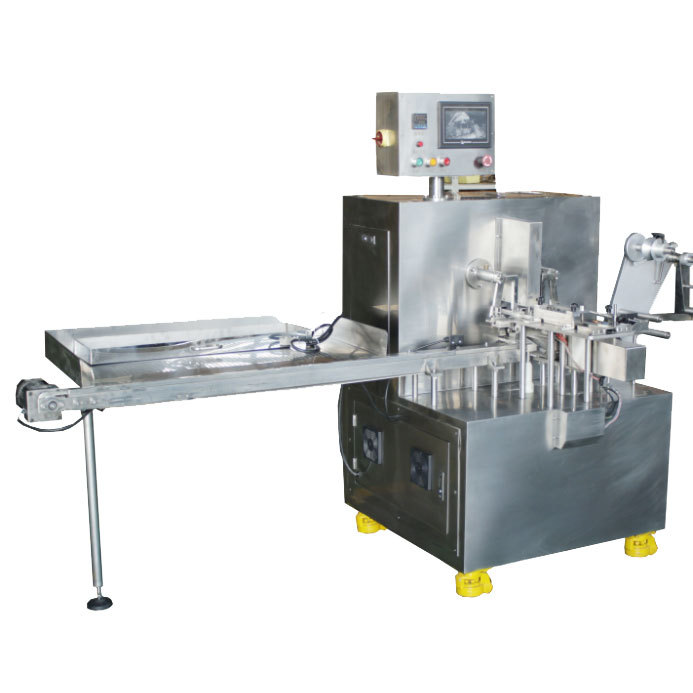

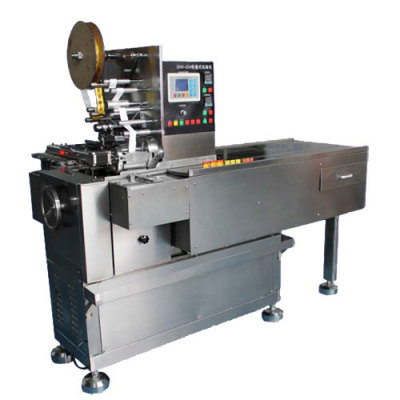

DZB-600 Wrapping Machine
(1) The running speed of the main motor of the drive system can be adjusted by the inverter.
(2) This machine has an automatic alignment device for color wrapping paper, and users can use a variety of patterns.

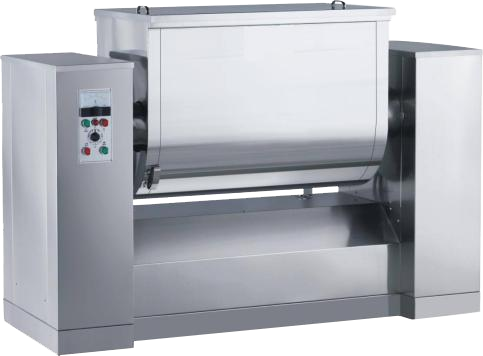

CH Series Trough Type Mixing Machine
The trough mixer is designed for thorough mixing of powders or pastes, it is a single-arm horizontal pass-through mixer.
3. SPECIFICATIONS
ZP420-19D Full-automatic Tablet Press
Model | ZP420-19D |
Punch pin number | 19 |
Maximum pressure | 120KN |
Die diameter | 40mm |
Maximum filling depth | 32mm |
Tablet thickness | 16mm |
Tablet thickness | 10000-30000pcs/h |
Total power | 7.5KW 380V/50HZ |
Net weight of equipment | 1950kg |
Bounday dimension of equipment | 1300*1500*1850mm³ |
DZB-600 Wrapping Machine
Model | DZB-600 |
Capacity（pcs/min） | 150granule/min（stepless variable-frequency） |
Product shape | Square shape, orthogon shape |
Product Specificationds（mm） | 40*30*20 |
Package Materials | Aluminum composite film |
Power（KW） | 1.65KW |
Oversize（mm） | 2380*1050*1550 |
Weight（kg） | 600KG |
CH Series Trough Type Mixing Machine
Model | CH-50 | CH-100 | CH-200 | CH-500 |
Mixing Arm Speed（rpm） | 24 | 24 | 23 | 18 |
Discharging angle（℃） | 105 | |||
Motor Power（kw） | 1.5 | 2.2 | 3 | 7.5 |
Overall Size（mm） | 1200*500*650 | 1300*600*1000 | 1600*600*1200 | 2000*800*1300 |
Weight（kg） | 100 | 350 | 650 | 1200 |
4. PRODUCT DESCRIPTION
(1) According to the design layout of the chicken bouillion production line, one tablet press machine and two wrapping machine is included.
(2) The tablet press machine is not suitable for pressing semi-solid, moist granules, low melting point, hygroscopic materials and non-granular powders.
(3) According to product requirements, it can be packed in single and double layers of paper. What’s more, the wrapping machine is suitable for wrapping candy, chicken nuggets, block folded rectangular or square products.
