Chicken Bouillon Cube Making Machine
This set of equipment is composed of a machine that specializes in the production of 4 grams of chicken nuggets, mainly used in the food industry.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 10 sets per month
Details
1. Chicken Bouillon cube making machine
2.
3. FEATURES

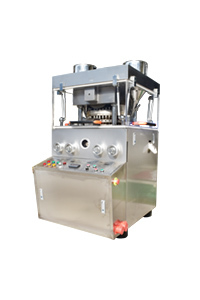

Rotary Tablet Press ZP420-25D
(1) The electrical control adopts frequency conversion speed regulation device, which is easy to operate, stable in operation, safe and accurate.
(2) With overload protection device, it will automatically stop when the pressure is overloaded.
(3) Mechatronics, touch button, screen display.

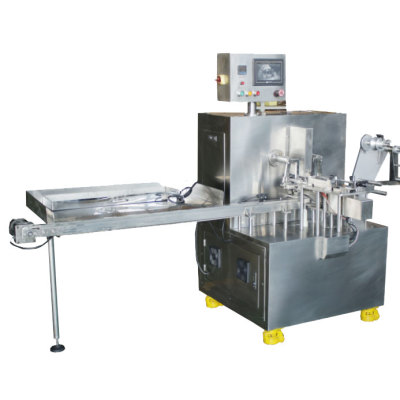

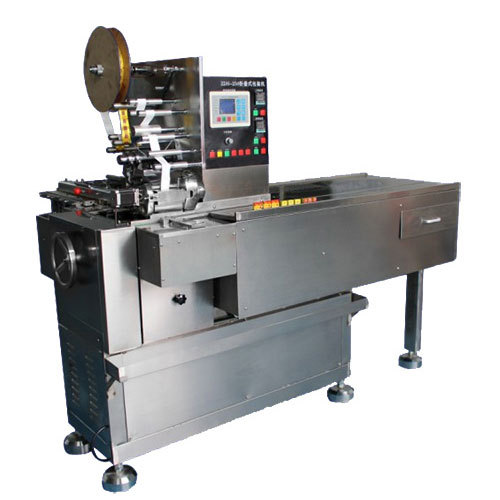

4g Packing Machine
(1) Adopt glycoside cam structure, high precision, stable operation and low noise.
(2) The speed of the main motor of the gear system is controlled by frequency conversion.

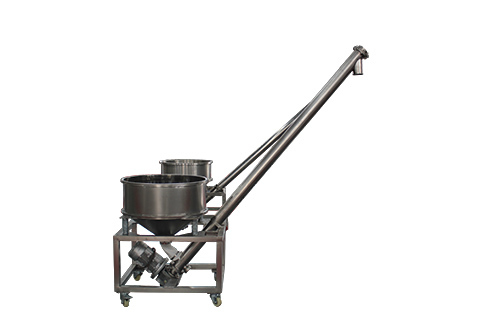

Screw Feeder SLJ-100
(1) The vibrating screw feeder is composed of double motors, feeding motor, vibration motor and each switch control.
(2) The hopper is adjustable and vibrates to make the material flow easily, which is good for the material.
4. SPECIFICATION
Rotary Tablet Press ZP420-25D
Model Parameter | ZP420-25D |
Punch pin number | 25 |
Punch diameter | 32mm |
Die diameter | 42mm |
Production range (10,000 tablets/h) | 60000 |
Rotating speed (rmp) | 0-20 |
Maximum pressure | 100KN |
Maximum filling depth | 32mm |
Tablet thickness | 10-16mm |
Maximum tablet diameter | 30 |
Working noise | ≤70dB |
Total power | 5.5KW/380V，50Hz,three-phase five-wire system |
Bounday dimension of equipment | 1240*850*1850 mm |
Net weight of equipment | 1750kg |
Remark | The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type. |
4g Packing Machine
Product No | ZDS-250 |
Packing Style | Side-sealing |
Packing Speed | 280Bag/Min |
Packing Range | 14*14*14mm |
Power | 1.5kw |
Outside Size (Milimetre) | 2000*1350*1600 |
Weight(Kilogram) | 800 |
Screw Feeder SLJ-100
Product No | SLJ-100 |
Feeding Speed (m3/h) | 1 |
Volume (l) | 100 |
Feeding Height (m) | 1.8 |
Overall Size (mm) | 780*630*750 |
Weight (kg) | 80 |
5. PRODUCT DESCRIPTION
Rotary Tablet Press ZP420-25D
(1) The outer shell is a closed shell made of stainless steel, and the inner table is made of stainless steel, which can keep the surface bright, prevent cross-contamination, and meet GMP requirements.
(2) Equipped with plexiglass and visual windows, the state of the flat panel can be seen, and all side panels can be opened for cleaning, which is convenient for maintenance.
(3) The layout of all controllers and operating parts is reasonable.
4g Packing Machine
(1) It has an automatic alignment device for the color code of packaging materials, and various packaging styles are optional.
(2) Single or double packaging is optional.
Screw Feeder SLJ-100
(1) The hopper is separated from the torsion shaft. Reasonable structure, easy loading and unloading
(2) Dustproof feature, the bearing is not polluted by dust and powder.
(3) In order to facilitate the cleaning of waste materials, this machine is designed as: pouring and discharging materials, storing materials at the bottom of the hopper tube, and taking out all the screws.
