Automatic Bottling-packaging Line

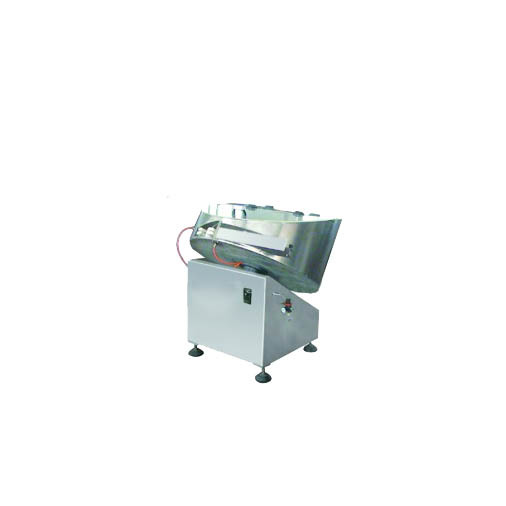

1. Bottle unscrambler

The motor drives the vase faceplate to work through the gear drive. The bottles in the bottle hopper are turned from the bottom of the bottle unscrambling flower plate to the top of the bottle unscrambling plate through the semi-circular groove of the bottle unscrambling flower plate. Bottom-up bottles are turned over to complete bottle unscrambling.

Features

Easy to change varieties, only need to make simple adjustments and replace some molds.

Main Specifications

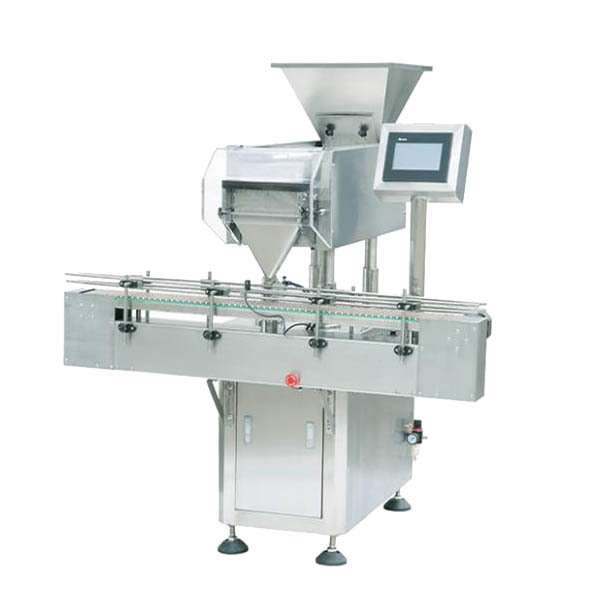

2. Electronic Counting Machine

The bottle stop device on the bottle delivery track of the conveying bottle mechanism blocks the bottles conveyed by the upper equipment at the bottling position and waits for filling. The medicine enters the medicine warehouse in an orderly manner through the vibration of the feeding corrugated plate. The medicine warehouse is equipped with a counting photoelectric sensor.

Features

(1) High degree of intelligence, with multiple detection and alarm control functions such as no bottle, no counting, fault self-inspection, etc.;

(2) Supporting functions: automatic detection of lack of bottle photoelectric sensor, automatic shutdown;

(3) Simple operation: intelligent design is adopted, and various operating parameters can be set according to needs, and 10 sets of setting parameters can be stored for easy recall;

(4) Easy maintenance: operators only need simple training to operate, disassembly, cleaning, and replacement of parts are simple and convenient, and no tools are required;

(5) Sealed and dust-proof: equipped with a dust removal box to reduce dust pollution (optional).

Main Specifications

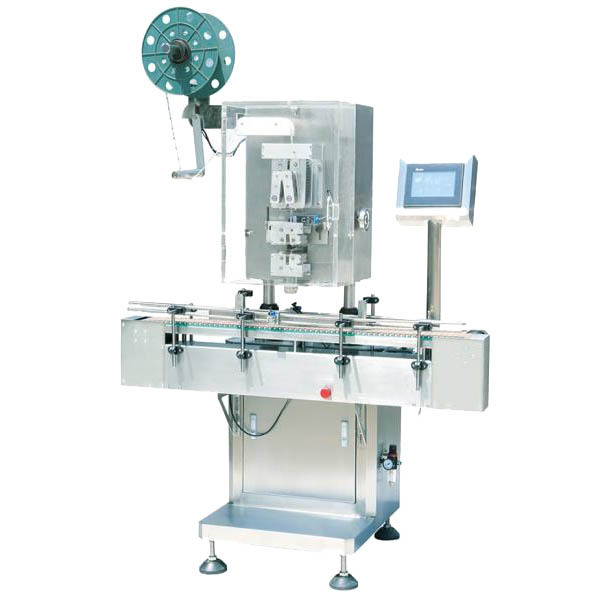

3. Desiccant Plugging Machine

The bottle-stopping cylinder on the bottle-feeding track of the conveying bottle mechanism will block the bottle conveyed by the upper equipment at the position where the desiccant is filled, waiting for the desiccant to be filled, and the bottle mouth is aligned with the shearing mechanism.

Features

(1) Strong compatibility, suitable for round, oblate, square and flat square bottles of various specifications and materials.

(2) Desiccant bag packed in a disc-shaped bag with or without color code;

(3) The design of pre-loaded desiccant belt is adopted to avoid uneven delivery of bags and ensure the accuracy of bag length control.

(4) The desiccant bag thickness self-adaptive design is adopted for the bag to avoid bag breakage during the transfer process.

Main Specifications

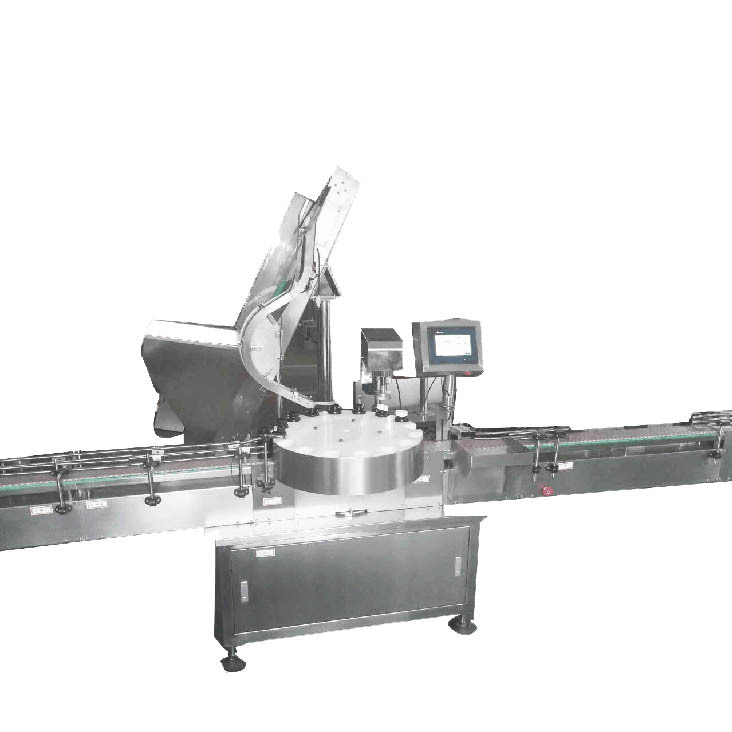

4. Capping Machine

This machine can automatically complete bottle feeding, filling, capping, capping and other actions. Its structure is simple, its movement is stable, and it can solve the problem of positioning and filling special-shaped bottles in a targeted manner. The machine can be produced as a stand-alone machine or connected to the production line.

Features

(1) Strong compatibility, suitable for caps and bottles of various specifications;

(2) A pair of cap-dropping and cap-wearing devices are suitable for bottle caps of various specifications;

(3) It has multiple inspection and alarm control functions such as no bottle, no cap, crooked cap, reverse cap, no aluminum foil detection and rejection, fault self-inspection, etc., to ensure continuity and accuracy;

(4) Fully automatic operation, intelligent joint control with upper and lower processes, good coordination, no need for special operation, saving labor;

Main Specifications

5. Electromagnetic Aluminum Foil Sealer

The bottle filled with aluminum foil passes under the induction head, and the aluminum foil is heated by the energy generated by the induction head. The heated aluminum foil melts the plastic film compounded on the aluminum foil and adheres tightly to the bottle mouth to obtain a sealing effect.

Main Specifications

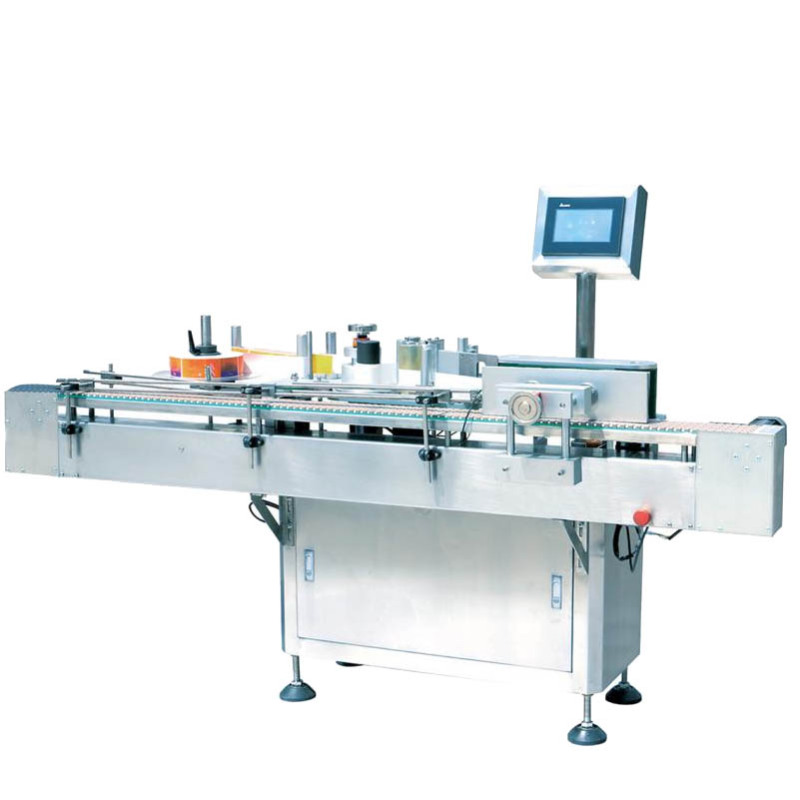

6. Self-adhesive Round Bottle Side Labeling Machine

(1) Strong compatibility, suitable for various round objects;

(2) The marking adopts a tension design, which can not only ensure the quality of the coding, but also accurately control the length of the marking paper and the uniformity of the starting mark.

(3) Adopting the pre-labeling system, the labeling is stable, the labeling is smooth, and the position accuracy is high;

(4) Rolling label paper adopts different methods for different bottle types to ensure the quality of labeling;

Main Specifications
