Automatic Pneumatic Vacuum Conveyer
1. QVC series pneumatic vacuum conveyors are used for automatic tablet feeding, and can be used in conjunction with presses, capsule filling machines, packaging machines, pulverizers, screening machines and mixers.
2. It does not need any mechanical vacuum pump, so it has simple structure, small size, no maintenance, no noise and easy to use.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Automatic Pneumatic Vacuum Conveyer

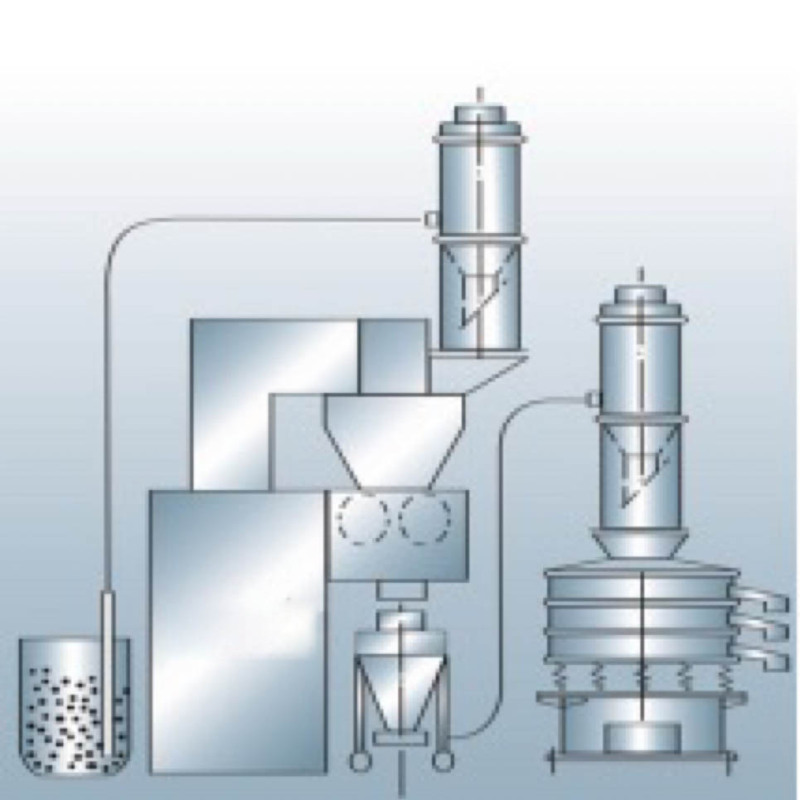

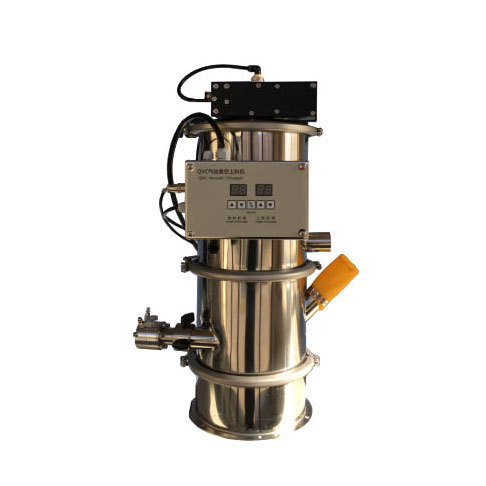

2. Main Pictures
3. Feature:
(1) Thoroughly solve the problem of material stratification
(2) The sintered metal filter is original from Japan
(3) Can remove static electricity from materials
(4) Airtight without cross-contamination
(5) Made of high quality stainless steel (304 and 316)
(6) Made of non-toxic and corrosion-resistant materials
(7) The filter is easy to clean
(8) Intelligent automatic control
(9) Building block structure, easy to disassemble and assemble
(10) Easy to set up, small size and light weight
(11) No noise, no shielding
(12) Economical, practical and economical
4. Main Technical Specifications
Model | Transportation Capacity (kg/h) | Air Pressure (Mpa) | Air Consume (L/min) | Overall Size (mm) |
QVC-1 | 350 | 0.4-0.6 | 180 | Φ140*560 |
QVC-2 | 700 | 0.4-0.6 | 360 | Φ213*720 |
QVC-3 | 1500 | 0.4-0.6 | 720 | Φ290*850 |
QVC-4 | 3000 | 0.4-0.6 | 1440 | Φ420*1150 |
QVC-5 | 6000 | 0.4-0.6 | 2880 | Φ420*1150 |
QVC-6 | 9000 | 0.4-0.6 | 4320 | Φ420*1350 |
