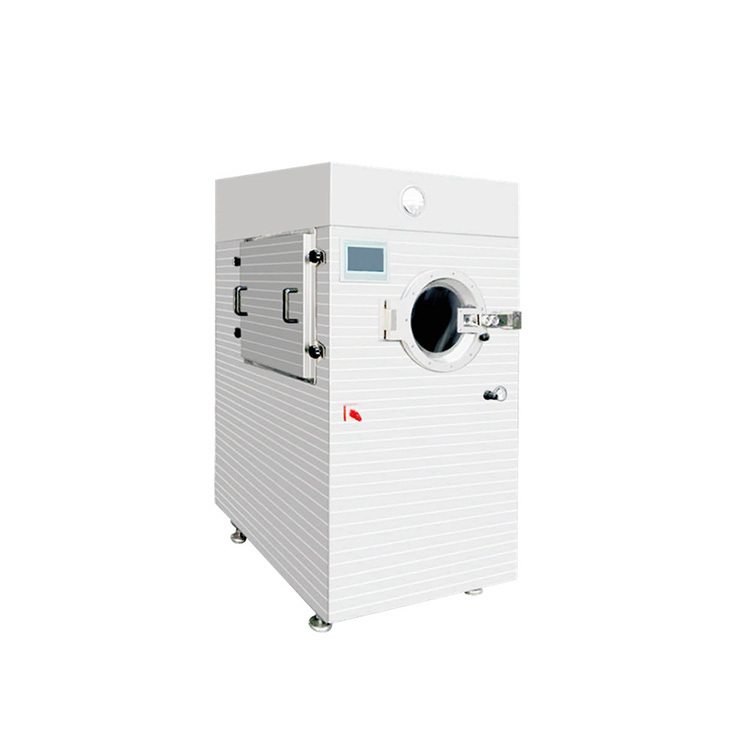

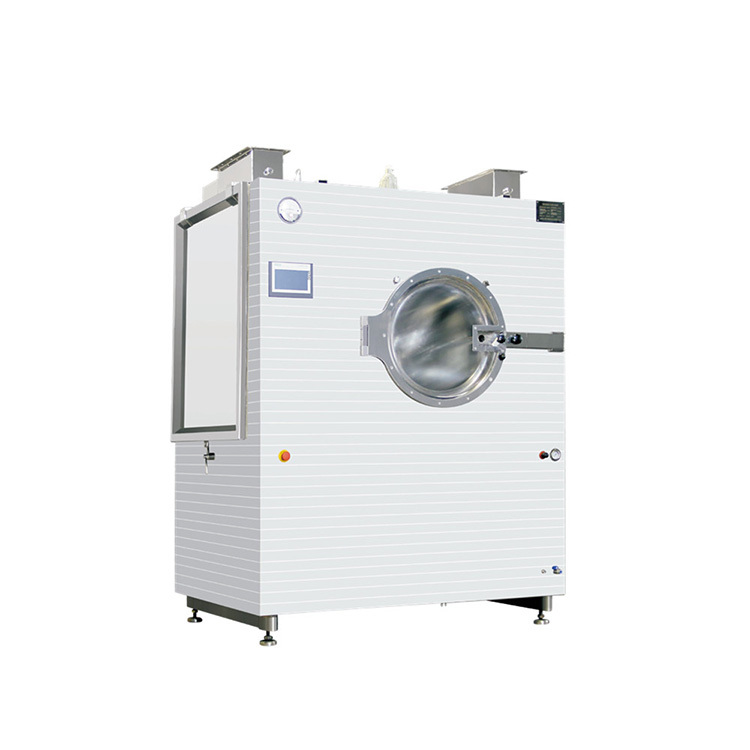

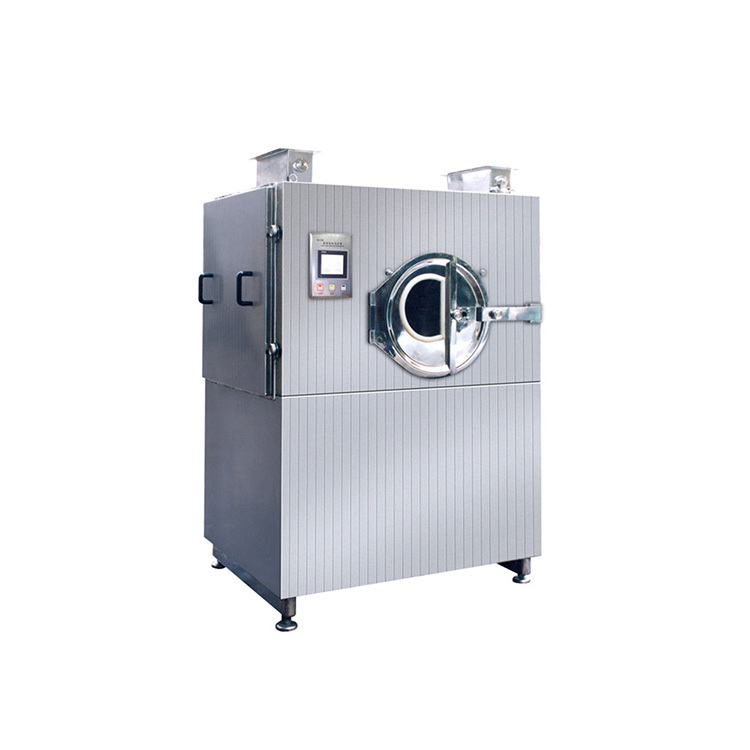

BG Series High Efficient Film Coating Machine

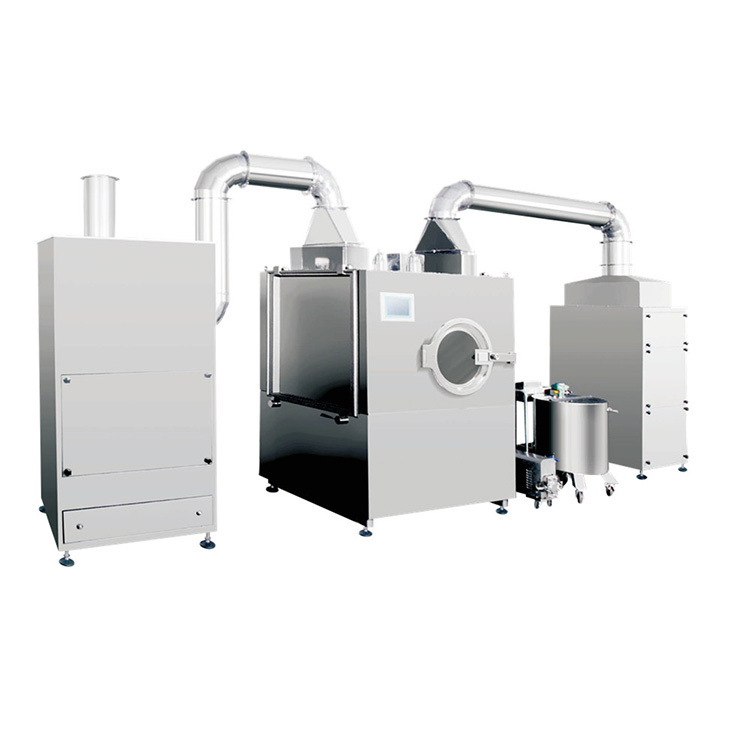

The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, feed and discharge device, and computer programming control system.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. BG Series High Efficient Film Coating Machine
2. Main Pictures
3. Product Induction
(1) It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc.
(2) In such fields as of pharmaceutical, food and biological products etc.
(3) And it has such characteristics as good appearance in design, high efficiency, low energy consumption and small floor area, etc.
Basic working principle:
(1) The tablets make complicated and constant track movement with easy and smooth turn frequent exchanging in a clean and closed drum of the film coating machine.
(2) The coating mixed round in the mixing drum are sprayed on tablets through the spray gun at the inlet unaction of the peristaltic pump.
(3) Meanwhile under the action of air exhaust and negative pressure 100,000 clean hot air supplied by the air exhaust cabinet is exhausted from the fan at the sieve meshes through tablets.
(4) These coating mediums on the surface of tablets get dry forming a coat of firm, fine and smooth film.
(5) The whole process is finished under the control of PLC.
Model | BG-10 | BG-40 | BG-80 | BG-150 |
Max.load capacity（kg） | 10 | 40 | 80 | 150 |
Cylinder dimension (mm) | 580 | 820 | 950 | 1200 |
Roller speed (times/min) | 3-25 | 3-20 | 3-18 | 3-18 |
Main machine power (kw) | 0.55 | 1.1 | 1.5 | 2.2 |
Main machine weight (kg) | 220 | 500 | 600 | 850 |
Overall Size（mm） | 900*850*2000 | 1180*850*1530 | 1390*1050*1720 | 1770*1310*2200 |
