Food Grade Stainless Steel Tablet Coating Machine
1. The water chestnut sugar coating machine is an energy-saving, safe and clean electromechanical integration equipment, which can coat tablets, pills and candies with organic film coating, water-soluble film coating and slow-release coating.
2. All are made of imported stainless steel, the main material is 304/2B, and the drum can be made of 316L material according to needs.
3. The main door parts and their built-in parts adopt stamping die forming system, which is easy to clean, beautiful and practical.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details

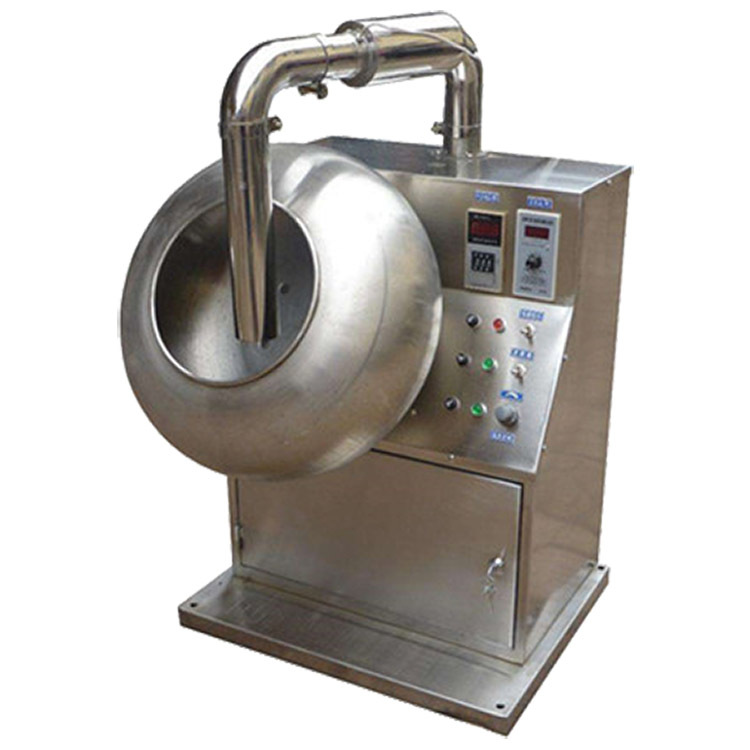

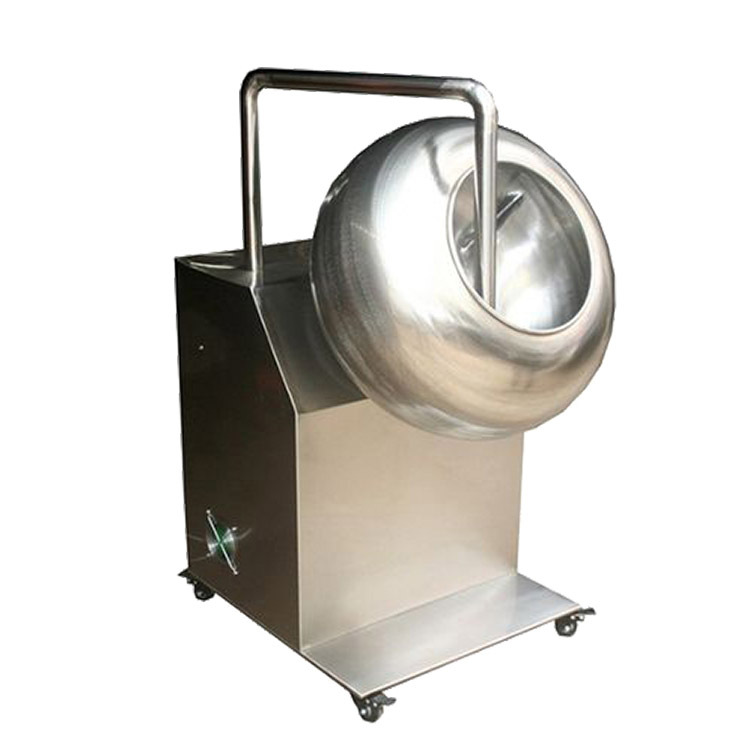

1. Food Grade Stainless Steel Tablet Coating Machine
2. Main Pictures
3. Features
(1) The control system composed of PLC and HMI has reasonable design and flexible programming.
(2) It can meet the needs of various pharmaceutical processes.
(3) Reliable operation, stable performance, in line with GMP requirements.
4. Product Introduction
(1) Under the action of the streamlined deflector agitator, the dressing on the surface is saved and the quality of the dressing is improved.
(2) The constant pressure variable displacement peristaltic pump eliminates the oil return pipe.
(3) The rotating radius of the drum changes with the pressure, and the amount of output slurry and shotcrete is automatically balanced.
(4) The atomization effect is stable, the spray system is simplified, the spray gun is blocked, the dressing is saved, and the cleaning is simple.
(5) The spray gun specially designed for coating has uniform atomization and large spraying area. If the spray gun is blocked by the cleaning mechanism, the coating can be continued, the coating time can be shortened, and the coating material can be saved.
5. Main Technical Specifications
Model No. | BY-300A | BY-400A | BY-800 | BY-1000A | BY-1250 |
Dia. of Coating Pan (mm) | 300 | 400 | 800 | 1000 | 1250 |
Rotation Speed (r/min) | 30 | 45 | 30 | 30 | 30 |
Production Capacity (kg/batch) | 1-2 | 2-5 | 30-50 | 50 | 80-150 |
Motor Power (kw) | 0.55 | 0.55 | 1.5 | 2.2 | 2.2 |
Blower Fan (w) | 40 | 40 | 200 | 40 | 370 |
Spray Gun | RA-C1 | RA-C1 | RA-C1 | RA-C1 | RA-C1 |
Regulating Range of Air Temperature (c) | 80 | 80 | 80 | 80 | 80 |
Total Power of Heating (kw) | 1.5 | 1.5 | 3 | 4.5 | 6 |
Overall Size (mm) | 450*550*780 | 540*360*700 | 1000*1000*1550 | 1070*1000*1580 | 1350*1350*1600 |
Weight (kg) | 80 | 80 | 300 | 450 | 500 |
