Drying Machine For Pharmaceutical Products
1. It is suitable for drying wet bulk or powder raw materials in pharmaceutical, food, chemical and other industries.
2. The machine complies with GMP requirements.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Drying Machine For Pharmaceutical Products

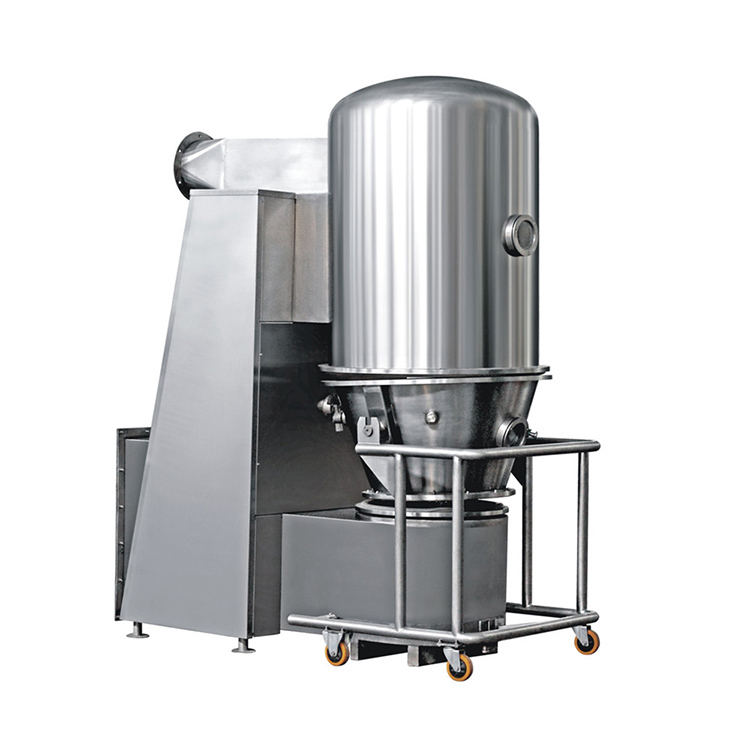

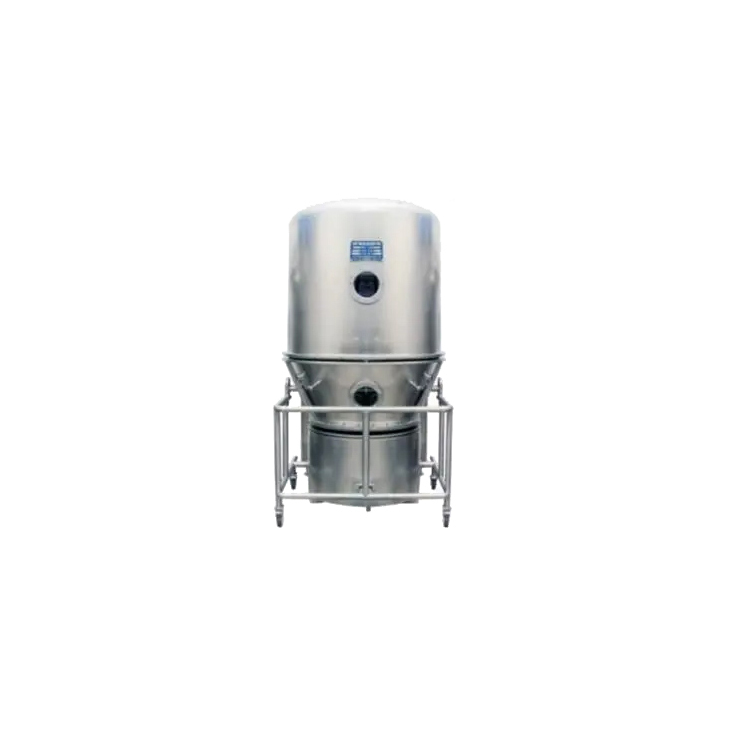

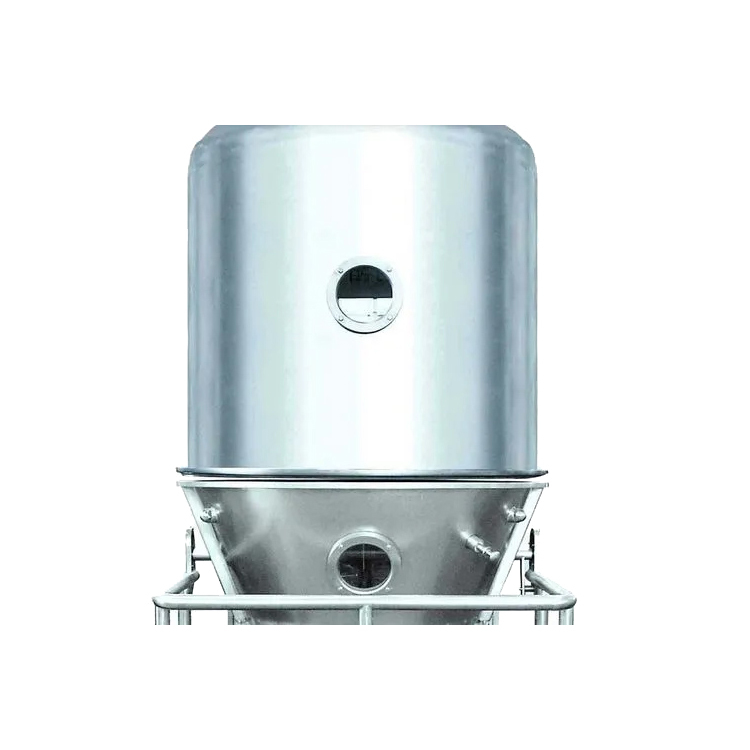

2. Main Pictures
3. Main Features
(1) The particles are discharged by turning over. In this way, it is very convenient and complete. The discharge system can also be designed upon request.
(2) Operate under negative pressure and sealing conditions. The air is filtered. Therefore, the operation is simple and the cleaning is convenient. It is an ideal equipment that meets the requirements of GMP.
(3) The drying speed is fast and the temperature is uniform. Generally speaking, the drying time per batch is 15-45 minutes.
(4) The structure of the fluidized bed is circular to avoid dead ends.
(5) There is a stirrer in the hopper to avoid the agglomeration of raw materials to form flow channels.
4. Main Specifications
Model | GFG-60 | GFG-100 | GFG-120 | GFG-150 | GFG-200 | |
Raw material (kg) | 60 | 100 | 120 | 150 | 200 | |
Fan | Air volume (m³/h) | 2361 | 3488 | 4000 | 4901 | 6032 |
Air pressure (pa) | 5940 | 5330 | 7100 | 6800 | 7800 | |
Power (kw) | 7.5 | 11 | 15 | 18.5 | 22 | |
Stirring power (kw) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | |
Stirring speed (rpm) | 11 | |||||
Consume of steam heating (kg/h) | 140 | 170 | 210 | 240 | 280 | |
Power of electrical heating (kw) | 54 | 63 | 63 | 72 | 81 | |
Time of operation (min) | 15-30 | |||||
Machine height (mm) | 2700 | 2900 | 2900 | 2900 | 3300 | |
