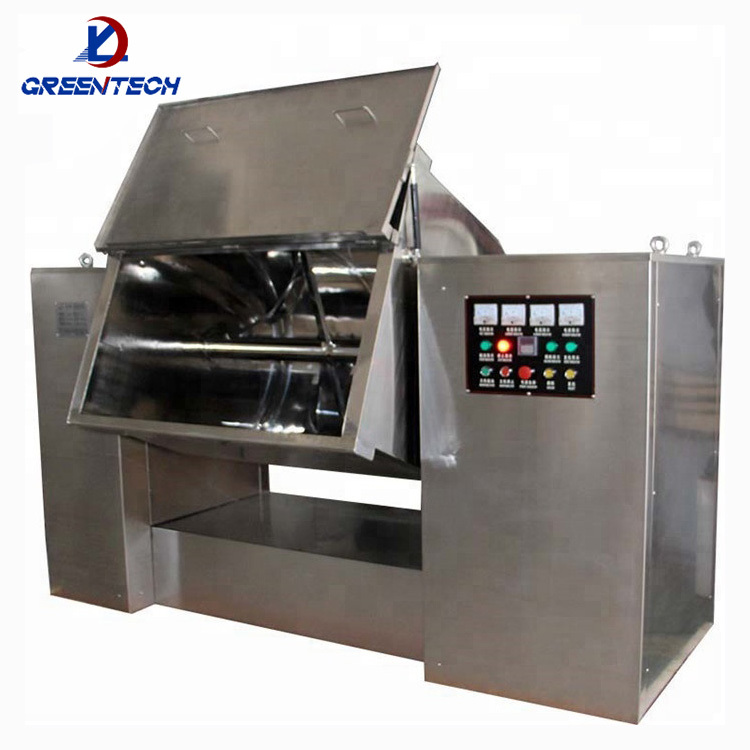

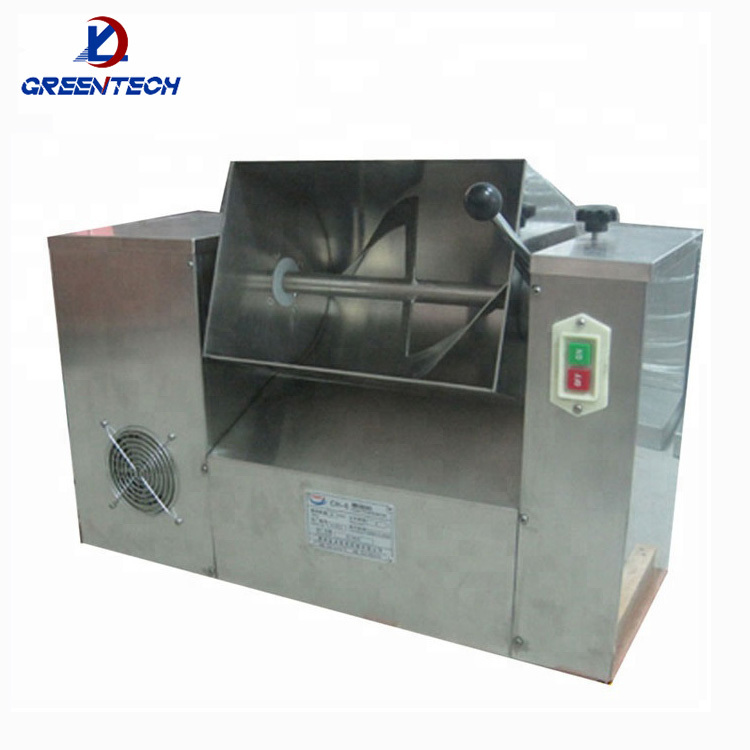

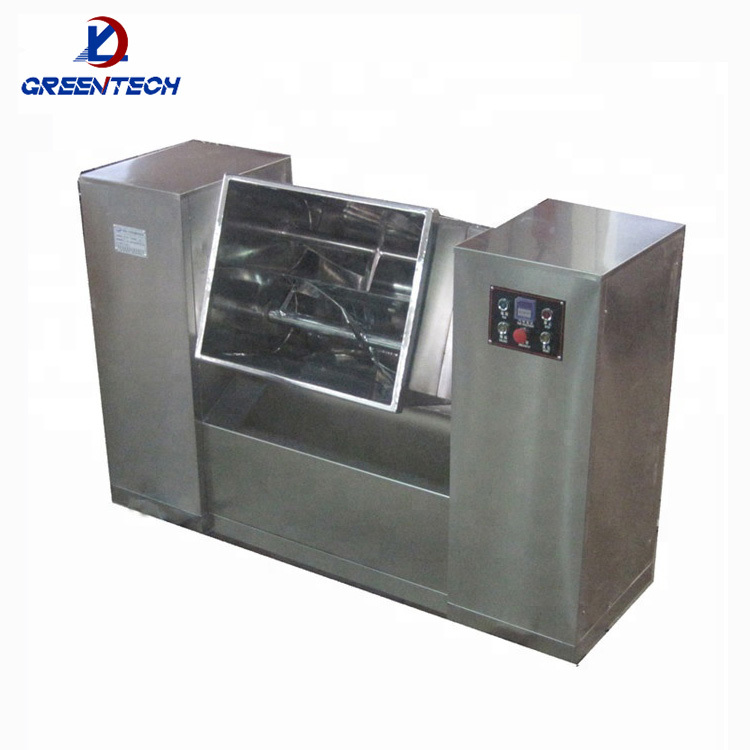

Automatic Shaking And Mixing Machine
Applications:
As a whole stainless horizontal tank type mixer, this machine is widely used for mixing of powdery or paste material in pharmaceutical chemical and foodstuff industries.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Automatic Shaking And Mixing Machine
2. Main Pictures
3. Working Principle
(1) S type paddle is rotated, through mechanical driving, which pushes the material turn repeatedly and mix uniformly. (2)Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.
Main Technical Data
Model | CH-50 | CH-100 | CH-200 | CH-500 |
Trough capacity( L) | 50 | 100 | 200 | 500 |
Mix Arm Speed (rpm) | 24 | 24 | 23 | 18 |
Tilting angle of the trough | 105 | 105 | 105 | 105 |
Main motor( KW) | 1.1 | 2.2 | 3 | 7.5 |
Overall dimension(mm) | 1200*500*650 | 1300*600*1000 | 1600*600*1200 | 2000*800*1300 |
Weight( kg) | 100 | 350 | 650 | 1200 |
