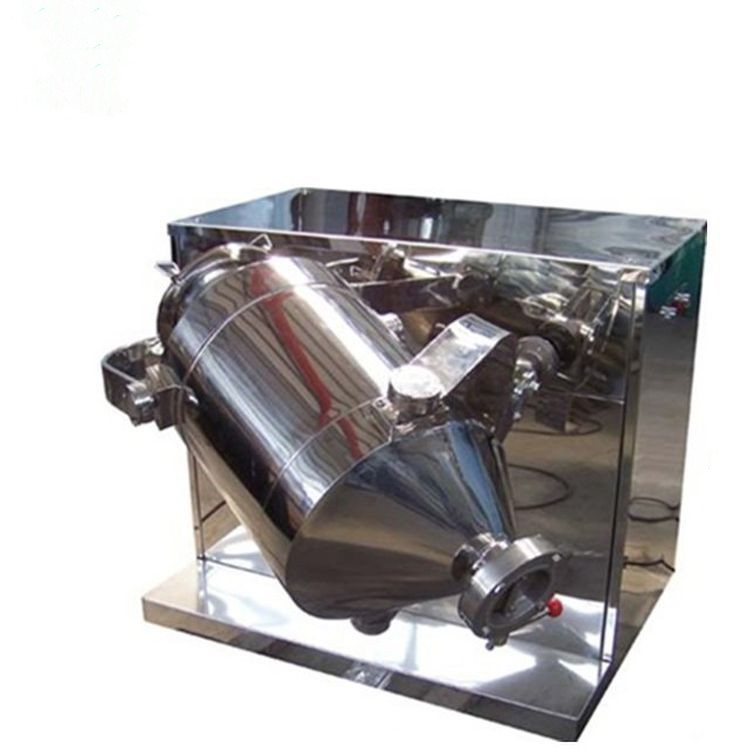

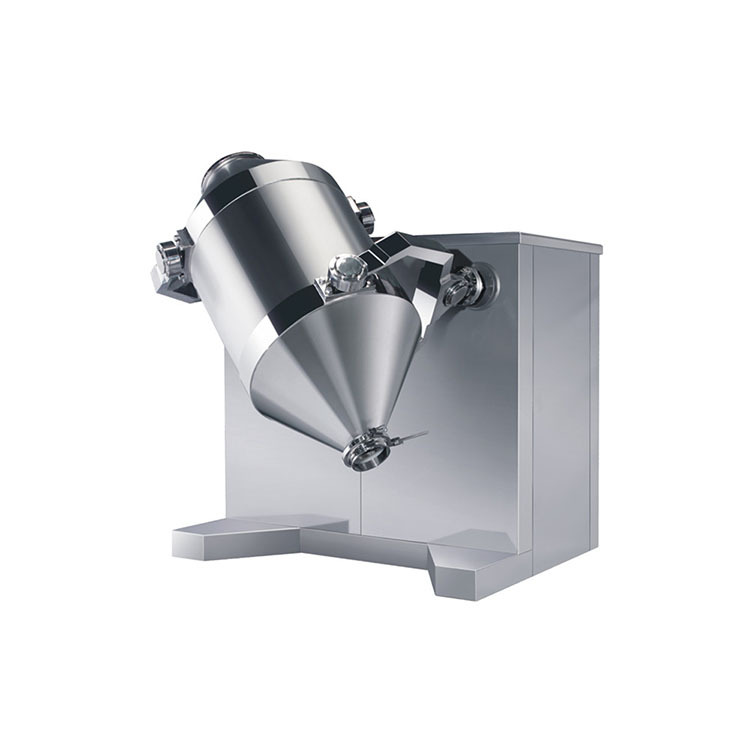

Powder Particle 3-dimensional Mixing Machine
1. The three-dimensional mixing machine can automatically complete all actions such as lifting, clamping, mixing, and lowering.
2. Equipped with an automatic lifting hopper mixer and multiple mixing hoppers of different specifications, it can meet the mixing requirements of large batches and multiple varieties.
3. It is an ideal equipment for general mixing in pharmaceutical factories. At the same time, it is widely used in pharmaceutical, chemical, food and other industries.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Powder Particle 3-dimensional Mixing Machine
2. Main Pictures
3. Features
(1) Materials can pass through different process sections in the same container, without frequent procedures such as material transfer and feeding. Effectively control dust and cross-contamination, reduce the loss of materials, control the layering of materials, optimize the production process, and meet the GMP requirements for pharmaceutical production.
(2) The rotary body (mixing hopper) forms an included angle of 30° with the rotary axis, and the materials in the mixing hopper are flipped with the rotary body, and at the same time make tangential motion along the bucket wall, resulting in strong turning and high-speed tangential motion, so as to achieve mixing effect;
(3) PLC automatic control is adopted, and the discharge butterfly valve with infrared safety device and anti-misoperation device is installed to ensure production safety.
(4) Reasonable structure, stable performance, convenient operation, no exposed screws;
4. Main techinical specifications
Model | HDJ-5 | HDJ-10 | HDJ-50 | HDJ-100 | HDJ-200 |
Barrel Volume（L） | 5 | 10 | 50 | 100 | 200 |
Max. Load Weight (kg) | 2.5 | 5 | 25 | 50 | 100 |
Rotary Speed (r/min) | 0-30 | 0-15 | |||
Motor Power (kw) | 0.25 | 0.37 | 1.1 | 1.5 | 2.2 |
Overall Size (mm) | 600*1000*1000 | 900*750*1100 | 1150*1400*1300 | 1250*1800*1600 | 1450*2000*1600 |
Weight (kg) | 100 | 200 | 500 | 800 | 1100 |
