Food Drink Powder Mixer Mixing Machine
(1) Advanced structure, convenient operation, safe and reliable operation, the cantilever double helix shaft has no bottom bearing, which eliminates the failure caused by the powder seepage of the bottom bearing.
(2) The mixing speed is fast and the quality is uniform. The double helix of this machine is arranged asymmetrically, one big and one small, which expands the mixing range, so it is more suitable for mixing materials with different specific gravity.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Food Drink Powder Mixer Mixing Machine
2. Main Pictures
3. Product Introduction

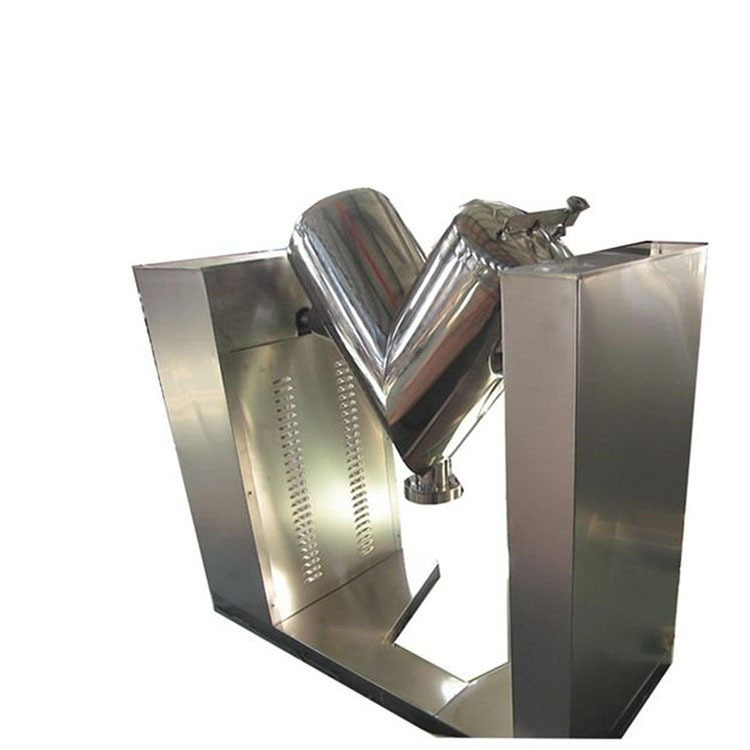

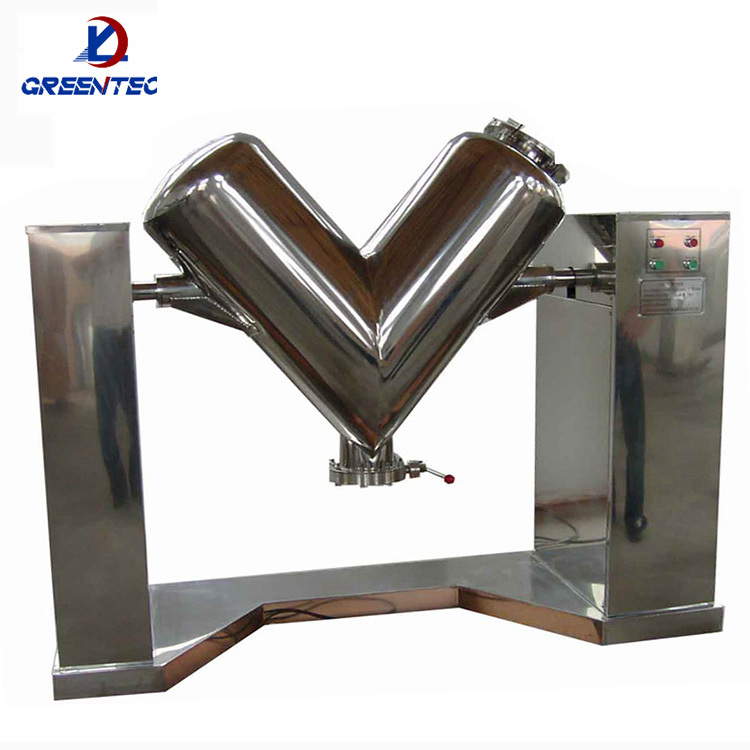

V-type mixer is a new type of high-efficiency and high-precision particle mixing equipment, which is widely used in the mixing of various powder particles in chemical industry, pesticide, dye, medicine, food, feed, petroleum, metallurgy and mining industries.
4. Features
(1) The energy-saving effect is remarkable, and the energy consumption of this machine is only one tenth of that of the drum type V-type mixer.
(2) The abrasion and pressure feeding of granular materials are slight, and there is no overheating reaction to the mixing of heat-sensitive materials.
(3) The mixed preparation is stable without stratification and segregation.
(4) The machine is sealed and dust-free, easy to operate, easy to maintain, and has a long service life. In addition, according to user requirements, the cone can be made into a pressure vessel for pressurization or vacuum operation.
(5) The self-transmission and revolution of the machine are completed by a set of motor and cycloidal needle output reducer.
5. Specifications
Model | V-100 | V-500 | V-1000 | V-2000 |
Total capacity(m³） | 0.1 | 0.5 | 1 | 2 |
Max. Loading capacity(L) | 40 | 200 | 400 | 800 |
Motor power(kw) | 1.1 | 1.5 | 3 | 5.5 |
Rotating speed(r/min) | 15 | 15 | 12 | 10 |
Overall size(mm) | 1900*700*1190 | 2500*900*1500 | 3000*1000*1800 | 3700*1200*200 |
Weight (kg) | 180 | 560 | 1000 | 1500 |
