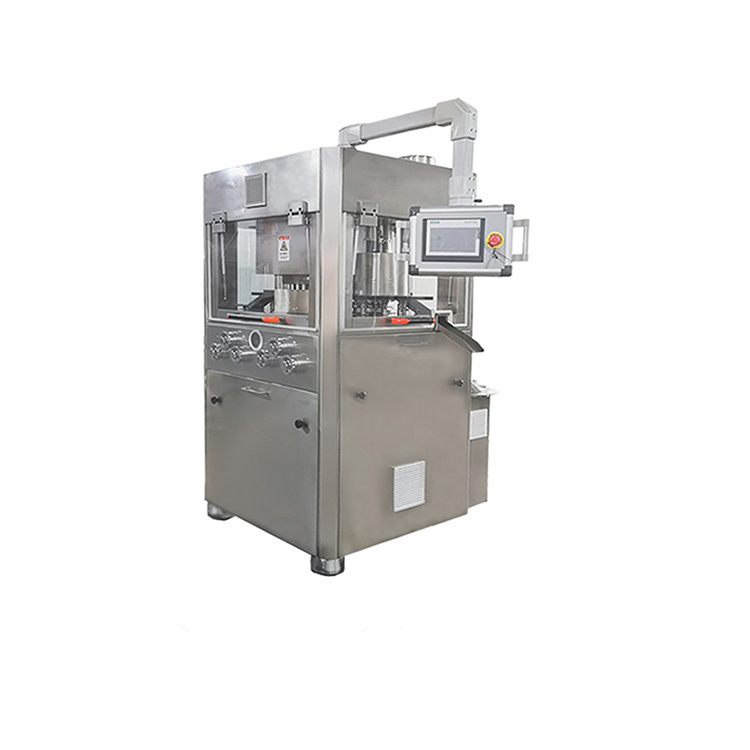

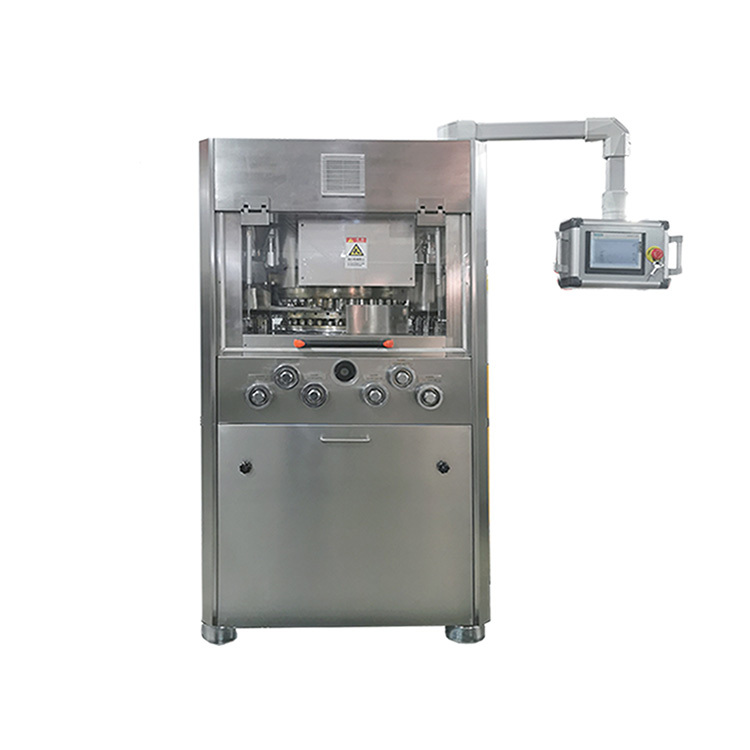

GZP500 Pharmaceutical Tablet Press Machine
1.PLC control, with automatic protection function (overpressure, overload, emergency stop).
2.Man-machine interface, easy to operate.
3.Double pre-pressure, main pressure pressure system.
4.Equipped with self-lubricating system.
5.Double forced feeding system.
6.The tablet press complies with GMP standards.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 100 Set/Sets per year
Details
1. Features
(1) The maximum pressure of this machine is high, and the pre-compression device is set at the same time, which prolongs the compression time and makes the tablet quality more in line with the requirements.
(2) The rotary table has high speed and double-sided tablet pressing, which meets the requirements of mass production in pharmaceutical factories.
2. Main Technical Data
Product No. | GZP500-23 | GZP500-35 | GZP500-55 |

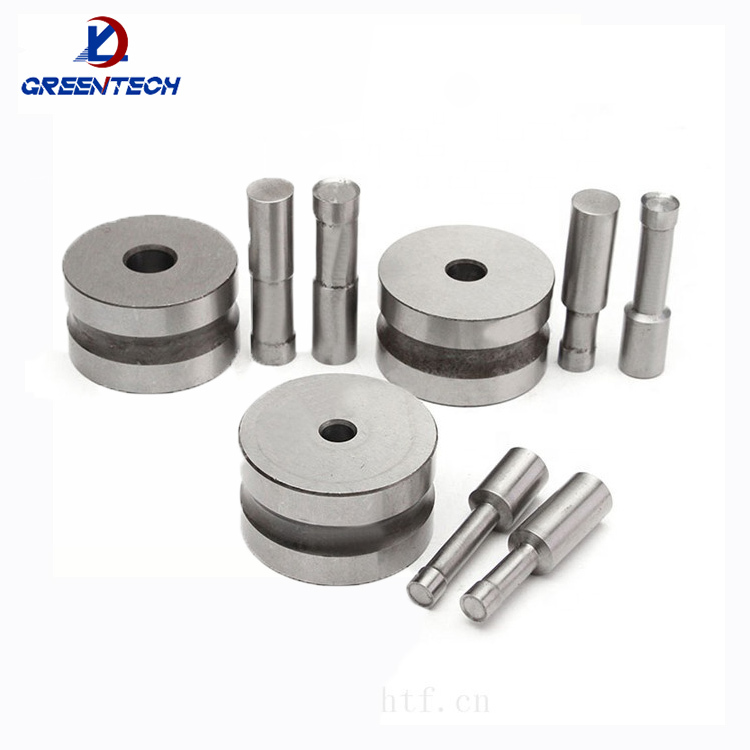

Quantity of Punch & Die (set) | 23 | 35 | 55 |
Main Pre-pressure (kn) | 40 | ||
Max. Pressure (kn) | 100 | ||
Max. Dia. of Tablet (mm) | 35 | 25 | 13 |
Max. Thickness of Tablet (mm) | 15 | 8 | 8 |
Max. Depth of Filling (mm) | 32 | 18 | 18 |
Rotation Speed (r/min) | 0-20 | 0-30 | 0-30 |
Production Capacity (pcs/h) | 27600 | 126000 | 198000 |
Voltage (v/hz) | 380/50 | ||
Motor Power (kw) | 11 | 7.5 | 7.5 |
Outside Size (mm) | 1290*1200*1900 | ||
Weight (kg) | 3500 | ||
3. Product Introduction
(1) A pressure sensor is installed on the upper pressure wheel, and the average working pressure of the tablet can be accurately displayed through the amplifier and the display screen; at the same time, the maximum working pressure can be set.
(2) When the working pressure exceeds the set value, the machine will automatically stop in an emergency to play a protective role .
(3) The main pressure, pre-compression and filling adjustment part adopts displacement sensors.
(4) Through the adjustment of the 6 front handwheels, the main compression tablet thickness, pre-compression tablet thickness and filling depth can be clearly displayed on the display screen, which is convenient for timely adjusting the thickness and weight of the tablet.
(5) The lubricating part of the equipment adopts automatic lubricating systems such as electric lubricating pumps and metering parts to supply oil to the parts with relative frictional movement, upper and lower guide rails, pressure wheels, punches and turntable holes can be displayed on the touch screen in time according to actual work needs.
(6) Adjust the frequency and time of lubrication on the screen to obtain the best lubrication effect, reduce noise and prolong the life of parts.
