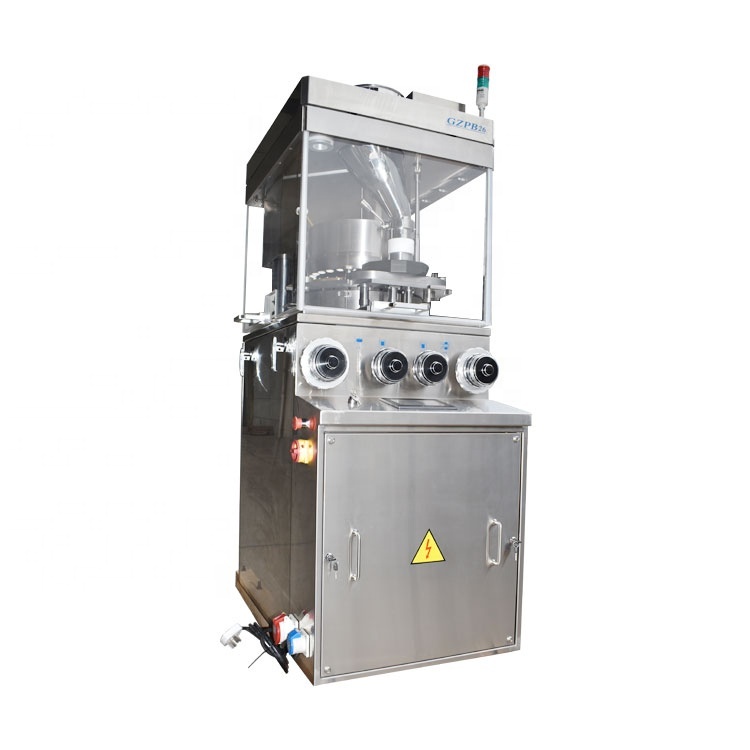

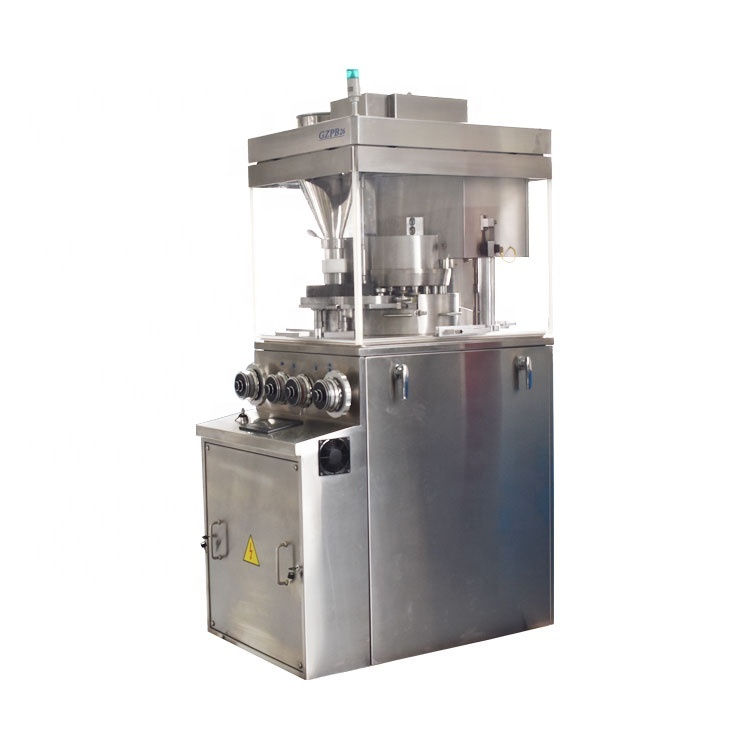

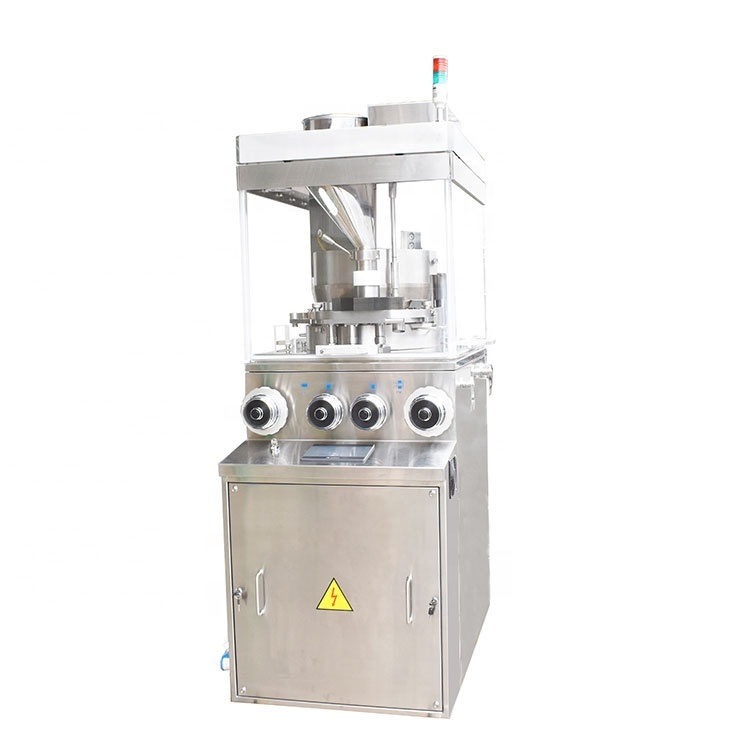

Powerful Pill Press Machine GZPK-370
1.The automatic lubricating system is adopted to fully lubricate the pressure roller, track and punch to prolong the service life and reduce wear and tear.
2.Equipped with a variety of safety protection devices (emergency stop, overpressure, sticking protection, material level detection, door and window protection, etc.).
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Optional CFR211 electronic signature and data export function.
2. This machine is an automatic rotary continuous tabletting machine, suitable for electronics, food, chemical, daily necessities, pharmaceuticals and other industries.
3. It is a professional equipment for continuously pressing various powder or granular raw materials. The machine has a wide range of applications and is suitable for pressing many types of tablets, such as: medicine tablets, milk tablets, calcium tablets, effervescent tablets and other hard-to-form tablets.
Main Technical Data
Product No. | GZPK370-40 |
Quantity of Punch & Die (set) | 40 |
Tooling Type | bb |
Main Pre-pressure (kn) | 20 |
Max. Pressure (kn) | 100 |
Max. Dia. of Tablet (mm) | 13 |
Max. Thickness of Tablet (mm) | 10 |
Max. Depth of Filling (mm) | 20 |
Middle Die Diameter (mm) | 19 |
Punch diameter (mm) | 24 |
Rotation Speed (r/min) | 110 |
Production Capacity (pcs/h) | 264000 |
Voltage (v/hz) | 380/50 |
Motor Power (kw) | 7.5 |
Outside Size (mm) | 820×1100×1750 |
Weight (kg) | 1600 |
