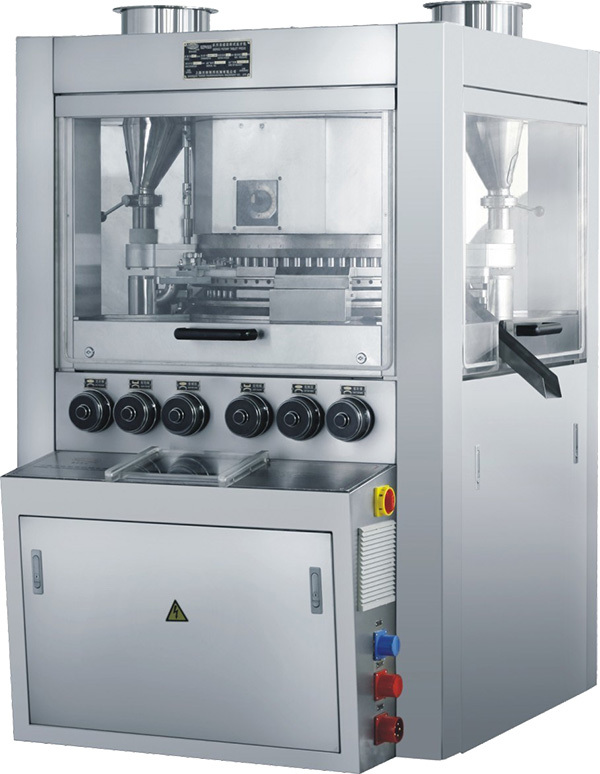

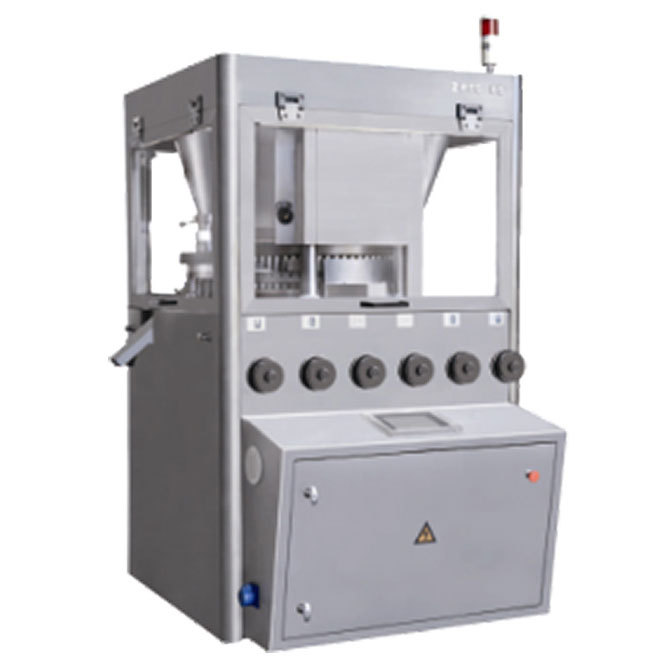

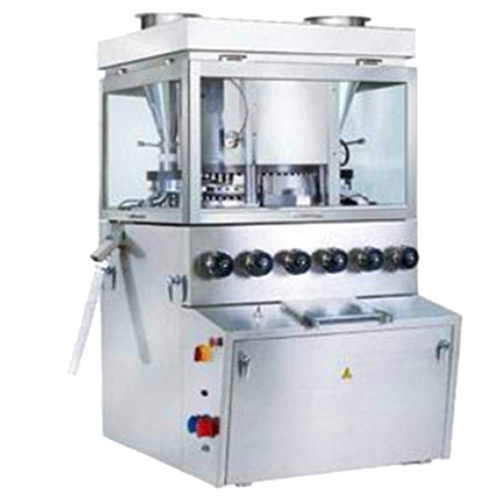

GZPK-620 Hot Sale Automatic Tablet Making Machine
1.This equipment is a double-discharge high-speed rotary tablet press machine.
2.The machine adopts the structure design of double forced feeding and double tablet discharge.
3.The machine has an output of up to 580,000 pieces/hour.
4.The performance of the equipment is stable, the machine runs smoothly and the noise is low.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. The advanced automatic control system is adopted, designed according to industrial grade, and the key components are selected from international famous brands to ensure the reliability and stability of the electrical control system.
2. The entire production process can be accurately monitored to ensure the stability and reliability of the machine in operation.
3. It has the function of automatic control of tablet weight, and the function of waste tablet identification and automatic rejection.
Main Technical Specifications
Model Data | GZPK620-45 | GZPK620-55 | GZPK620-65 | |
No. of stations | 45 | 55 | 65 | |
Production Capacity (pcs/h) | 400, 000 | 490, 000 | 580, 000 | |
Max. filling depth | 20mm | 16mm | ||
Main pressure | 100KN | |||
Pre-pressure | 16KN | |||
Max. Thickness of Tablet (mm) | 1～8mm | |||
Wafer Diameter Range | 25mm | 16mm | 13mm | |
Long edge range of abnormals | ＜25mm | ＜17mm | ＜14mm | |
tablet weight difference | ±3% | |||
working noise | ≤80dB | |||
total power | 11KW | |||
Equipment Dimensions | 1400×1500×1900 | |||
Equipment net weight | 3300 kg | |||
