HLSG Wet Mixer And Granulator High Speed Mixing Granulator
Applied in industries such as pharmaceutical industry, chemical industry as well as food industry etc. More exact steps shown as follow: mixing of powder, granulation of powder. This machine has passed the appraisal of national new products and the certification of EU.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. HLSG Wet Mixer And Granulator High Speed Mixing Granulator

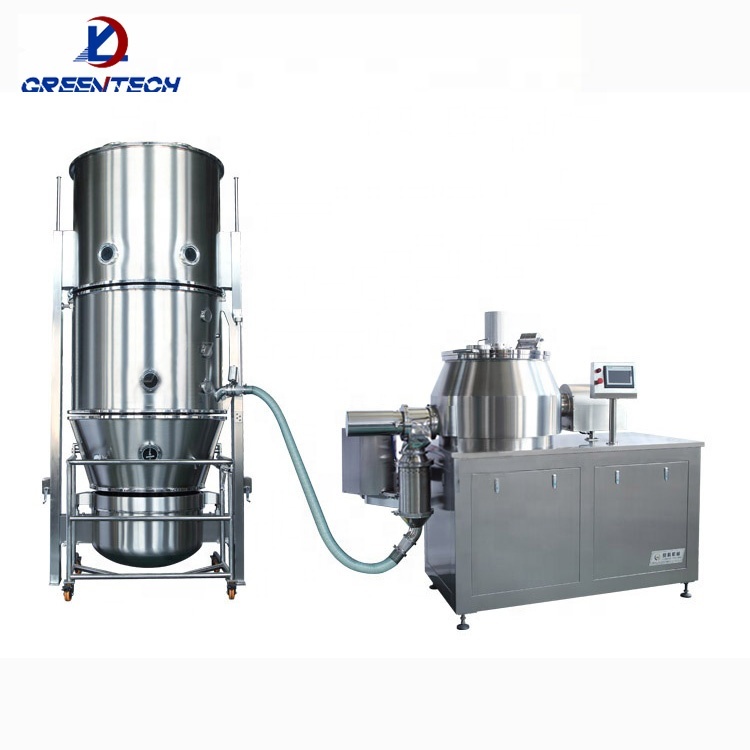

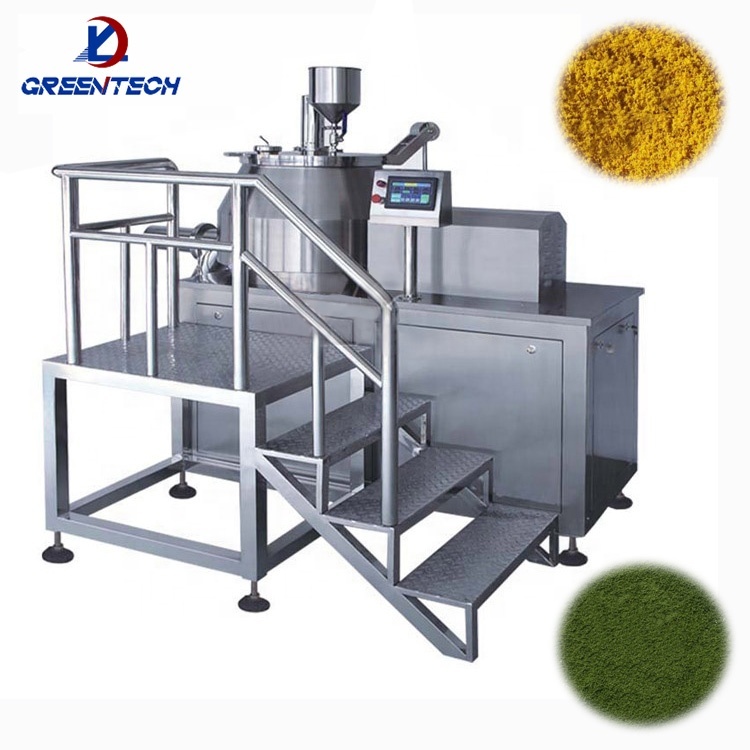

2. Main Pictures

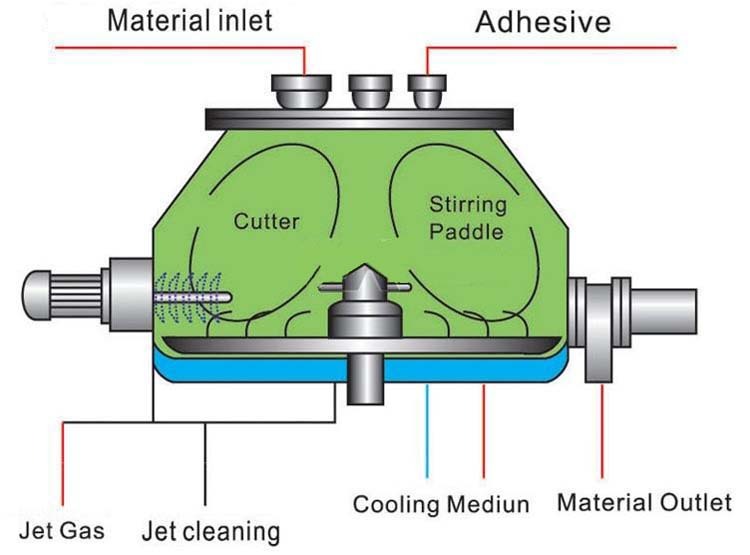

3. Working Principle
The process consists of two programs including mixing and granulating.
(1) Powder metrical can be charged into the material pan from the conical hopper and continue to rotate in the container under the action of mixing blade once the hoper is closed.
(2) In the mean while, all materials grow up the shape of liquid bridge under continuous effects of conical wall.
(3) Under the action of extrusion, friction as well as crumb by blade and conical tank wall, all material is gradually turn for loosen.
(4) At last , while opening the hoper outlet, waterish particles are pushed off under the centrifugal effects of blade.
4. Features
(1) The formation of these soft particles does not depend on the forced extrusion effect.
(2) These small and uniform particles are mainly formed after continuous cutting in a liquid-like state. (3) In short, this machine can realize mutual conversion between different materials.
5. Main Technical Specifications
Model | 50 | 100 | 200 |
Volume（L） | 50 | 100 | 200 |
Working volume（L） | 12-36 | 25-70 | 50-150 |
Stirring motor（kw） | 5.5 | 7.5 | 15 |
Rotational speed of stirring paddle (rpm/minn） | 50-500 | 30-360 | 30-260 |
Rotational speed of cutter（kw） | 1.5 | 3 | 4 |
Rotational speed of cutter（rpm/min） | 50-3000 | ||
Height of Discharge outlet（mm） | 725 | 750 | 930 |
Overall Size（mm） | 1750*600*1620 | 2200*870*1560 | 2350*910*2100 |
Weight（kg） | 420 | 800 | 1100 |
