YK Series Swing-type Granulator
The YK oscillating granulator is used to develop wet powder or bulk dry material into required granules. The wet powder mixture is forced to pass through the sieve under the forward and reverse rotation of the rotating drum to make granules.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details

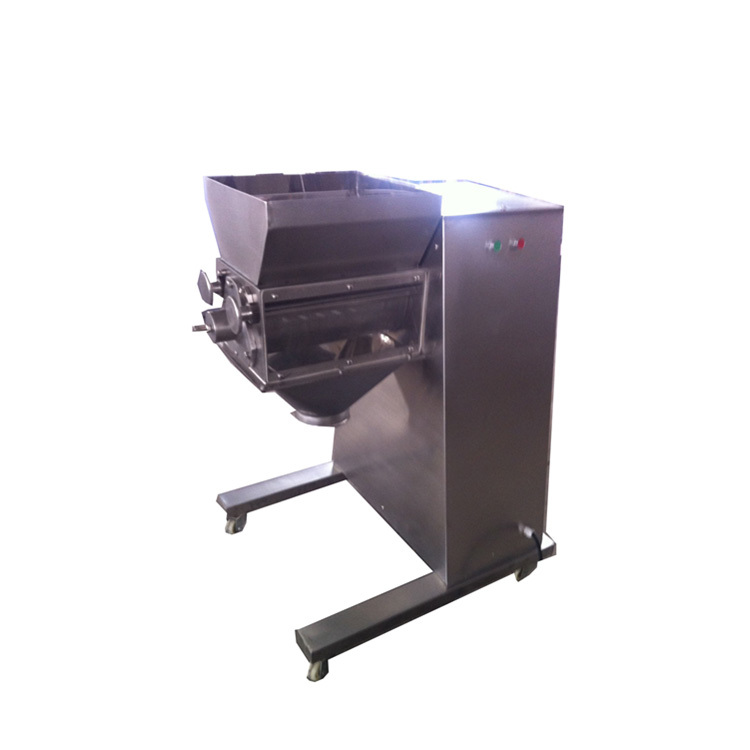

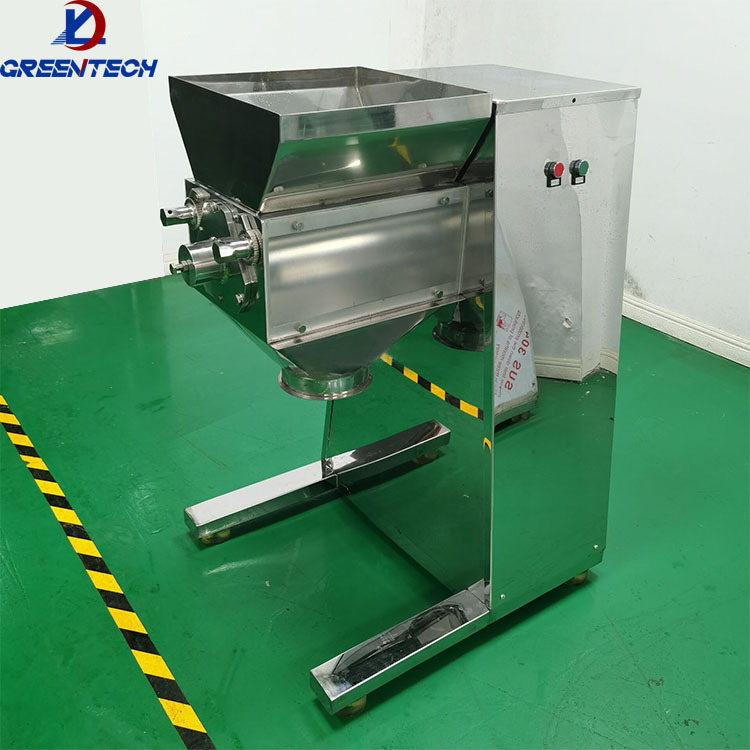

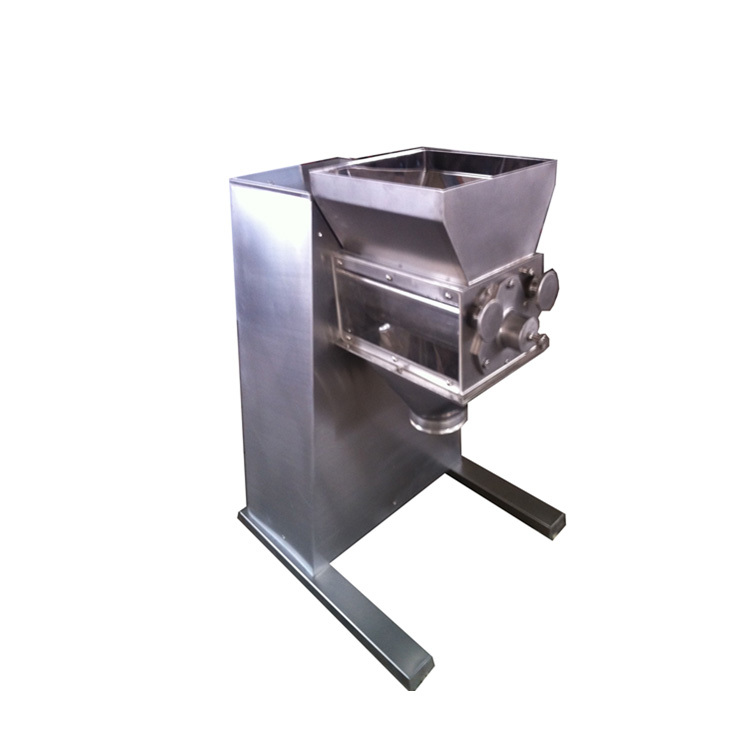

1. YK Series Swing-type Granulator
2. Main Pictures
3. Product Introduction
(1) The YK oscillating granulator is used in chemicals to grind mixed powder into granules, which can be dried for pressing tablets, and can also be crushed into agglomerates during storage or agglomerated during chemical processing.
(2) The YK oscillating granulator is used in the food industry to process candy and mixtures, malt milk and other products. In other industries such as ceramics, plastics and other mixtures become shaped particles.
4. Features
(1) The machine is strong and powerful, easy to operate, stable in operation, and has a large bucket. (2) The rotating drum is made of stainless steel, and the YK oscillating granulator ensures that the quality of the processed material is clean and does not change color.
(3) The mesh size of the mesh sieve should be prepared by the user according to the particle size requirements.
(4) The device of the YK swinging granulator is clamped by two steel pipes.
(5) It is easy to assemble and disassemble.
5. Main Technical Data
Model | YK-60 | YK-90 | YK-160 |
Dia. of Rotor | 60mm | 90mm | 160mm |
Effective Length of Rotor | 184mm | 296mm | 360mm |
Rotor Speed | 46 | 46 | 60-100r/min |
Production Capacity | Dry: 20kg Wet: 25kg | Dry: 40kg Wet:50kg | Dry: 700kg Wet: 300kg |
Motor Power | 0.37kw | 0.37kw | 2.2kw |
Overall Size | 530*400*530mm | 700*400*780mm | 910*700*1200mm |
Weight | 70kg | 90kg | 235kg |
