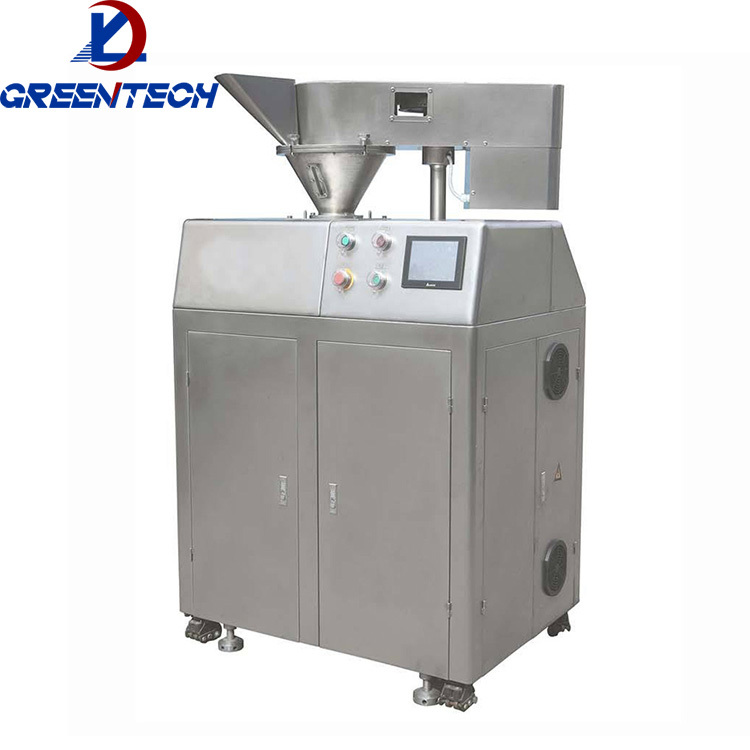

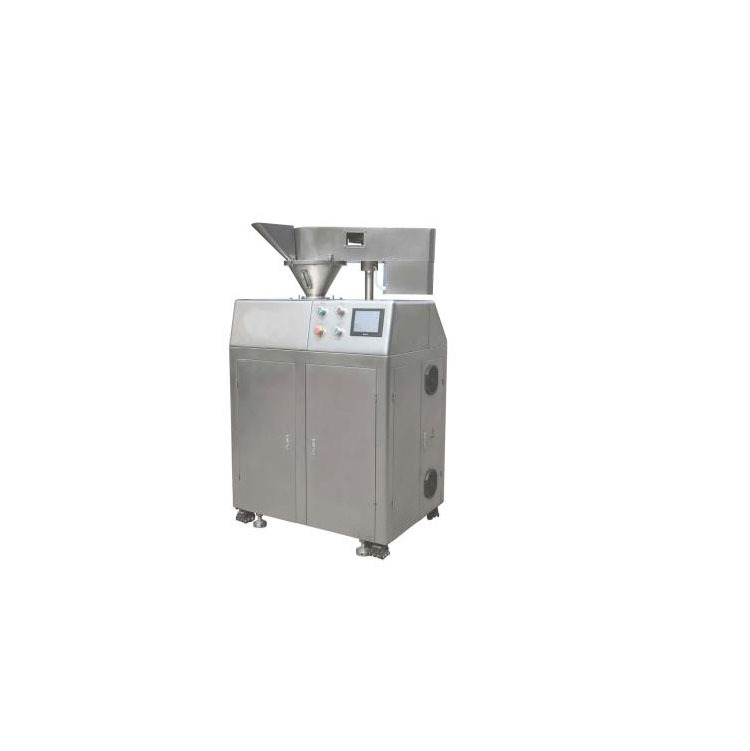

Rapid Pharmaceutical Dry Extrusion Granulator
The dry granulator mainly degasses and pre-shrinks the dry powder directly and extrudes it into thin flakes through the hydraulic pressure on the pressure roller, and then makes granules that meet the user's requirements through crushing and granulation processes.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Rapid Pharmaceutical Dry Extrusion Granulator
2. Main Pictures
3. Features
(1) The man-machine interface plus PLC control system replaces the traditional button and relay control system, reduces a lot of electrical components, reduces a lot of contacts, greatly reduces wiring, greatly reduces failures caused by bad contacts, and greatly improves the reliability of the system.
(2) It is flexible and can memorize the parameter content according to the user's needs.
(3) The operation is simple and convenient. The system has an automatic detection function, which can prompt the user when there is a fault, and is easy to maintain. There are early warning and alarm functions.
4. Product Introduction
This machine is composed of lifting mechanism, feeding device, tablet pressing device, granulating and sizing device, hydraulic system, cooling system, electric control, vacuum conveying device (can be equipped according to customer needs) and other components.
5. Main Technical Specifications
Model | GL-25 | GL-50 | GL-100 |
Capacity(kg/h) | 1-5 | 10-50 | 30-100 |
Fineness(mm) | 0.3-2 | 0.3-2 | 0.3-2 |
Power(kw) | 1.67 | 6 | 10 |
Overall Size(mm) | 650*550*1250 | 1500*850*1650 | 1500*1050*2070 |
Weight(kg) | 250 | 200 | 2500 |
