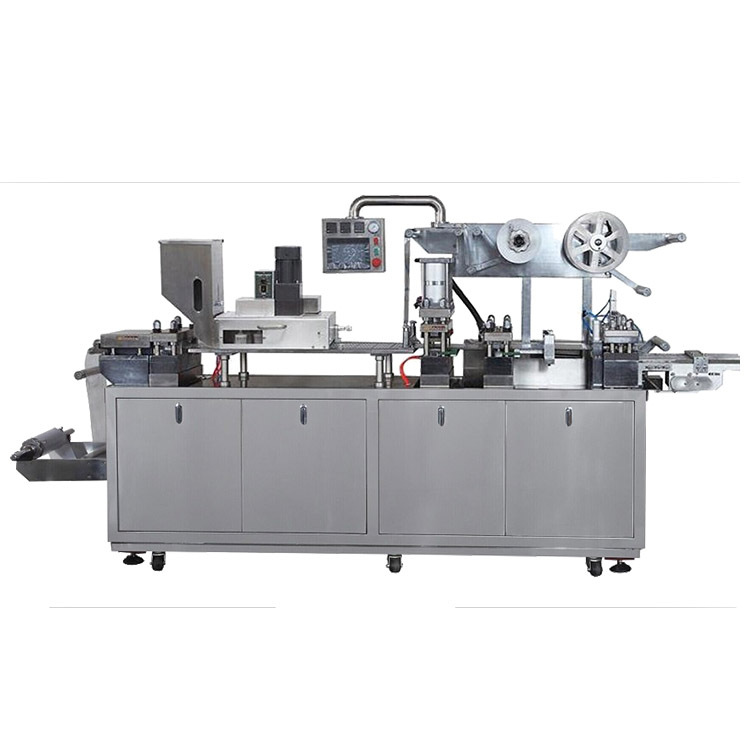

Multifunctional Blister Packing Machine
(1) Adjustable stroke;
(2) Contact positive pressure blow molding mold and cold stamping mold;
(3) Mold positioning and groove positioning;
(4) Convenient mold replacement;
(5) Accurate plate alignment.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Multifunctional Blister Packing Machine
2. Main Pictures
3. Features
(1) Automatic blanking, which can involve various molds and blanking devices according to user requirements.
(2) Man-machine interface, PLC programmable control, frequency conversion stepless speed regulation.
(3) Equipped with lack of grain detection, automatic waste rejection device, equipped with cursor alignment device.
(4) Servo motor traction, stepping wheel clamping operation, accurate and reliable synchronization.
(5) The cylinder is heat-sealed, and the heat-sealed mold is automatically separated when the shutdown is stopped, so that the package will not be scalded, and the service life of the machine is extended.
4. Main Technical Data
Product No. | DPP-250 |
Punch Times (time/min) | 6-50 |
Production Capacity (pcs/h) | 35000-230000 |
Largest Forming Area and Depth (mm) | 240*170*26 |
Standard Travel Route Scale (mm) | 40-160 (customized) |
Standard Version Block (mm) | 80*57 (customized) |
Air Pressure (mpa) | 0.4-0.6 |
Supply Total Power (kw) | ≥0.3 |
Main Motor Power (kw) | 6.2 |
PVC Hard Tablet (mm) | 0.15-0.5*250 |
PTP Aluminum (mm) | 0.02-0.035*250 |
Dialyze Papers (mm) | 50-100g*250 |
Mould Cooling (mm) | Tap or loop water |
Overall Size (mm) | 3000*730*1600 |
