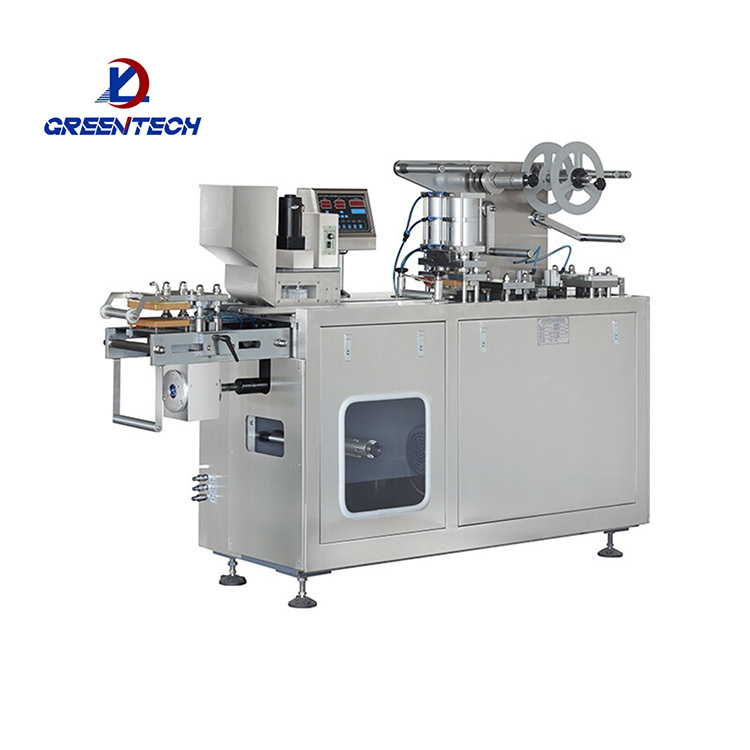

PTP Aluminum Plastic PVC Blister Packing Machine
1. It adopts the newest type high-power transmission mechanism to arrange the chain and drive the main driving shaft.
2. The errors and noises of other gear wheel transmission can be avoided.
3. Imported controlling system is adopted.
4. it can be equipped with detecting and rejection function device for number of medicines according to the user’s requirement.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. PTP Aluminum Plastic PVC Blister Packing Machine
2. Pictures
3. Features
(1) It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum material to be automatically fed and waste side to be cut automatically to guarantee the Synchronous stability of over- length distance and multi stations.
(2) It can be optional equipped with photocell correction device, imported stepper motor traction and image- character register to optimize packing grade.
(3) The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.
4. Specifications
Model | DPP-80 |
Punch frequency | 10-33times/min |
Production capacity | 1980plates/hour |
Max. Forming area & Depth | 105x70(standard depth ≦15mm), Max. Depth 25mm( As adjusted） |
Standard Stroke range | 30-80mm(can be designed as per user’s required) |
Standard plate size | 80x57mm (can be designed as per user’s required) |
Air pressure | 0.4-0.6Mpa |
Compressed air required | Air compressor≥0.3m3/min |
Total power supply | 220V 50Hz 2.4Kw |
Main motor | 0.75Kw |
PVC hard Film | 0.15-0.5*110 (mm) |
PTP Aluminum film | 0.02-0.035*110 (mm) |
Cold forming foil(CFF) | 0.14-0.16 110(mm) |
Dialysis Paper | 50-100g*110（mm） |
Mould cooling | Tap water or Recycling water |
Overall Dimension | 1840x590x1100 (mm)(LxWxH) |
Weight | Net 425kg Gross weight: 475kg |
Noise index | <75dBA |
5. Product Introduction

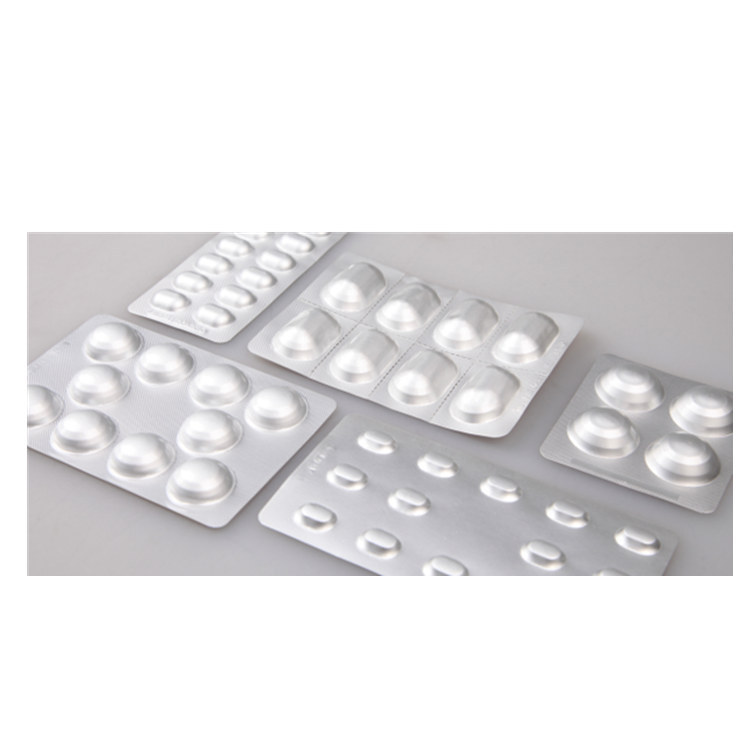

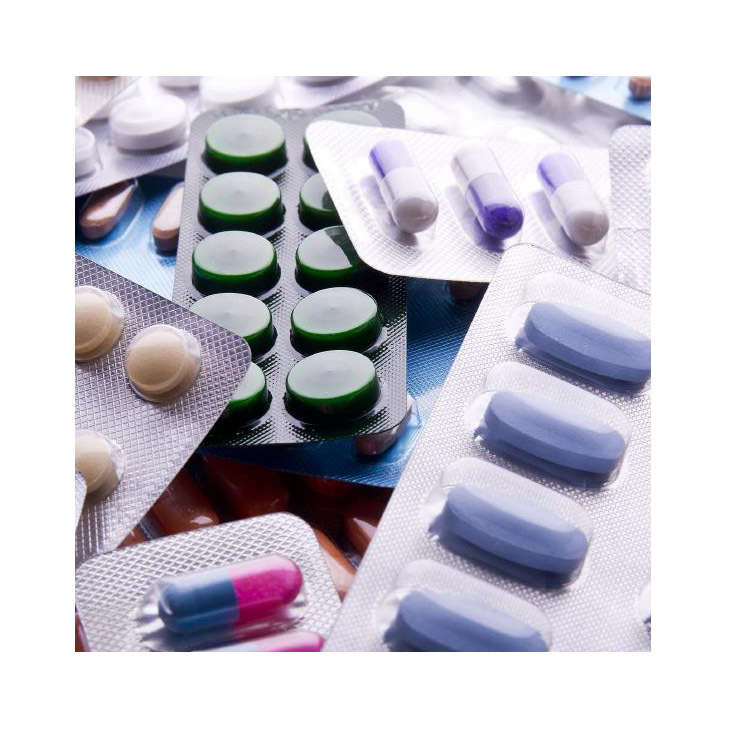

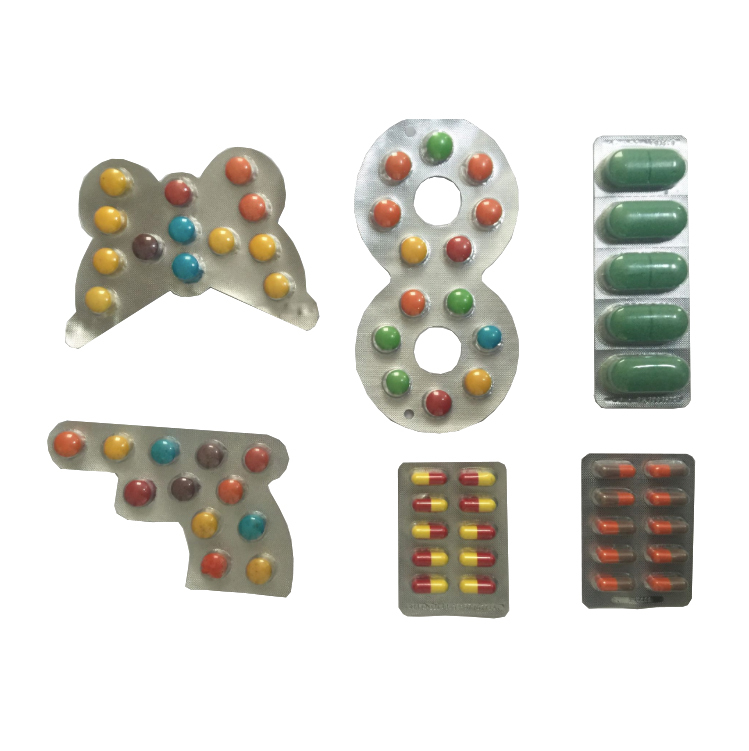

(1) Blister packaging is a typical packaging form of solid preparations.
(2) It is a small-dose plate packaging suitable for patients.
(3) It has the advantages of light weight, easy to carry, good sealing, no mixing of drugs, and no waste when taking it.
(4) It has become the mainstream of solid preparation packaging and has been widely used in the field of medicine.
(5)The equipment used for blister packaging is called blister packaging machine. Because most of the materials used are plastic film and aluminum foil, it is also called aluminum-plastic blister packaging machine.
