Paper Card Blister Packing Machine
(1) Packaging capacity: aluminum plastic 15-50 cycles/min
(2) Power consumption: aluminum 3KW aluminum plastic 5.5KW
(3) Production Process: all materials and processing of the machine refer to the "World Health Organization Pharmaceutical Production and Quality Management Regulations" and comply with the relevant provisions of GMP regulations.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Paper Card Blister Packing Machine

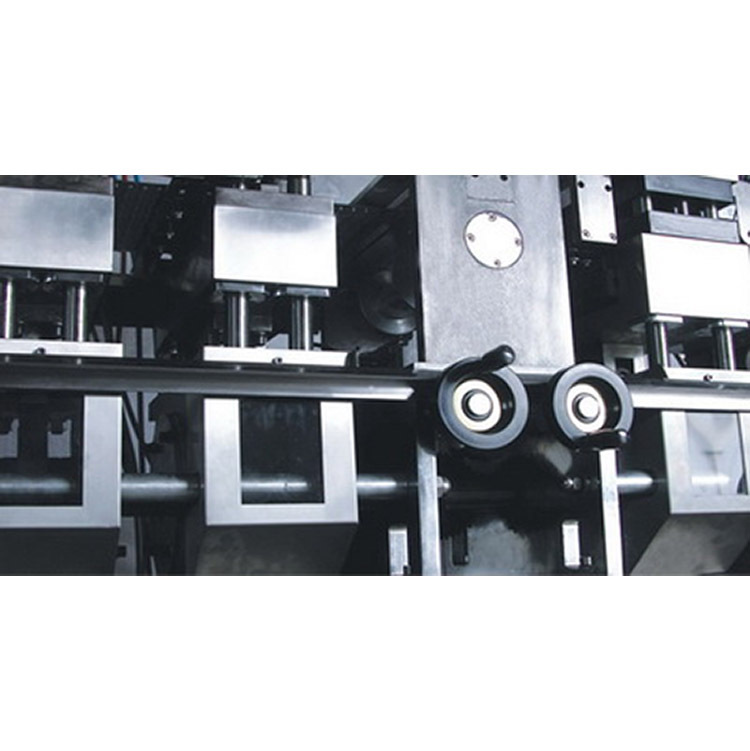

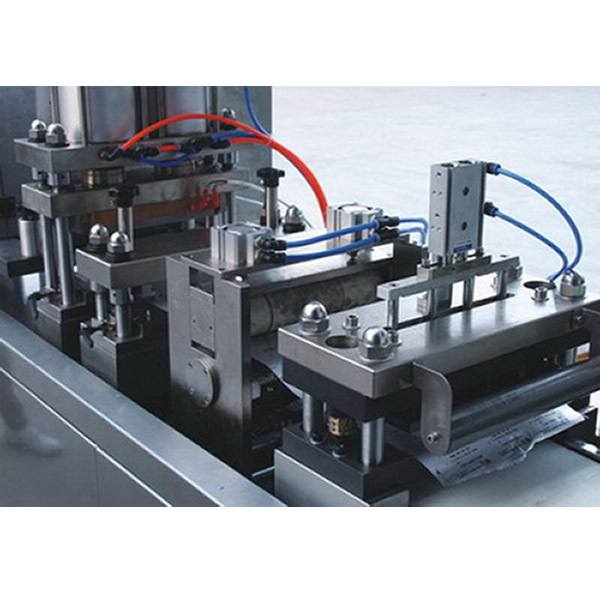

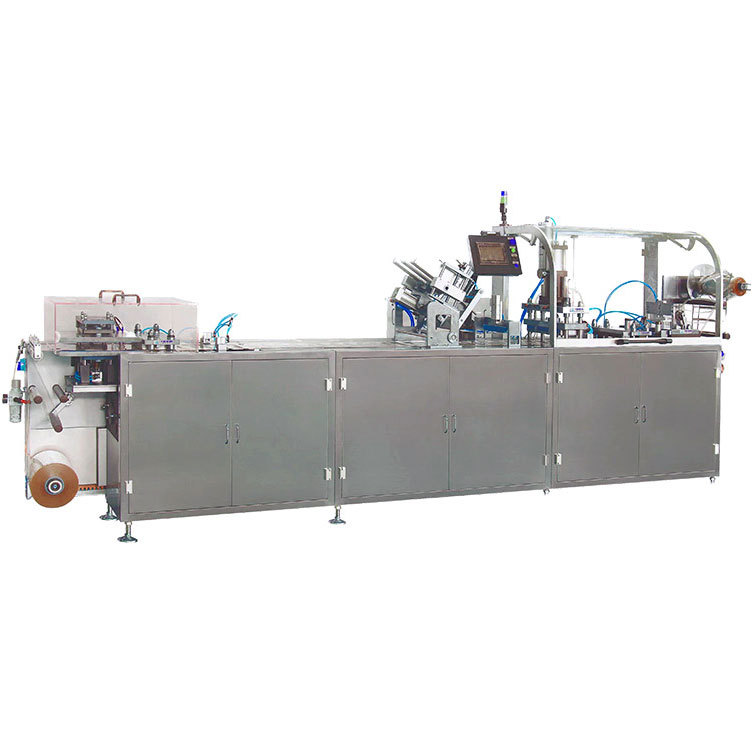

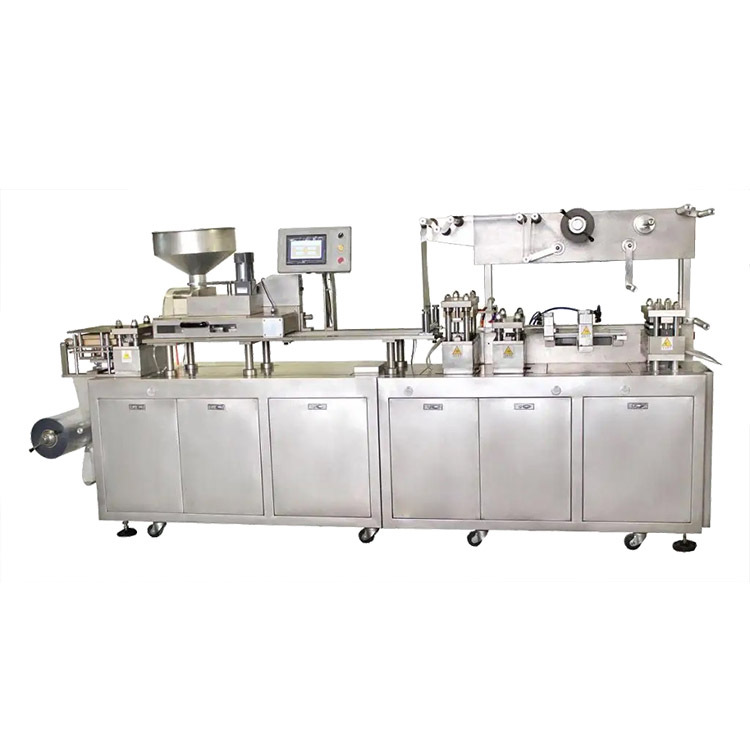

2. Pictures
3. Equipment Introduction
(1) main engine: carbon steel aluminum alloy
(2) shell:SUS304 stainless steel
(3)feeder: SUS316 stainless steel
(4) Control mode: man-machine integration industrial computer automatic (PLC) control system
(5) Production standard: National pharmaceutical machine YYTO-2008 blister packaging machine manufacturing standard, in line with national GMP standard
(6) Equipment certification: Passed ISO9001: 2000 quality system certification, CE certification
4. Signs
(1) Each air pipe has an independent number
(2) Each water pipe has an independent number
(3) Each set of molds is engraved with a permanent and independent number
(4) All electrical components and wires of the whole machine have independent numbers
(5) Each cylinder has its own serial number
5. Specifications
Equipment technical parameters | |
device name | Aluminum plastic blister packaging machine |
Model | DPP-350DI |
main technical parameters | Cutting frequency: 25-50times/min(aluminum-aluminum) 15-25times/min(aluminum-plastic) |
Material spec | PTP aluminum foil ：width 360mm thickness 0.02-0.03mm forming material：width 360mm Thickness 0.50-0.15mm |
Stroke adjusting area | Stroke area：30-120mm position trim：cutting：0-100mm hole-punching：0-50mm forming：0-100mm sealing:fixed reference point |
Packing range | Western medicine, traditional Chinese medicine pills, herbal medicine pills, veterinary medicine, sugar-coated tablets, plain tablets, various candies, food, electronic components, etc. |
Main function | Variable frequency steplessspeed regulation; blister packing;safety testing |
Max. forming depth（mm) | 28mm |
Max. Forming area（mm2) | 360×140×28mm |
power | 380V 50Hz |
Total power（kW） | 5.7kW |
Air-compress（MPa) | 0.5-0.7MPa |
Compressed-air consumption（m3/h) | ≥ 0.22 |
Coolong water consumption（m3/h) | Circulating cooling water |
noise（dB) | 75dB |
Dimension（L×W×Hmm) | 4200×750×1660mm |
Weight（kg) | 1500kg |
Motor Fm capability | 20-50Hz |
