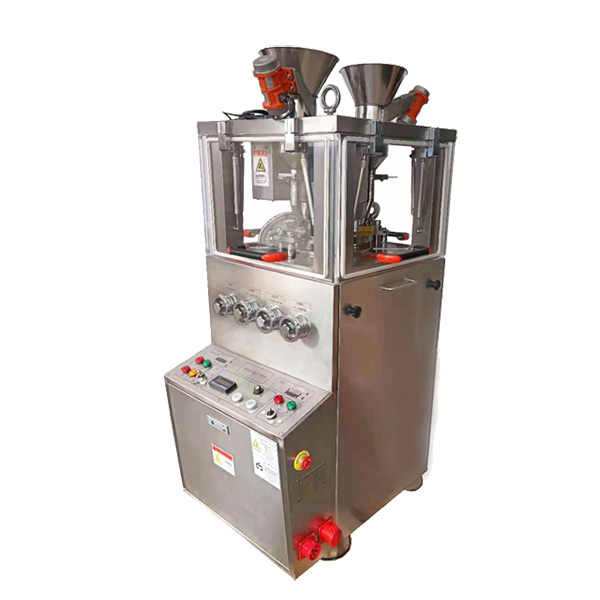

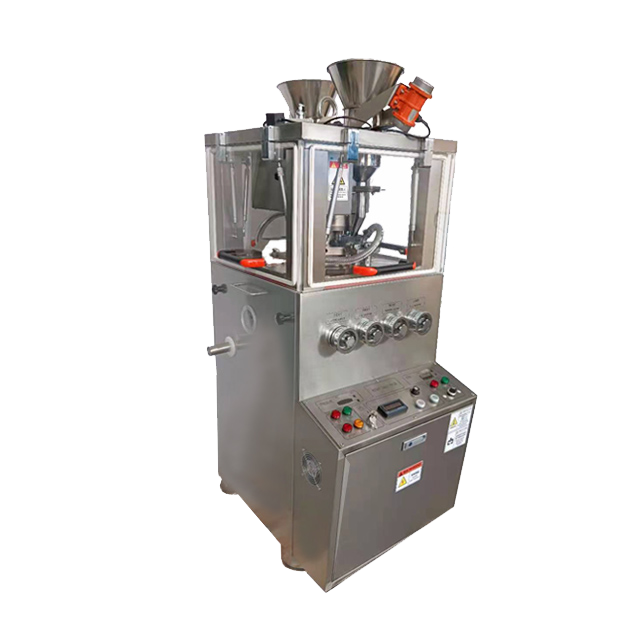

Two Layer Dishwasher Tablet Making Machine
(1) This machine is designed for pressing round tablets from various kinds of granular materials. It is primary machine to fit batch production of tablets.
(2) During operation, the speed of the turret rotation, the depth of the filling material and the thickness of the tablets can be adjusted.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 10 sets per month
Details
1. Two Layer Dishwasher Tablet Making Machine

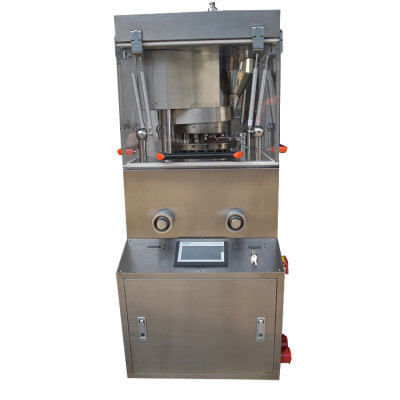

2. Main Pictures
3. FEATURES
(1) The mechanical buffer unit will prevent punches and apparatus from overload damage.
(2) A powder suction unit is attached to take in the residual powder can be eliminated and the collected powder material can be reused.
(3) With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
4. SPECIFICATION
Model Parameter | ZPT226-8 |
Punch pin number | 8 |
Punch diameter | 25.35mm |
Die diameter | 38.1mm |
Production range ( tablets/h) | 9600 |
Rotating speed (rmp) | 0-15 |
Maximum pressure | 80KN |
First layer filling | 7mm |
Second layer filling | 0.5-8mm |
Maximum tablet diameter | Ф25mm |
Maximum abnormal axis size | ＜25mm |
Punch length | 133.6mm |
Working noise | ≤70dB |
Total power | 3KW/380V，50Hz，Three-phase five-wire system |
Bounday dimension of equipment | 890*650*1600 mm |
Net weight of equipment | 1000kg |
Remark | The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type. |
5. RANGE OF CONFIGURATION
This machine is a continuous automatic tablet press for compressing granular raw materials into tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.
6. PRODUCT DESCRIPTION
(1) It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
(2) It is equipped with overload protection device, when pressure overload, it can stop automatically.
