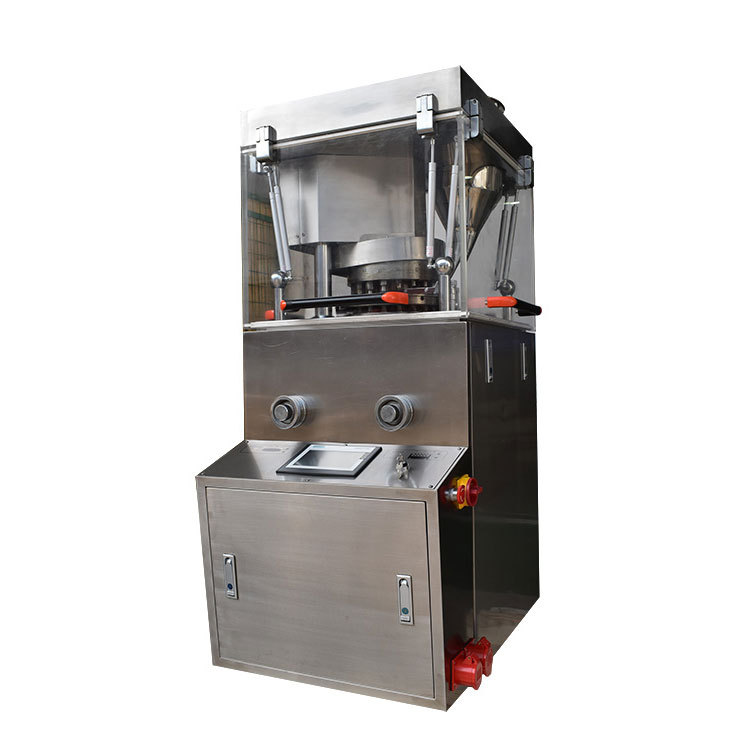

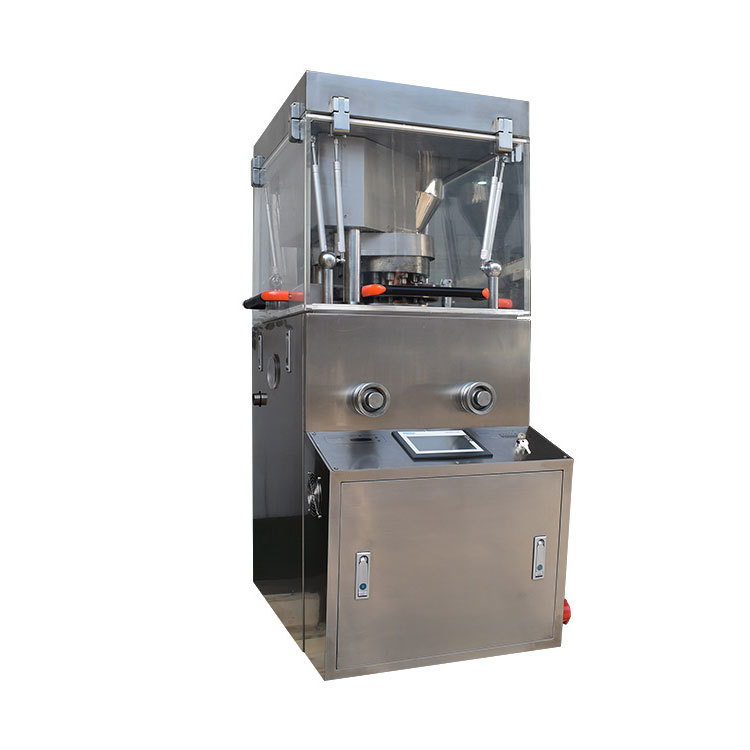

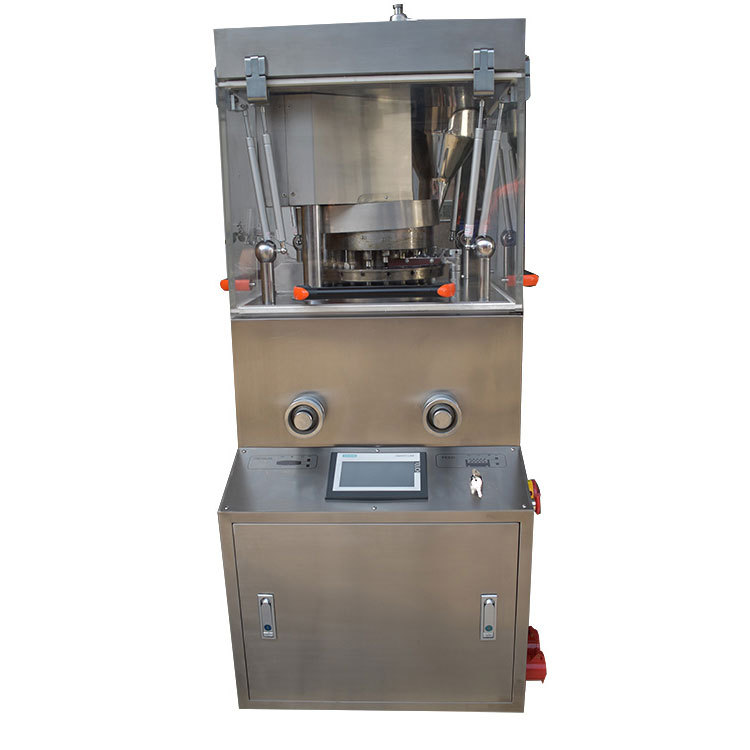

Two Layer Dishwasher Tablet Press Machine
The working environment conforms to relevant requirements of GMP specification. The two layer dishwasher tablet press machine can be used for pressing common round tablets, large tablets, abnormal tablets, special abnormal tablets, single/double-face carved tablets, cartoon tablets, etc.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 10 sets per month
Details
1. Two Layer Dishwasher Tablet Press Machine
2.
3. FEATURES
(1) Peripheral casing is closed form which is made of all stainless steel , internal mesa adopt stainless steel material, it can keep the surface glossy and prevent cross contamination and meet GMP requirement.
(2) With oil seal ring on punches, prevent oil from pollution tablet and powder leakage.
4. SPECIFICATION
Model Parameter | ZPT226-19D |
Punch pin number | 19 |
Punch diameter | 22mm |
Die diameter | 26mm |
Production range ( tablets/h) | 34,200 |
Rotating speed (rmp) | 0-30 |
Maximum pressure | 60KN |
Maximum filling depth | 15mm |
Tablet thickness range | 0.5-6mm |
Maximum tablet diameter | Ф13mm |
Maximum abnormal axis size | ＜20mm |
Punch length | 133.6mm |
Working noise | ≤70dB |
Total power | 3KW/380V，50Hz，Three-phase five-wire system |
Bounday dimension of equipment | 890*650*1600 mm |
Net weight of equipment | 1000kg |
Remark | The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type. |
5. RANGE OF CONFIGURATION
The machine is a double-pressing automatically revolving piece-pressing machine which could make grain be pressed to be round piece, be carved characters, special shapes and double color piece prescription. It is mainly used in manufacturing piece prescription for pharmaceutical industry enterprises like chemical industry, foods, electronics.
6. PRODUCT DESCRIPTION
(1) With dust seal ring on punches, avoid powder leakage from turret table.
(2) It is equipped with variable frequency speed control device for electrical control, convenient operation, steady running, it is safe and accurate.
(3) Granule size range: 12-60 meshes, good compressibility and mobility;
(4) Synthetic medicine starch tablet: the granules should be uniform and not moist; the proportion of fine powder (above 60 meshes) in the granules should not exceed one third;
(5) Traditional Chinese medicine granules: pure extract, semi-extract and raw powder granules should not be moist and should have certain mobility.
