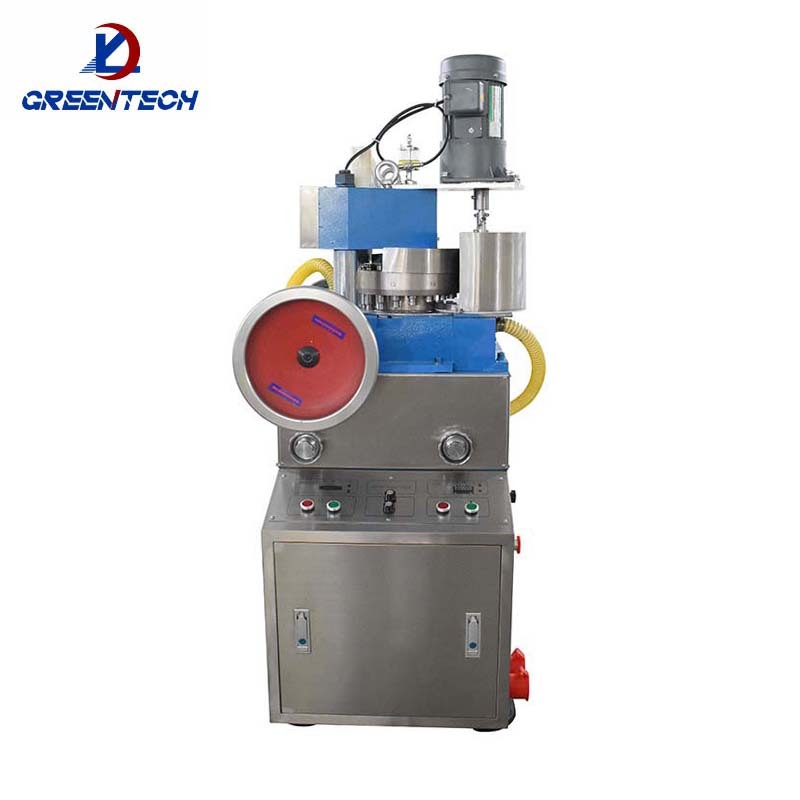

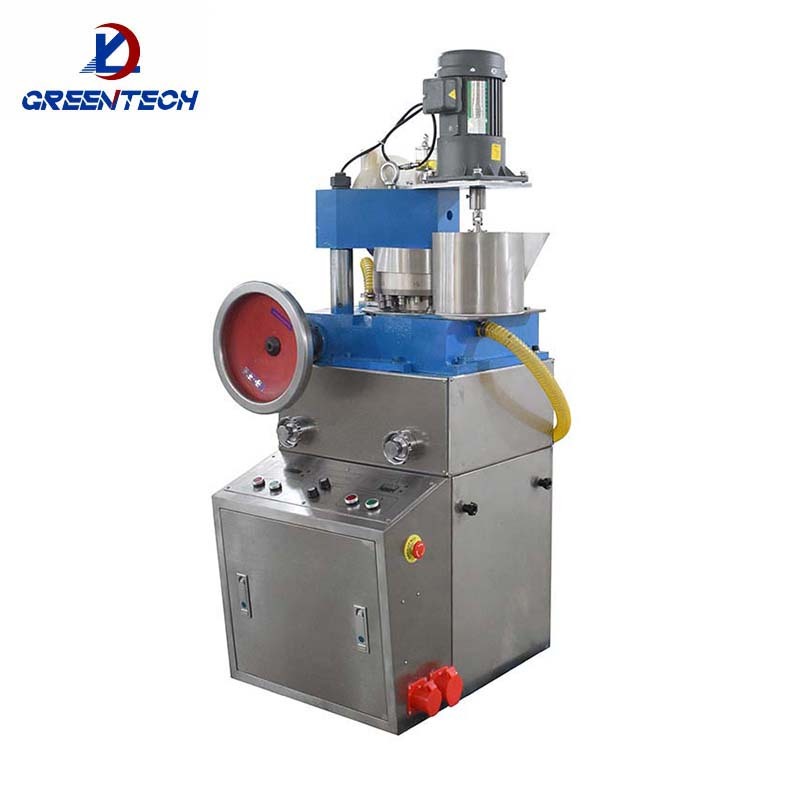

Chemical Catalyst Tablet Making Machine
(1)This machine is specially designed for pressing discs of various granular materials. It is a host suitable for mass production of tablets.
(2)During operation, the rotation speed of the turret, the depth of the filling material and the thickness of the tablet can be adjusted.
(3)The mechanical buffer device can prevent the punch and equipment from being overloaded and damaged.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Chemical Catalyst Tablet Making Machine
2. Main Pictures
3. FEATURES
(1) A powder suction device is attached to eliminate residual powder, and the collected powder material can be reused.
(2) This machine has won the high-quality product award issued by the State Pharmaceutical Administration of China.
4. SPECIFICATIONS
Product No. | ZP17II |
Quantity of Punch & Die (set) | 17 |
Max. Pressure (kn) | 60 |
Max. Dia. of Tablet (mm) | 20 |
Max. Thickness of Tablet (mm) | 6 |
Max. Depth of Filling (mm) | 15 |
Rotate Speed (r/min) | 30 |
Production Capacity (pcs/h) | 30600 |
Voltage (v/hz) | 380/50 |
Motor Power (kw) | 2.2 |
Outside Size (mm) | 880×750×1600 |
Weight (kg) | 560 |
5. RANGE OF CONFIGURATION

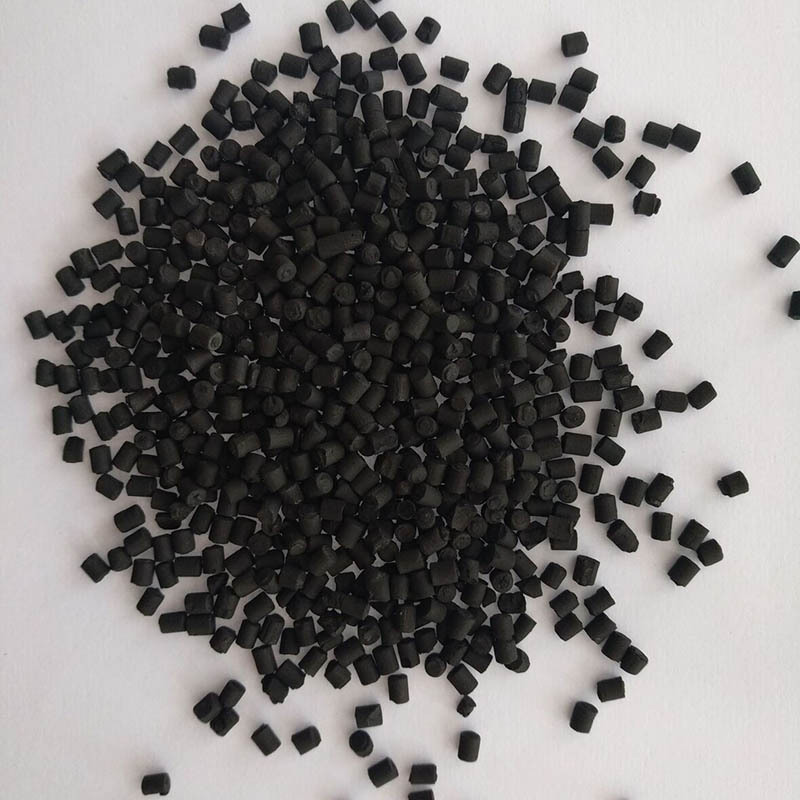

The tablet making machine can be used to press chemical catalysts. The machine can be used for mass production in chemical plants.
6. PRODUCT DESCRIPTION
This tablet press also has the advantages of low machine vibration, low noise, low energy consumption, high efficiency and accurate tablet weight. Its characteristic is that 17 punching dies are installed on the turntable, and 17 pieces can be pressed after one rotation.
Standard export wooden box, specially reinforced wooden board, safe transportation and easy unpacking.
