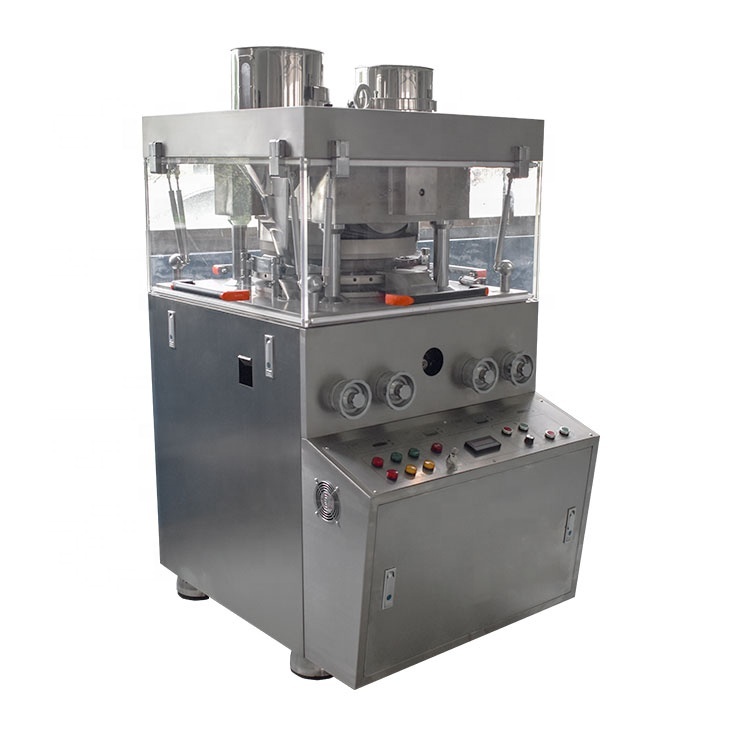

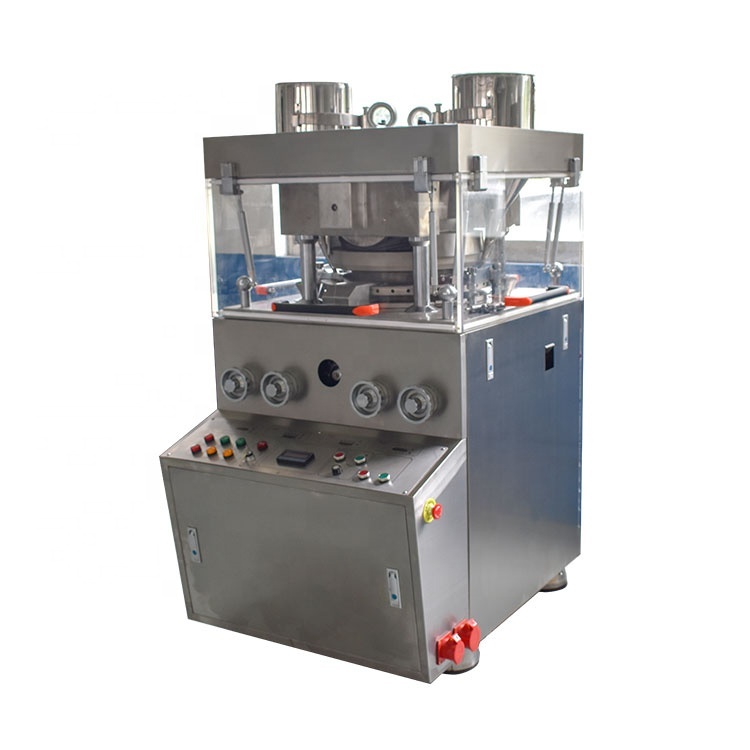

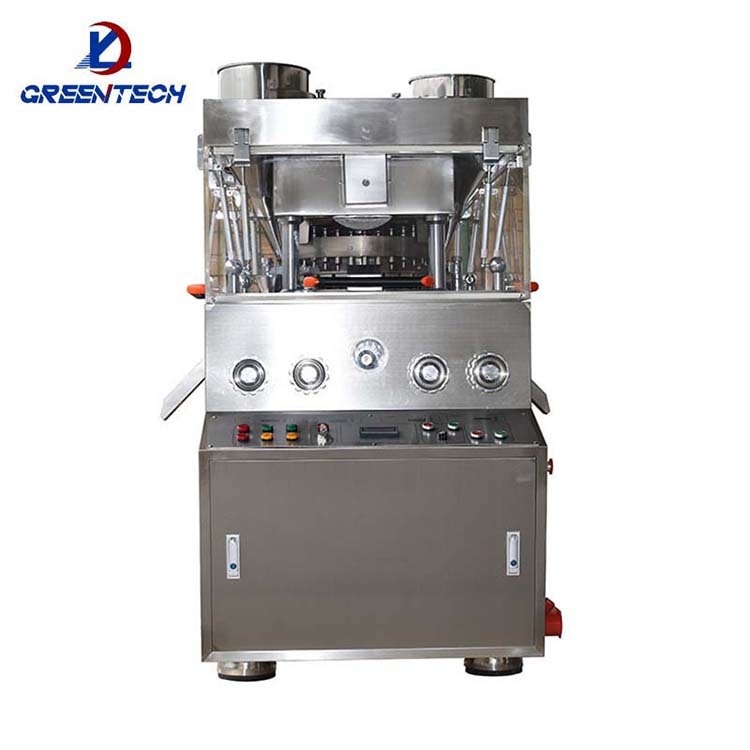

Solid Alcohol Cube Tablet Press Machine
The solid alcohol cube tablet press machine not only meets the requirements of GMP specifications, but also meets the requirements of traditional Chinese medicine or other corrosive materials for the turntable.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 200Set/Sets per year
Details
1. FEATURES
(1) The punching plate combination is assembled by the upper, middle and lower parts by hot pressing and inserting.
(2) The middle plate is made of 2Cr13 stainless steel, and after special treatment, the surface hardness can reach HRC55 or above, with good hardness, wear resistance and corrosion resistance.
(3) The upper and lower punching discs are made of QT500-7 ductile iron, which has good wear resistance and lubricity.
2. SPECIFICATIONS
Product No. | ZP420-15D |
Quantity of Punch & Die (set) | 15 |
Max. Pressure (kn) | 150 |
Max. Dia. of Tablet (mm) | 50 |
Max. Thickness of Tablet (mm) | 6 |
Max. Depth of Filling (mm) | 15 |
Rotate Speed (r/min) | 20 |
Production Capacity (pc/h) | 36000 |
Motor Power (kw) | 4 |
Overall Size (mm) | 1240×980×1650 |
Weight (kg) | 1950 |
3. PRODUCTION CAPACITY
During the running-in period of 300-500 hours, the continuous working time per day is ≤12 hours, and the long-term production output is ≤60%; after the running-in period, the continuous working time per day is ≤20 hours, and the long-term production output is ≤85%;
