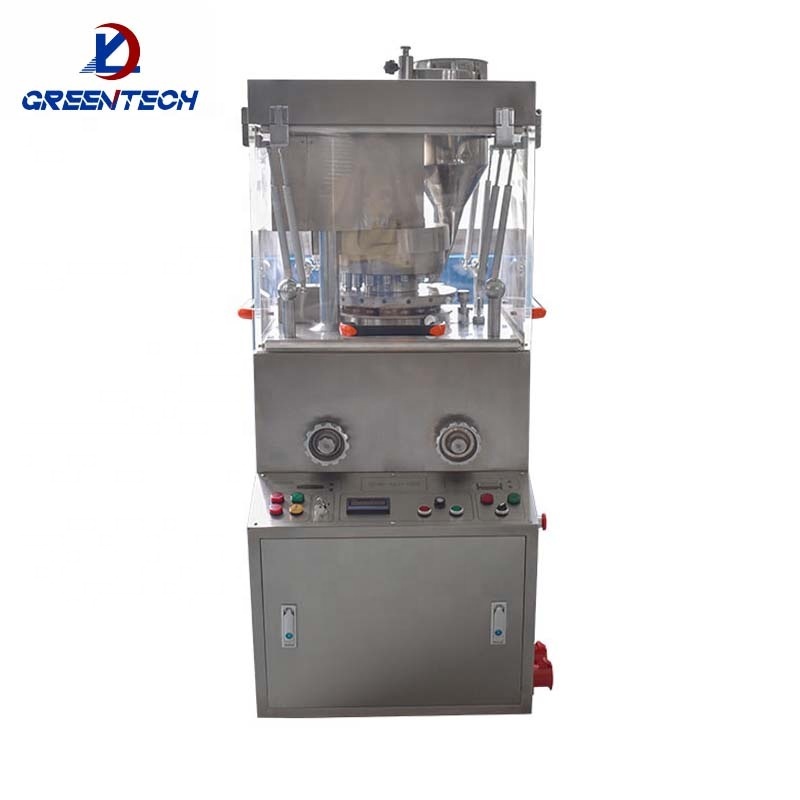

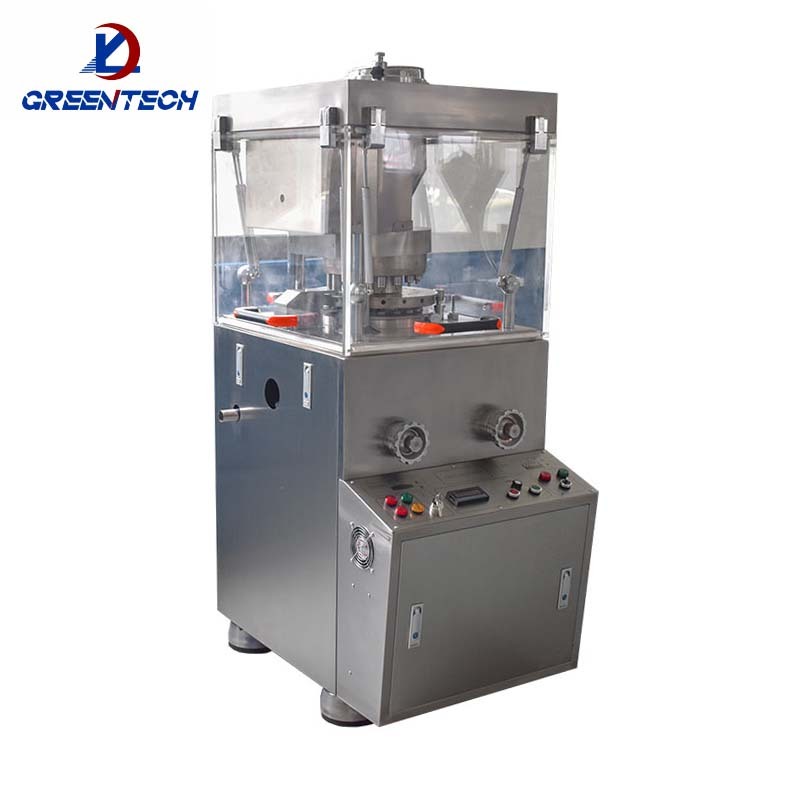

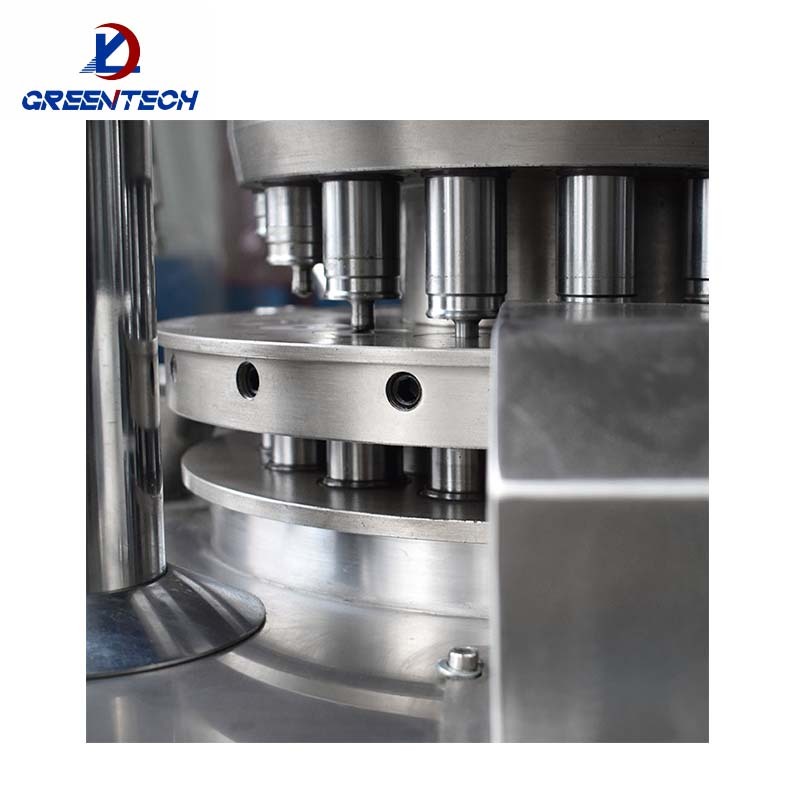

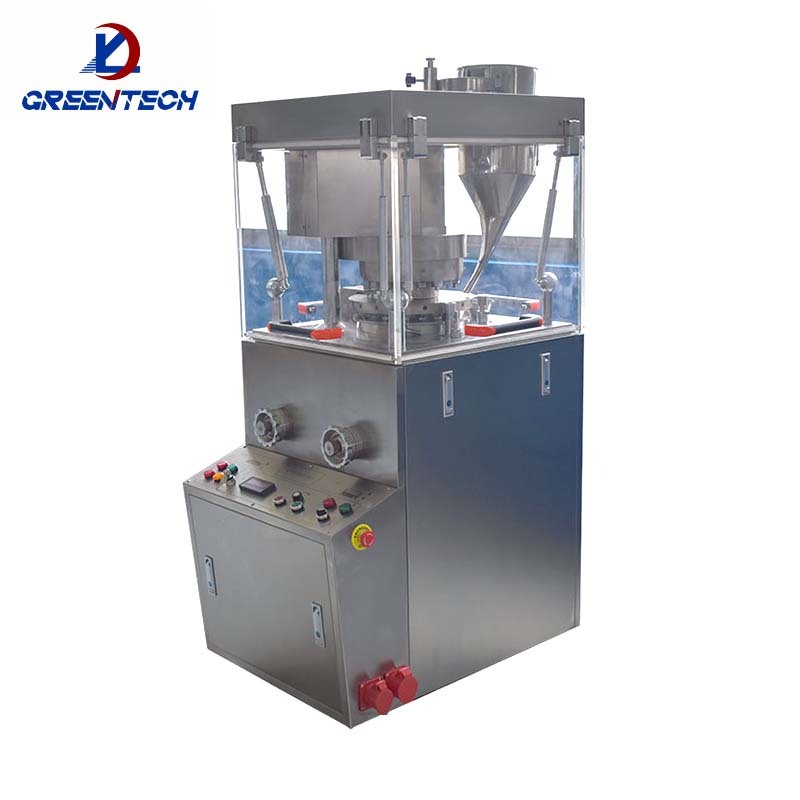

Pharmaceutical Medicine Tablet Compression Machine

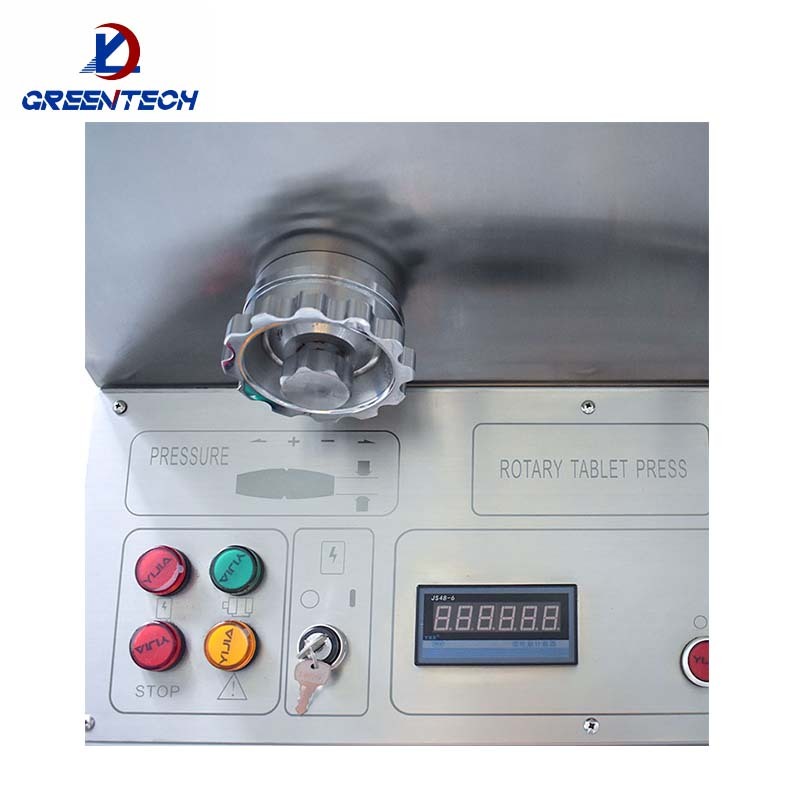

(1)Equipped with speed display and pressure overload shutdown protection.
(2)Equipped with a pre-compression device, which can remove the air in the filling material during tablet compression and increase the compression time.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Pharmaceutical Medicine Tablet Compression Machine
2. Main Pictures
3. FEATURES
(1) The outer cover is fully enclosed, and the inner table is made of stainless steel, which can keep the surface clean and prevent cross-contamination.
(2) The plexiglass protective cover is used, which can clearly observe the working conditions of the tablet, and can be fully opened, which is easy to clean and maintain.
(3) The frequency conversion speed regulation is adopted, the adjustment range is large, and the operation is convenient.
4. SPECIFICATION
Product No. | ZP17D |
Quantity of Punch & Die (set) | 17 |
Max. Pressure (kn) | 80 |
Max. Dia. of Tablet (mm) | 20 |
Max. Thickness of Tablet (mm) | 6 |
Max. Depth of Filling (mm) | 15 |
Rotation Speed (r/min) | 30 |
Production Capacity (pcs/h) | 30600 |
Voltage (v/hz) | 380/50 |
Motor Power (kw) | 3.0 |
Outside Size (mm) | 890×620×1500 |
Weight (kg) | 1000 |
5. RANGE OF CONFIGURATION
This machine is a continuous automatic tablet press for compressing granular raw materials into tablets. Mainly used in the pharmaceutical industry, but also in chemical, food, electronics, plastics, metallurgy and other industries.
6. PRODUCT DESCRIPTION
(1) The transmission system is sealed in the oil tank under the main body of the machine, which is an independent part that is safely separated, will not contaminate each other, is easy to dissipate heat and is wear-resistant.
(2) Optional forced feeding device.
