Double Rotary Dishwasher Tablet Making Machine
It can press ordinary round tablets, large-shaped tablets, special-shaped tablets, special-shaped tablets, single-sided and double-sided lettering tablets, etc.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Double Rotary Dishwasher Tablet Making Machine

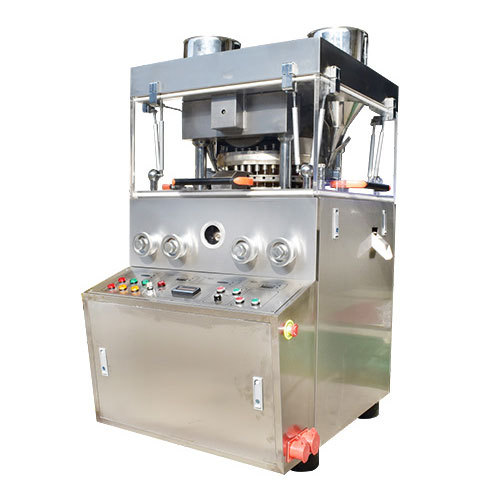

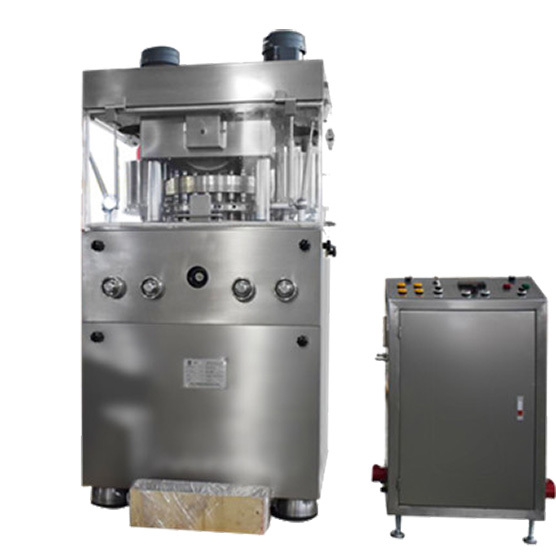

2. Man Pictures
3. FEATURES
(1) The pressure, filling, sheet thickness and speed of the tablet press can be adjusted. All adjustment handwheels are located on the front of the machine, and there are instructions on the operation panel.
(2) Simple operation and convenient maintenance.
POWER REQUIREMENTS
380V, 50Hz, three-phase five-wire system, N wire and PE wire cannot interfere with each other.
4. SPECIFICATION
Product No. | ZP420-19D |
Quantity of Punch & Die (set) | 19 |
Max. Pressure (kn) | 100 |
Max. Dia. of Tablet (mm) | 38 |
Max. Thickness of Tablet (mm) | 25 |
Max. Depth of Filling (mm) | 50 |
Rotate Speed (r/min) | 20 |
Production Capacity (pc/h) | 22800 |
Motor Power (kw) | 4 |
Overall Size (mm) | 1240×980×1650 |
Weight (kg) | 1950 |
5. Machine structure composition
The main structure of the machine is composed of bottom plate, left and right feet, front and rear frames, worm gear box, punching plate combination and control cabinet.
