Full Automatic High Production Pharmaceutical Tablet Making Machine
This machine is a new generation product of our factory, and it is a continuous and automatic rotary tablet press for pressing various kinds of different shape tablets and also plain tablets. It is mainly used in pharmaceutical industry and the chemical, food, plastics, powder, metallurgy and electronic industries.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 2000 Set/Sets per year
Details
1. Full Automatic High Production Pharmaceutical Tablet Making Machine

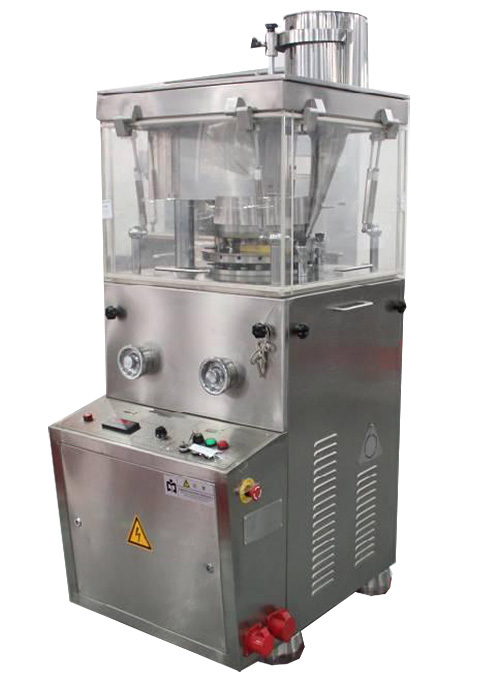

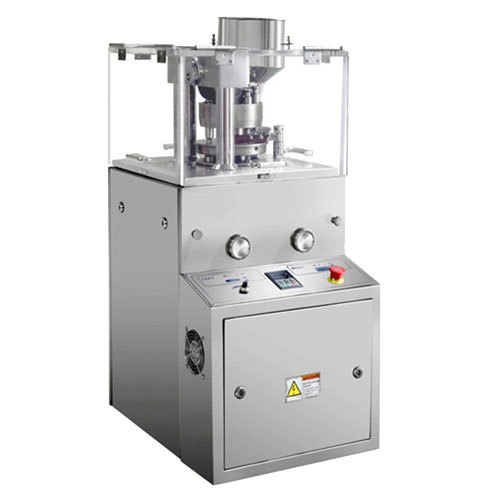

2. Main Pictures
3. FEATURES
(1) The machine is a single-press type, the outside part of the machine is fully enclosed, it is up to GMP.
(2) Install pre-pressure, main pressure.
(3) Main shaft drive, the speed is adjusted by Frequency Conversion.
(4) Advanced turbine retard.
(5) There are trust shaft, lubricate shaft on turret table.
4. SPECIFICATION
Product No. | ZP226-19D |
Quantity of Punch & Die (set) | 19 |
Max. Pressure (kn) | 60 |
Max. Dia. of Tablet (mm) | 15 |
Max. Thickness of Tablet (mm) | 6 |
Max. Depth of Filling (mm) | 15 |
Rotate Speed (r/min) | 30 |
Production Capacity (pcs/h) | 27000 |
Voltage (v/hz) | 380/50 |
Power (kw) | 3 |
Outside Size (mm) | 760×650×1400 |
Weight (kg) | 850 |
5. RANGE OF CONFIGURATION
This full automatic high production pharmaceutical tablet making machine are mainly used in food, pharmaceutical and chemical industry.
6. PRODUCT DESCRIPTION
(1) Touching type operation push botton.
(2) Protecting and reporting for motor breakdown
A. Protecting and reporting for motor breakdown
B. Protecting and reporting for exceed pressure
C. Protecting and reporting for loading and unloading lower punches
D. Emergency stopping function
