Small Easy-operated Rotary Tablet Making Machine Used In Laboratory
(1)The powder content in the particles does not exceed 10%. If it is unqualified, do not press hard, otherwise it will affect the normal operation of the machine, its service life and the loss of raw materials.
(2)Do not use raw materials that are not dry, it will make the powder stick to the punch.
(3)If the film jumps or stagnates during operation, it must not be taken by hand, so as to avoid hand injury accidents.
(4)After the production is over, wipe the machine powder and make a record of the equipment.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 2000 Set/Sets per year
Details
1. Small Easy-operated Rotary Tablet Making Machine Used In Laboratory

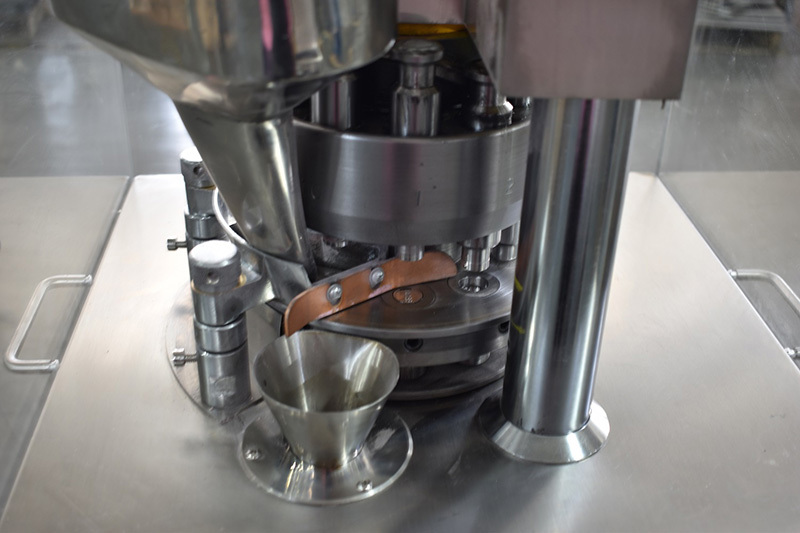

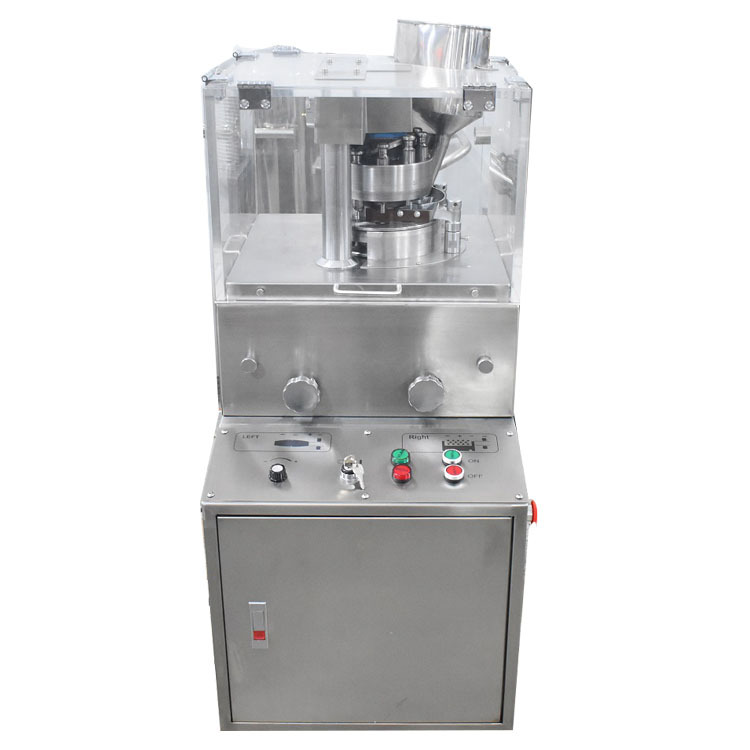

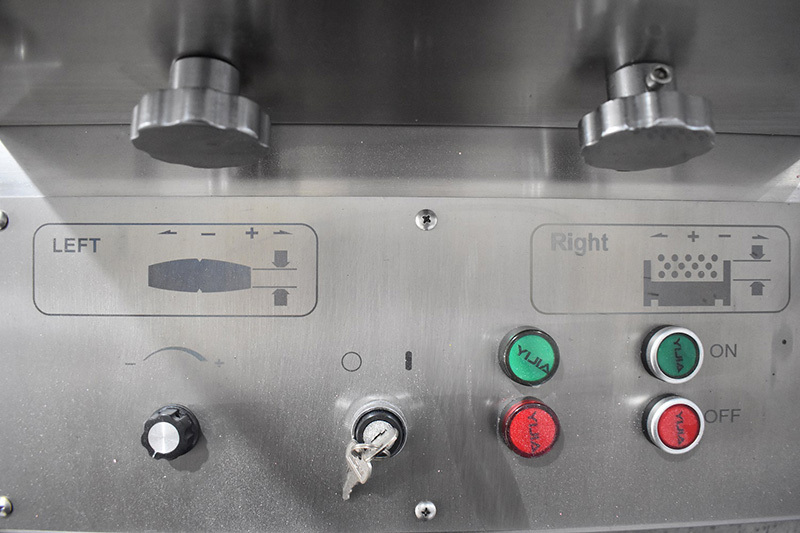

2. Main Pictures
3. FEATURES
(1) The rotary tablet press is an automatic rotating, continuous tablet press, equipped with an overload protection device, which can automatically stop when the pressure is overloaded.
(2) This kind of tablet press improves the uniformity of tablet density, reduces the phenomenon of splintering and loose tablets. The outer casing is fully enclosed and made of stainless steel.
(3) The surface of the turntable has been specially treated to keep the surface gloss and prevent cross-contamination. This machine has small vibration, low noise, low energy consumption, high efficiency and accurate tablet weight. It is a very popular tablet press.
4. SPECIFICATION
Product model | Reference data | ||
ZP5D | ZP7D | ZP9D | |
Quantity of punch&die(Set) | 5 | 7 | 9 |
Max. Pressure (KN) | 40 | ||
Max. Dia. of Tablet (Milimetre) | 13 | ||
Max. Depth of Filling (Milimetre) | 15 | ||
Max. Thickness of Tablet (Milimetre) | 6 | ||
Rotate speed (r/min) | 35 | ||
Production Capacity (pc/h) | 9600 | 134400 | 17280 |
Power (KW) | 1.1 | ||
Outside measurement (Milimetre) | 540*380*900 | ||
Weight (Kilogram) | 140 | ||
