Multilayer Tablet Pharmaceutical Medicine Press Machine
The lower part of the tablet press is equipped with a main drive system, a lubrication system and a hand wheel adjustment mechanism.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Multilayer Tablet Pharmaceutical Medicine Press Machine

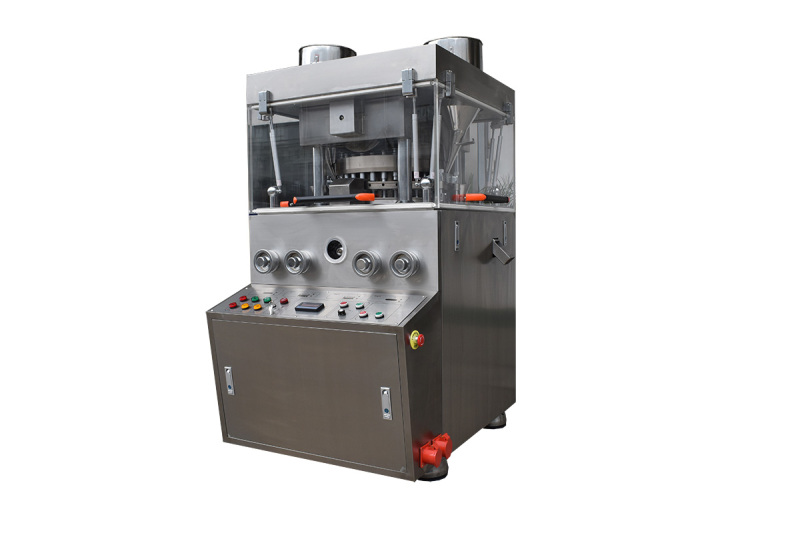

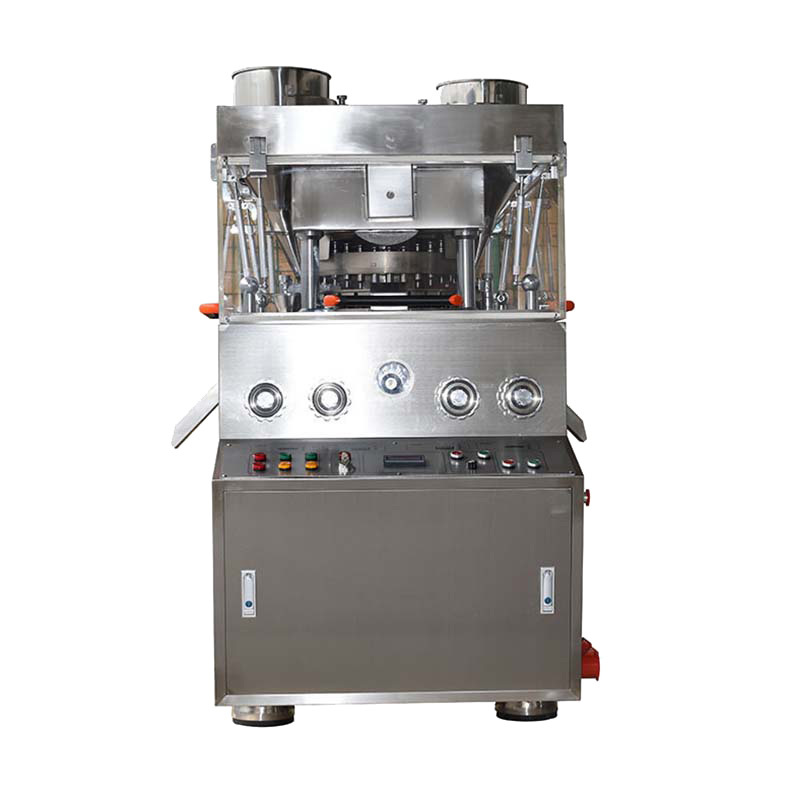

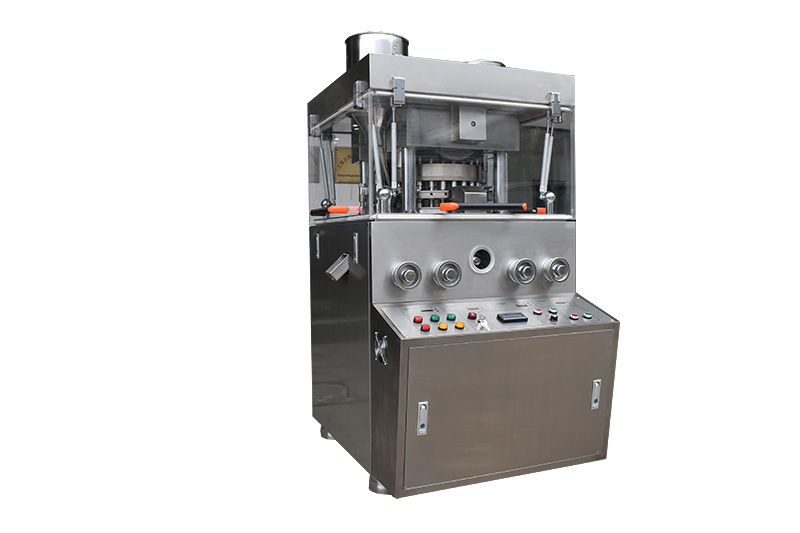

2. Main Pictures
3. FEATURES
The lower part of the machine is completely sealed by the left and right door panels, the rear door panel and the control cabinet through the sealing strip to prevent dust from contaminating the machine.
4. SPECIFICATION
Model | ZP420-55D |
No.of Stations | 55 |
Max Production Capacity（pcs/h） | 198000 |
Max Turret Speed（r/min） | 0-30 |
Max Pressure（kn） | 100 |
Max Filling Depth（mm） | 15 |
Max Tablet Thickness（mm） | 0.5～6 |
Max Tablet Diameter（mm） | Ф10 |
Motor Power（kw） | 4KW/380V，50Hz，Three-phase five-wire system |
Overall Size（mm） | 1240*850*1850 |
Machine Weight（kg） | 1750 |

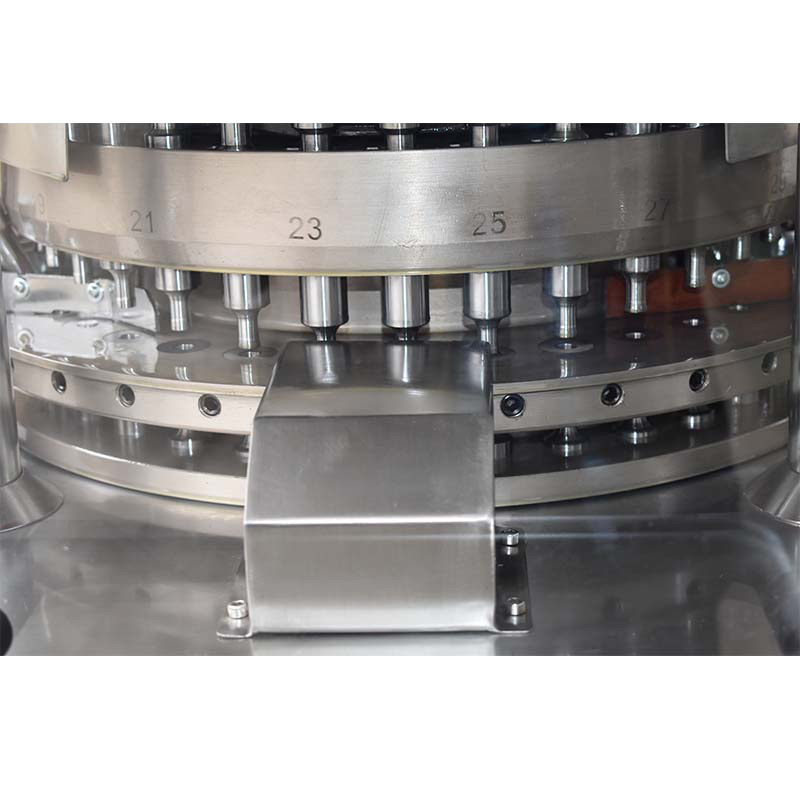

MOLDS
(1) The die adopts domestic ZPT standard punching die with oil ring.
(2) Medium die Cr12MoV alloy tool steel with good hardness and toughness.
(3) Upper and lower punches: 6CrW2Si alloy tool steel with good hardness and toughness.
(4) Moulds are 100% interchangeable.
5. PRODUCT DESCRIPTION
The work flow of the tablet press includes feeding, filling, main pressing, forming, tableting and other processes.
