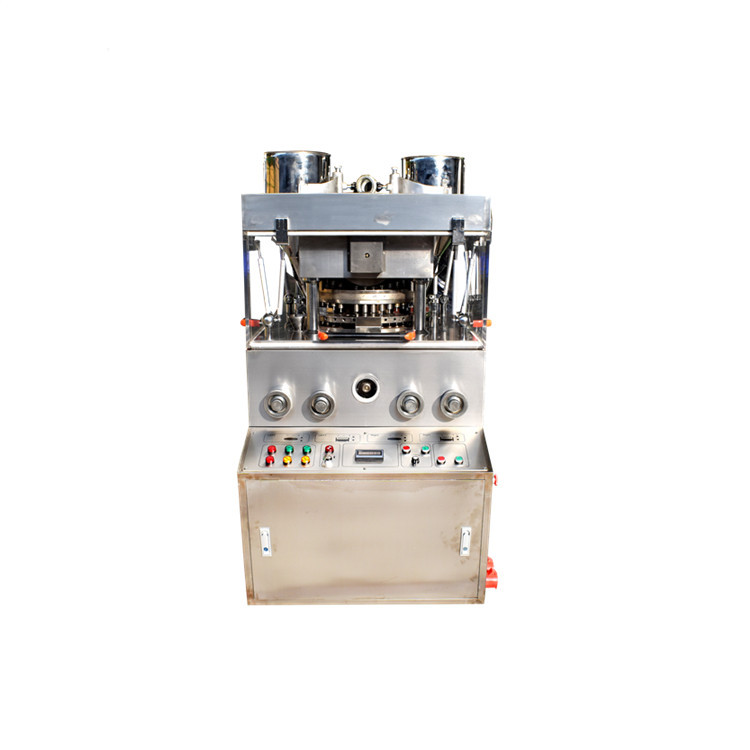

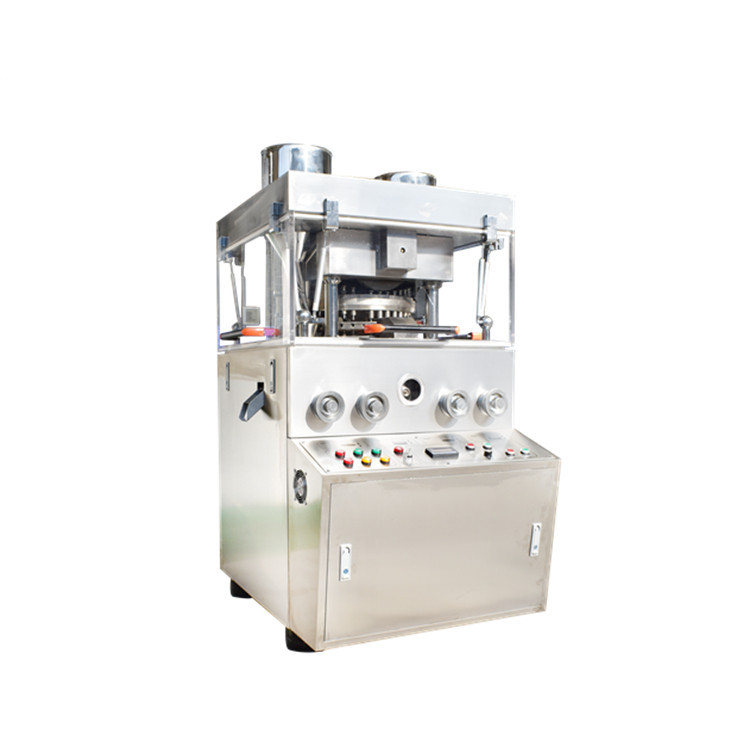

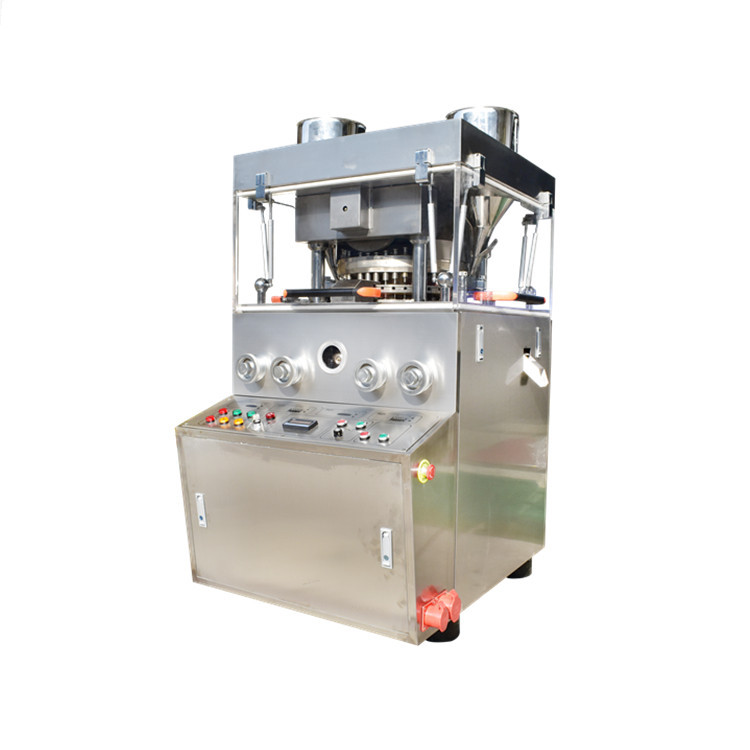

Stainless Steel Bi-layer Tablet Making Machine
(1)The shell of the machine is fully enclosed and meets the requirements of GMP.
(2)The upper part is surrounded by four windows and supported by gas springs, making the windows easy to open.
(3)The tableting chamber and the transmission part of the machine are separated by a stainless steel enclosure, which ensures the cleaning of the tableting chamber and protects the transmission parts from powder contamination, which is convenient for cleaning and maintenance.
(4)The lower half is closed by a stainless steel door.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Stainless Steel Bi-layer Tablet Making Machine
2. Main Pictures
3. FEATURES
(1) Configure the pre-pressing function to make the machine have wider applicability.
(2) The man-machine interface is TF color touch screen and PLC controller, which is easy to operate. The accuracy of the protection functions of various programs and interlocks is guaranteed, and the control system can accurately monitor the entire production process.
4. SPECIFICATION
Model | ZP420-45D |
No.of Stations | 45 |
Max Production Capacity（pcs/h） | 126000 |
Max Turret Speed（r/min） | 0-30 |
Max Pressure（kn） | 100 |
Max Filling Depth（mm） | 15 |
Max Tablet Thickness（mm） | 0.5～6 |
Max Tablet Diameter（mm） | Ф13 |
Motor Power（kw） | 4KW/380V，50Hz，Three-phase five-wire system |
Overall Size（mm） | 1240*850*1850 |
Machine Weight（kg） | 1750 |
