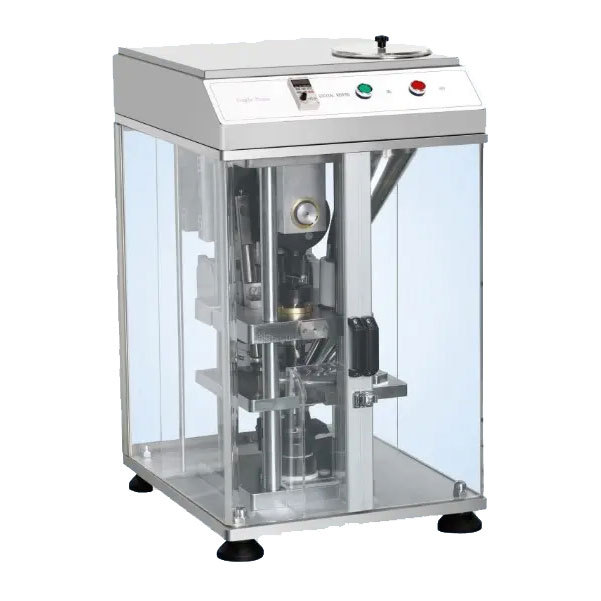

DP Series Single Punch Tablet Compression Machine For Laboratory
1. DP series single punch tablet press is a single station press that is specially designed for used in laboratory of production in small batches.
2. This small tablet press machine can press all kinds of granular materials into round tablets.
3. The machine can be equipped with one unit of punch an die with both the filling depth an thickness of the tablet adjustable.
4. The outer appearance of the machine is well designed with a compact structure.
5. This tablet compression machine features a number of advantages such as reasonable layout, small dimension and large pressure.
6. This tablet making machine in laboratory is a small size equipment that compliance with GMP requirements.
- lvyi
- Shanghai, China
- in stock
- 2000 Set/Sets per year
Details
1. DP series single punch tablet compression machine for laboratory

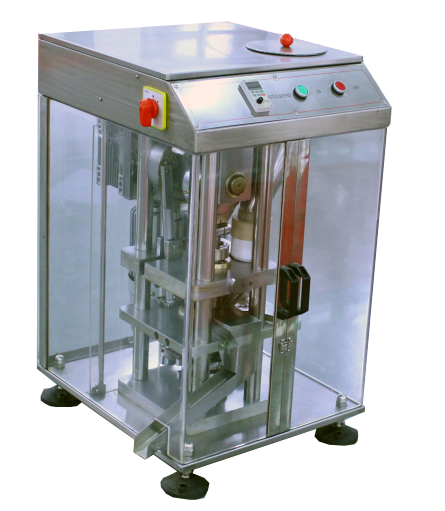

2. Main Pictures
3. FEATURES
(1) The frequency conversion speed regulating device is used for electrical speed regulation, which is easy to operate, stable in rotation, safe and accurate.
(2) The laboratory tablet press is equipped with an overload protection device, which can automatically stop when the pressure is overloaded.
(3) Wearing parts such as upper rails, feeders, hoppers, drive worms, and powder gauges are all manufactured according to standardization, generalization, and serialization.
4. SPECIFICATIONs
Product No. | DP50 |
Max. Pressure (kn) | 50 |
Max. Dia. of Tablet (mm) | 25 |
Max. Depth of Filling (mm) | 20 |
Max. Thickness of Tablet (mm) | 0.5-8 |
Production Capacity (pcs/h) | 3600 |
Motor Power (kw) | 1.5 |
Overall Size (mm) | 580*500*830 |
Weight (kg) | 150 |
5. RANGR OF CONFIGURATION
Punch dies are common in laboratory tablet presses. What's more, DP50 is widely used formetallurgy, food, chemical, and pharmacy industry.
6. PRODUCT DESCRIPTION
(1) The laboratory tablet press has a beautiful appearance, and all the controllers and operating parts are reasonably arranged.
(2) The laboratory tablet press has the advantages of high precision tableting, smooth working process, low noise and high pressure.
(3) Low loss of raw materials (the amount of experimental raw materials is only 200 grams).
