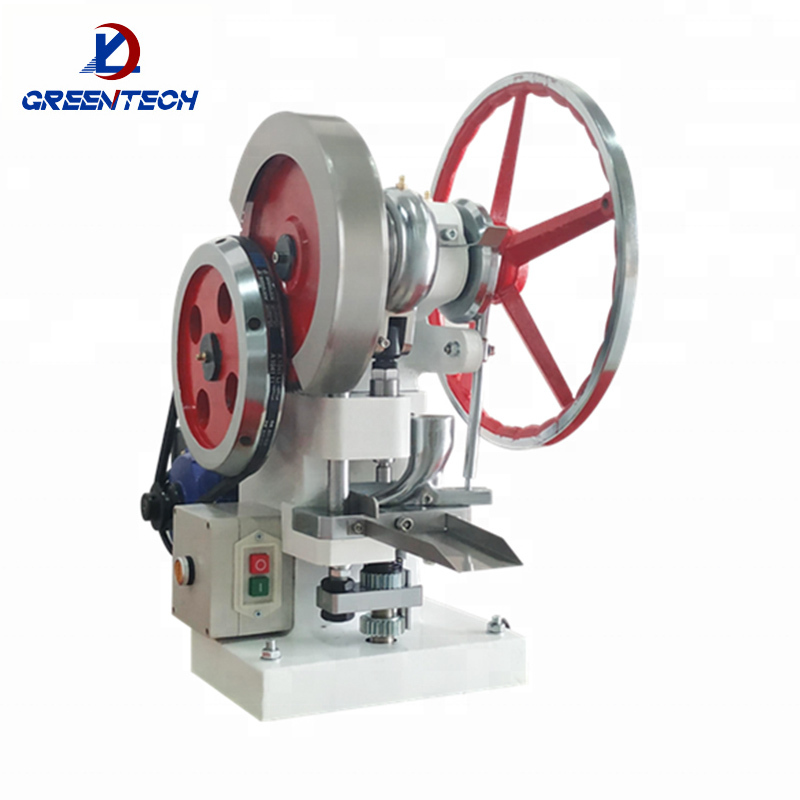

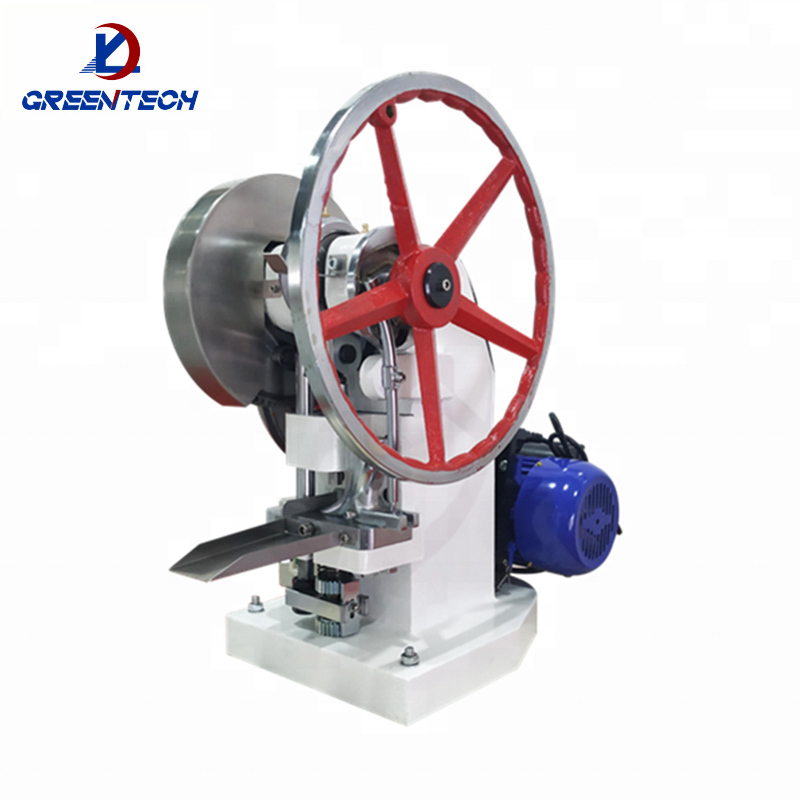

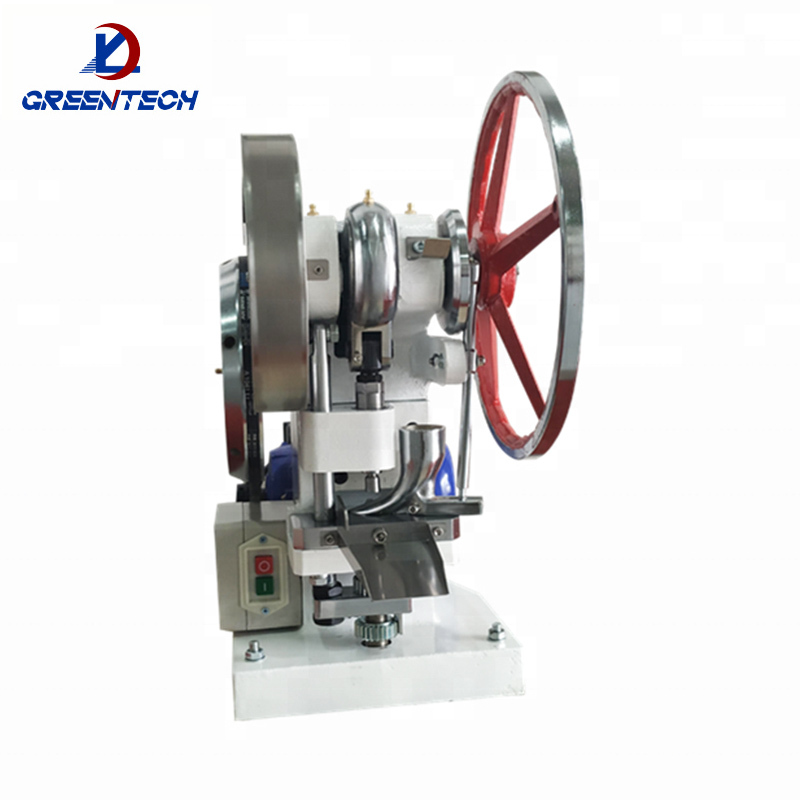

TDP-5 Automatic Pharmaceutical Pills Making Machine
The small single punch tableting machine is characterized by a small desktop electric continuous tableting machine, which can also be hand-cranked for tableting. A pair of punching dies can be installed on the machine, and the filling depth of the material and the thickness of the tablet can be adjusted. The machine has excellent performance, strong adaptability, convenient use, easy maintenance and small size.
- lvyi
- Shanghai, China
- in stock
- 2000 Set/Sets per month
Details
1. TDP-5 AUTOMATIC PHARMACEUTICAL PILLS MAKING MACHINE
2. FEATURES
(1)The tablet press is installed on a solid wooden workbench (it can also be installed on a cement table) and fixed with three pairs of M12 anchor screws. The length of the work table to the ground is about 600 mm, which is convenient for disassembly and repair. There should be a hole with a diameter of about 35 mm at the position corresponding to the lower punch rod on the wooden work table.
(2) Before turning on the motor power, connect the motor to the ground wire to ensure safety. Then remove the V-belt, turn on the power of the motor, and start the motor to observe whether the rotation direction of the motor is correct (the rotation direction of the motor shaft should be opposite to the direction of the arrow on the protective cover or the receiving wheel). The V-belt is installed.
3. SPECIFICATION
Product No | TDP-5 |
Max. Pressure (kn) | 50 |
Max. Dia. of Tablet (mm) | 20 |
Max. Depth of Filling (mm) | 15 |
Max. Thickness of Tablet (mm) | 6 |
Production Capacity (pcs/h) | 3600 |
Motor Power (kw) | 0.55 |
Overall Size (mm) | 840*490*860 |
Weight (kg) | 180 |
4. RANGE OF CONFIGURATION
Mainly used in pharmaceutical, chemical, food, electronics and other industrial sectors, suitable for small batch production, laboratories, hospitals and other departments to press pharmaceutical tablets, catalysts, sugar tablets, calcium tablets, coffee tablets, powder metallurgy, electronic components and various agricultural fertilizers Tablets etc.
5. PRODUCT DESCRIPTION
The working process of this machine is feeding → stamping → sheeting. Each process can be adjusted, which is suitable for the manufacturing requirements of various tablets, and the adjustment is convenient and the locking is firm. The main body of the TDP-5 single-punch tablet machine is a streamlined body, which is cast as a whole, which is firm and stable. The top main shaft is connected with a transmission gear. The two cams and flywheel are the key parts of the machine. Automatic feeding, punching, and filming are These two cams are used to control and cooperate with the mechanical transmission without error.
