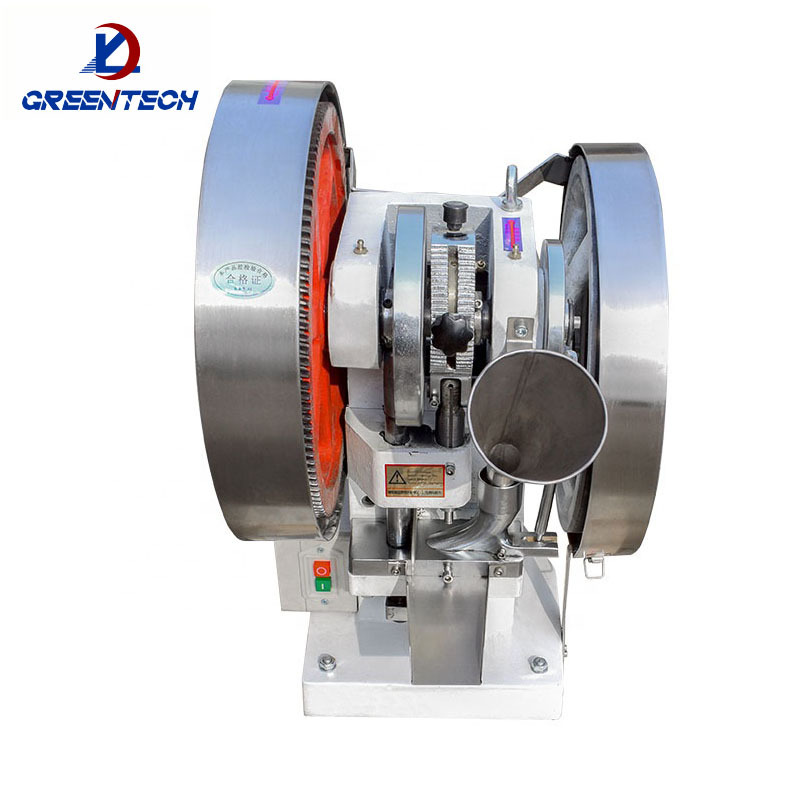

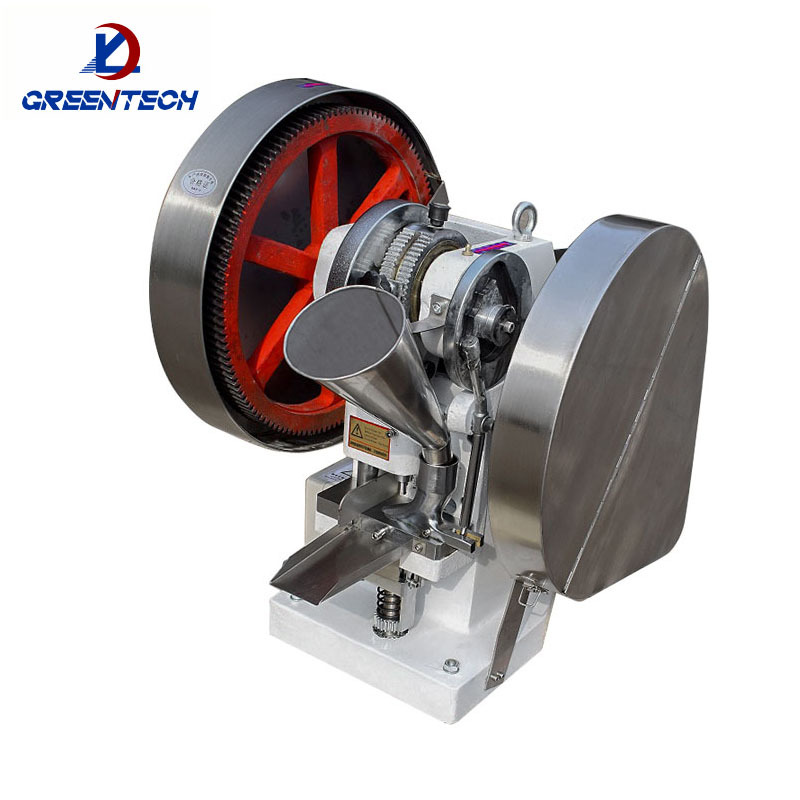

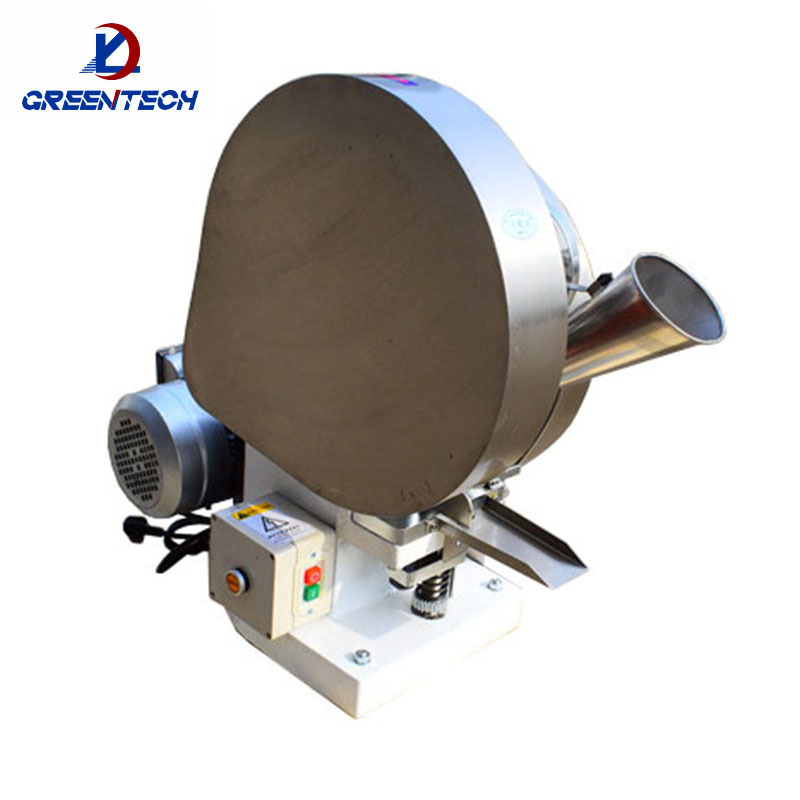

Long-lasting Electrical Dairy Tablet Processing Machine
TDP-6 tablet machine is a machine developed and produced on the TDP-5 single-punch tablet machine with continuous technological innovation and introduction of foreign technology. The dairy tablet processing machine has excellent performance, strong adaptability, high efficiency, and is easy to use.
The long-lasting Electrical machine can also be shaken by hand when there is no electricity. The filling depth of the material and the thickness of the tablet can be adjusted, and the mechanical operation can be clearly seen.
- lvyi
- Shanghai, China
- in stock
- 2000 Set/Sets per month
Details
1. LONG-lASTING ELECTRICAL DAIRY TABLET PROCESSING MACHINE
2.
3. FEATURES
This machine is a small desktop electric continuous tablet pressing machine. The punch part of the lower punch of the tablet pressing machine (its working position is upward) extends into the middle die hole from the lower end of the middle die hole, and seals the bottom of the middle die hole. Use the feeder to fill the medicine into the middle die hole, the punch part of the upper punch (with its working position facing down) falls into the middle die hole from the upper end of the middle die hole, and goes down for a certain stroke to press the medicine powder into tablets, and the upper punch Lift out the hole. The lower punch rises to push the tablet out of the middle die hole, completing a tableting process, and the lower punch descends to its original position, ready for the next filling.
4. SPECIFICATIONS
Product No | TDP-6 |
Max. Pressure (kn) | 60 |
Max. Dia. of Tablet (mm) | 25 |
Max. Depth of Filling (mm) | 15 |
Max. Thickness of Tablet (mm) | 6 |
Production Capacity (pcs/h) | 3000 |
Overall Size (mm) | 840*490*860 |
Weight (kg) | 190 |
5.RANGE OF CONFIGURATION
Clinics, schools, laboratories, hospitals, chemical factories, pharmaceutical factories, scientific research units and other mass production and processing.
6. PRODUCT DESCRIPTION
The compressed tablets have uniform thickness and high gloss without polishing, and the success rate can reach 100%. This machine is a single-layer electric manual tablet press, the tablet thickness can reach 10mm, and the maximum filling depth can reach 20mm. The machine is equipped with a set of commonly used tableting dies, and engraving dies and special-shaped dies can also be provided as required. The products are exported to more than 30 provinces, cities and districts across the country, and are exported to Germany, Russia, Vietnam, India and other countries and regions, and are widely praised by domestic and foreign customers.
