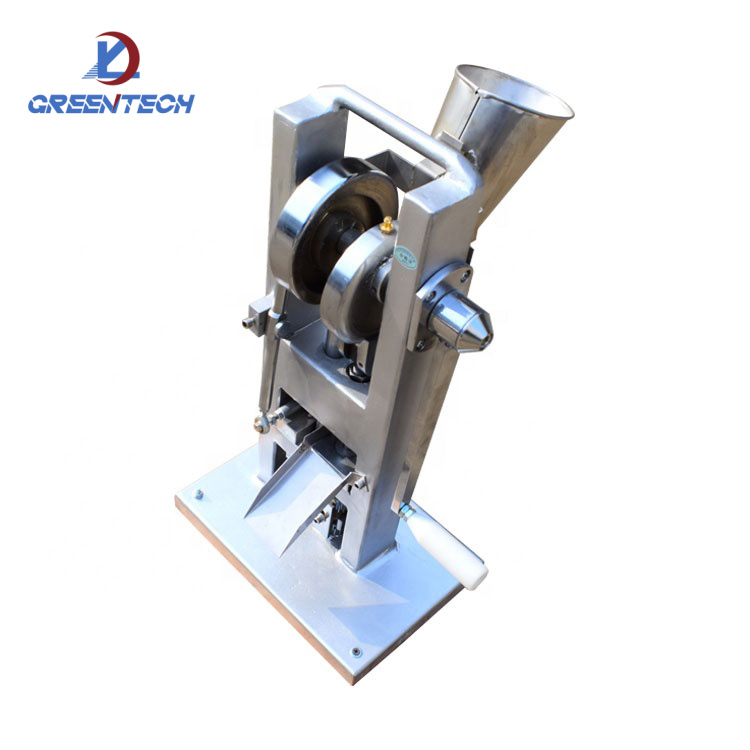

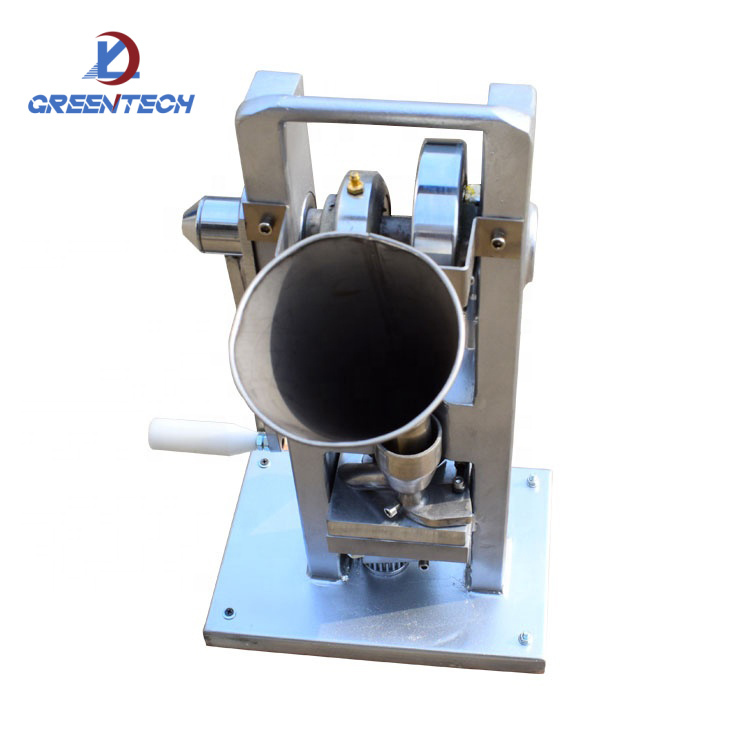

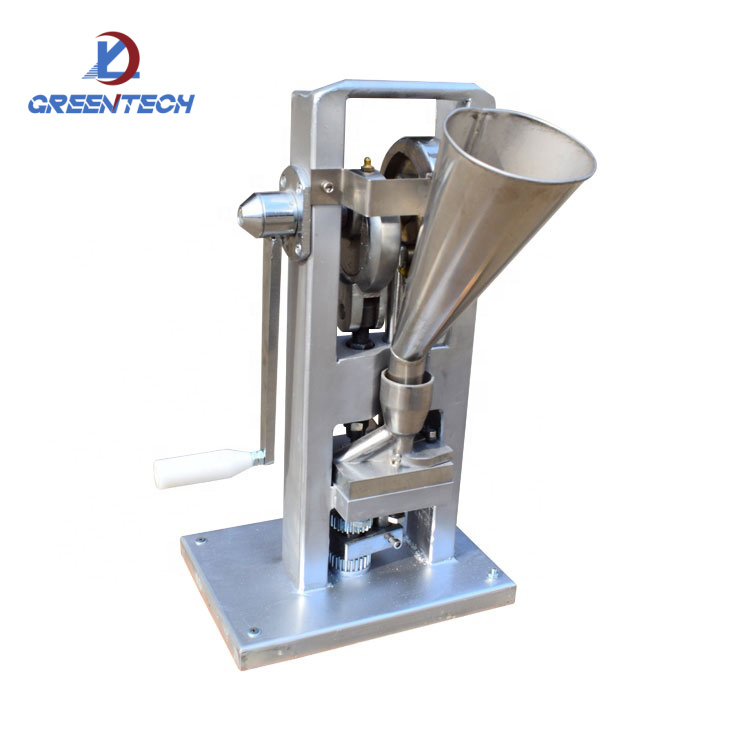

Manual Easy-operated Pill Press Machine
The main part of the TDP-0 hand-operated single punch tablet machine is a gantry type body, which is welded with carbon steel. The main shaft is connected with the eccentric wheel and the filling cam in series. The right end of the shaft is equipped with a rocker arm and a filling cam.
The handle, manually drives the main shaft, drives the eccentric wheel, the filling cam, the lift rod and the feeder, and the small lever drives the feeder to perform different lifting movements.
- lvyi
- Shanghai, China
- in stock
- 2000 Set/Sets per month
Details
1. MANUAL EASY-OPERATED PILL PRESS MACHINE
2. MAIN PICTURES
3. FEATURES
This manual pill press machine is used for tabletting different kinds of granular raw materials into round tablet. This hand-operated tablet press machine is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape. This easy-operated pill press machine features a small desktop type press for motive and continual sheeting. It can also be hand-operated. Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
4. SPECIFICATION
Product No | TDP-0 |
Max. Pressure (kn) | 15 |
Max. Dia. of Tablet (mm) | 10 |
Max. Depth of Filling (mm) | 15 |
Max. Thickness of Tablet (mm) | 6 |
Production Capacity (pcs/h) | 2000 |
Overall Size (mm) | 400*280*560 |
Weight (kg) | 25 |
5. RANGR OF CONFIGURATION
Traditional Chinese medicine, western medicine, health products, food, chemical industry, electronics and other industries.
6. PRODUCT DESCRIPTION
Advantages of hand-crank tablet press and single punch tablet machine：
Small size, light weight, beautiful appearance, compact structure, easy operation, wide range of uses, no need for electricity, easy to carry, etc. This manual easy-operated pill press machine can be manually cranked, and the required tablets can be obtained by changing the molds of different specifications.
