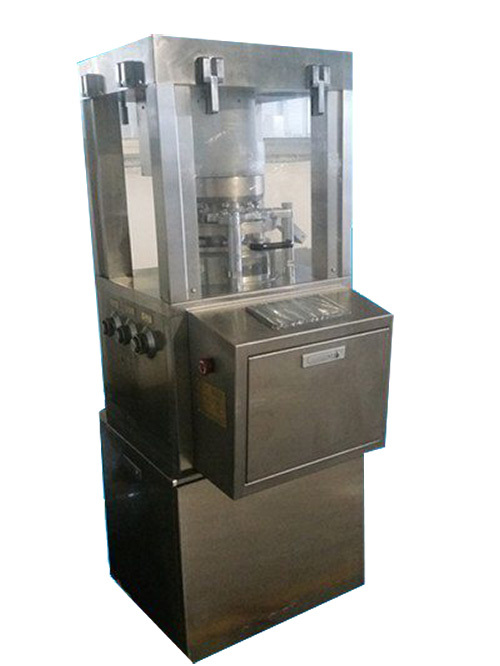

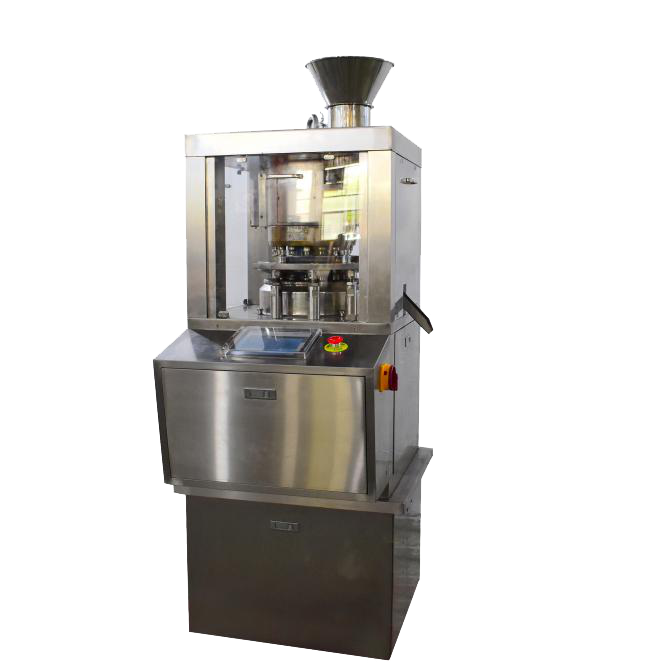

Efficient Multifunctional Tablet Press Machine
1.The outside part of the machine is fully-enclosed and it’s made of stainless steel to meet GMP standard.
2. It has transparent windows so that press condition can be observed clearly and windows can be opened.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details
1. Efficient Multifunctional Tablet Press Machine
2.
3. SPECIFICATION
Model | ZPY-8 | ZPY-10 | ZPY-16 |
No.of Stations | 8 | 10 | 16 |
Tooling Standard | D | D | B |
Max Production Capacity（pcs/h） | 14400 | 18000 | 28800 |
Max Turret Speed（r/min） | 0-30 | ||
Max Pre-pressure（kn） | 10 | ||
Max Main Pressure（kn） | 80 | ||
Max Filling Depth（mm） | 20 | ||
Max Tablet Thickness（mm） | 0.5～8 | ||
Max Tablet Diameter（mm） | Ф25 | Ф25 | Ф18 |
Motor Power（KW） | 2.2KW/380V, 50Hz, Three-phase five-wire system | ||
Overall Size（mm） | 540*520*1600 | ||
Machine Weight（kg） | 850 | ||
4. Performance
This machine is a sing-pressing type, continuous automatic tablet press for pressing granular raw materials into tablets. It’s mainly used in pharmaceutical industry and also the chemical, food, electronic, plastic and metallurgical industries.
5. Main Features
1. Both can press round and shaped tablets, and have impressed letters on both sides. And double color tablet is available.
2. All the controller and devices are located in one side of the machine, so that it can be easier operate.
3. An overload protection unit is included in the system to avoid the damage of punches and apparatus when overload occurs.
4. The machine’s worm gear drive adopts fully-enclosed. Oil-immersed lubrication with long service life to avoid cross pollution.
