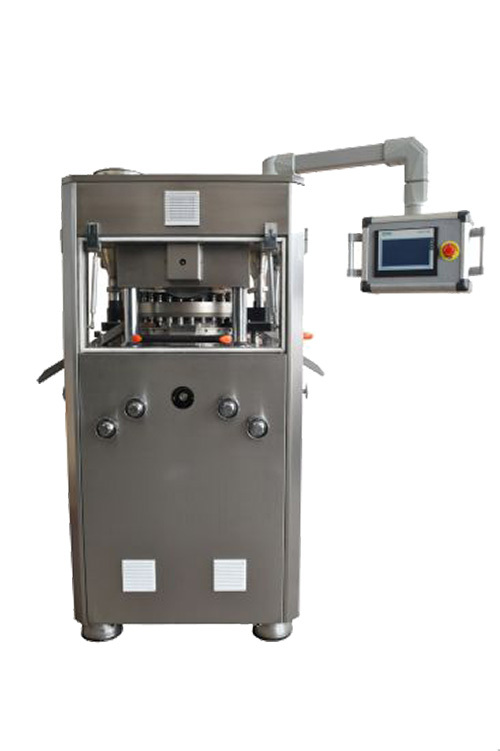

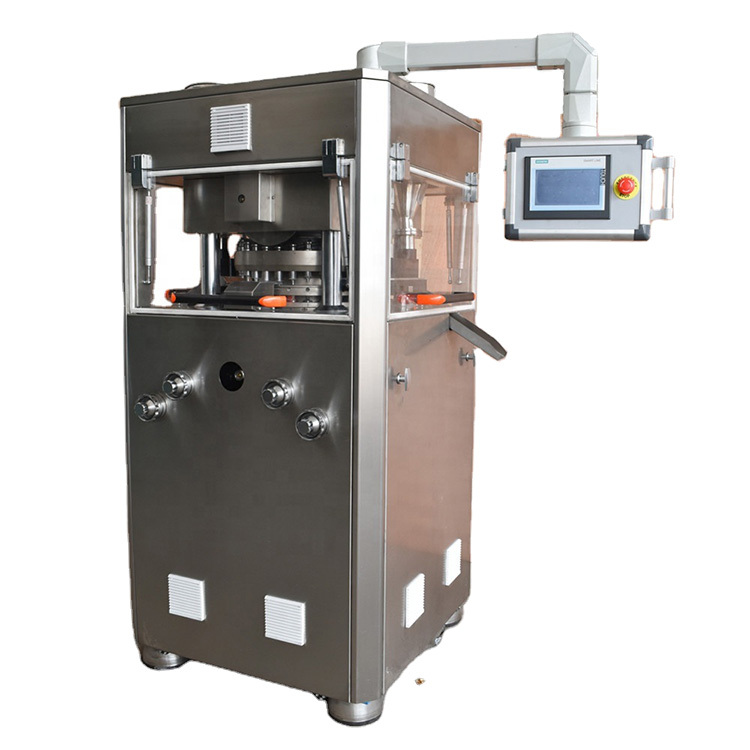

Large Candy Making Compression Machine
(1)The outer shell is fully enclosed, and the inner table is made of stainless steel, which can keep the surface clean and prevent cross-contamination.
(2)The plexiglass protective cover is used, which can clearly observe the working conditions of the tablet, and can be fully opened, which is easy to clean and maintain.
(3)The frequency conversion speed regulation is adopted, the adjustment range is large, and the operation is convenient.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Large Candy Making Compression Machine
2. Main Pictures
3. FEATURES
(1) Equipped with speed display and pressure overload shutdown protection.
(2) Equipped with a pre-compression device, which can remove the air in the filling material during tablet compression and increase the compression time.
(3) The transmission system is sealed in the oil tank under the main body of the machine, which is an independent part that is safely separated, will not contaminate each other, is easy to dissipate heat and is wear-resistant.
(4) Optional forced feeding device
4. SPECIFICATION
Model | ZPTX420-31D |
No. Of Stations | 31 |
Max Production Capacity (pcs/h) | 111600 |
Max Turret Speed (r/min) | 0-30 |
Max Pressure (KN) | 100 |
Max Filling Depth (mm) | 15 |
Max Tablet Thickness (mm) | 0.5~6 |
Max Tablet Diameter (mm) | Ф20 |
Motor Power (KW) | 5.5KW/380V, 50Hz, Three-phase five-wire system |
Overall Size (mm) | 1240*850*1850 |
Machine Size (kg) | 1850 |
5. RANGE OF CONFIGURATION
This machine is used to compress various granular raw materials into round tablets, and can also compress various geometric shapes of special-shaped tablets.
