Latest Design Two Outputs Rotary Tablet Press Machine
(1) This machine can be applicable to press formed with the amount of powder (more than 100 meshes) which does not exceed 10% of the granular raw material.
(2) Not suitable for semi solid, low melting point, easy to wet raw material and no particles of the powder.
(3) The machine is suitable for pressing round, abnormity, double lettering tablet.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 200Set/Sets per year
Details
1. Latest Design Two Outputs Rotary Tablet Press Machine

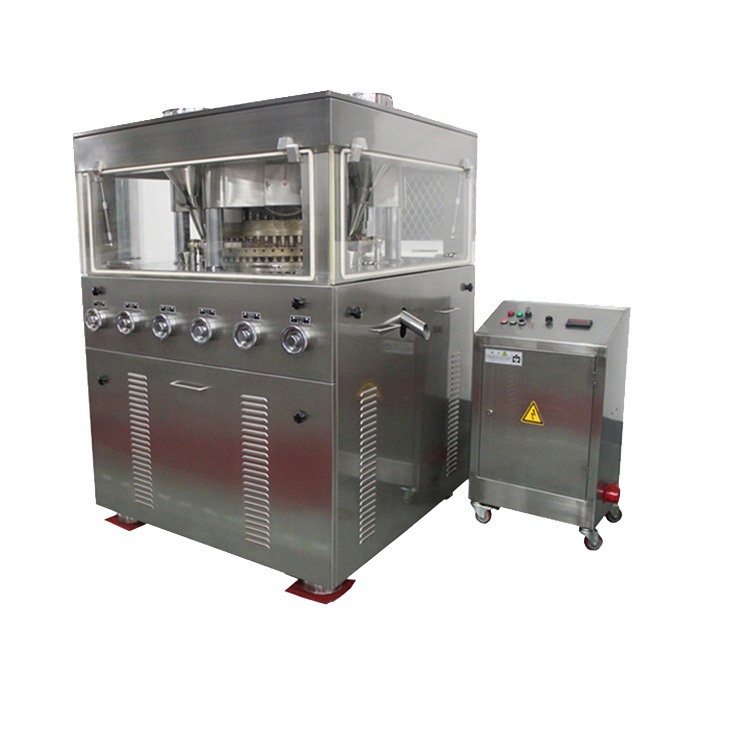

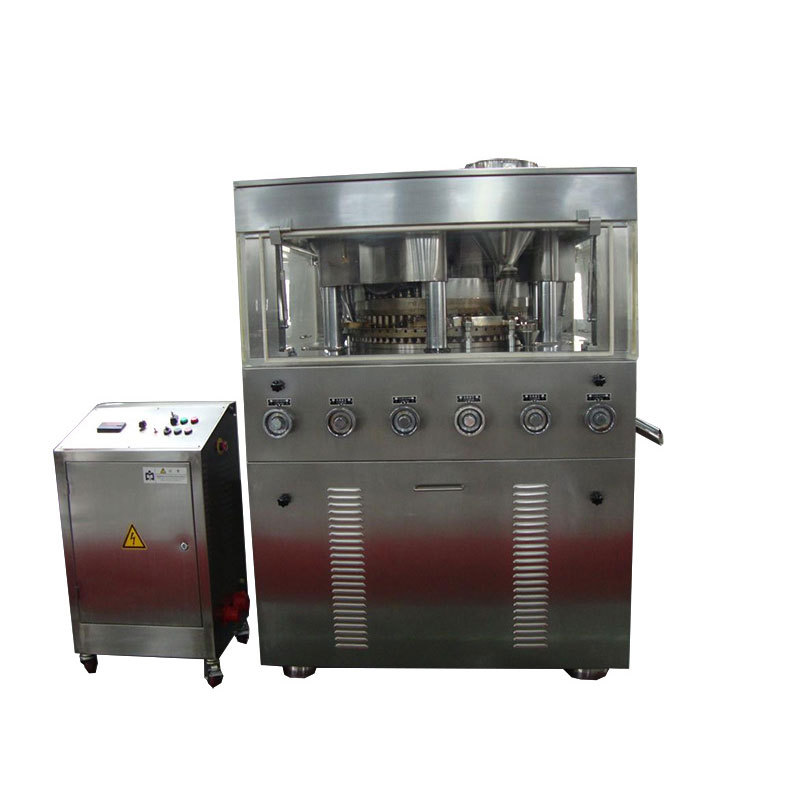

2. Main Pictures
3. FEATURES
The machine is equipped with special dust auxiliaries (According to the requirements of users) . The pressure chamber is always in the state of negative pressure, the air convection is formed from top to bottom, which can absorb clean indoor dust and reduce dust float in the air.
4. SPECIFICATION
No | Name | Unit | Index |
1 | Punch dies | sets | 45 |
2 | Max. pressure | kn | 150 |
3 | Max. tablet diameter | mm | 20 |
4 | Max tablet thickness | mm | 8 |
5 | Ma. filling depth | mm | 15 |
8 | capacity | pcs/h | 40500 |
9 | Power | kw | 15 |
10 | machine size | mm | 1150*1150*1900 |
11 | WeightOverall size | kg | 4000 |
5. RANGE OF CONFIGURATION
This machine is an automatic rotation, continuous press machine for pressing granular raw materials into tablets. It is mainly used in pharmaceutical industry for manufacturing tablet, can also apply to the food, chemical, batteries, electronics, ceramics and other industrial sectors.
