Milk Tablet Rotary Tablet Making Machine
(1)This machine is a miniaturized machine based on a multi-punch tablet machine, and has been further improved on the basis of the original model to solve the defects of the original model, making it more applicable and more user-friendly.
(2)It is mainly used for process research and small batch production in pharmaceutical, chemical, food, electronics and other industrial sectors, and to confirm whether granular raw materials can be compressed into tablets.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Milk Tablet Rotary Tablet Making Machine

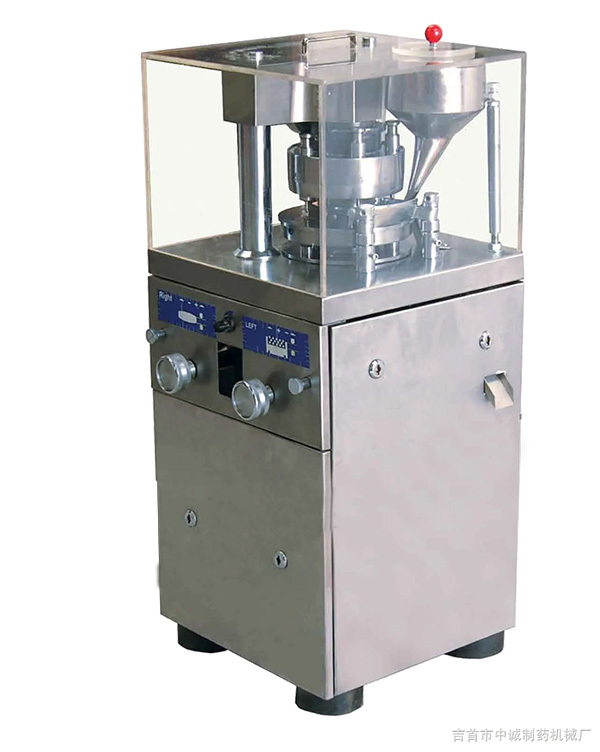

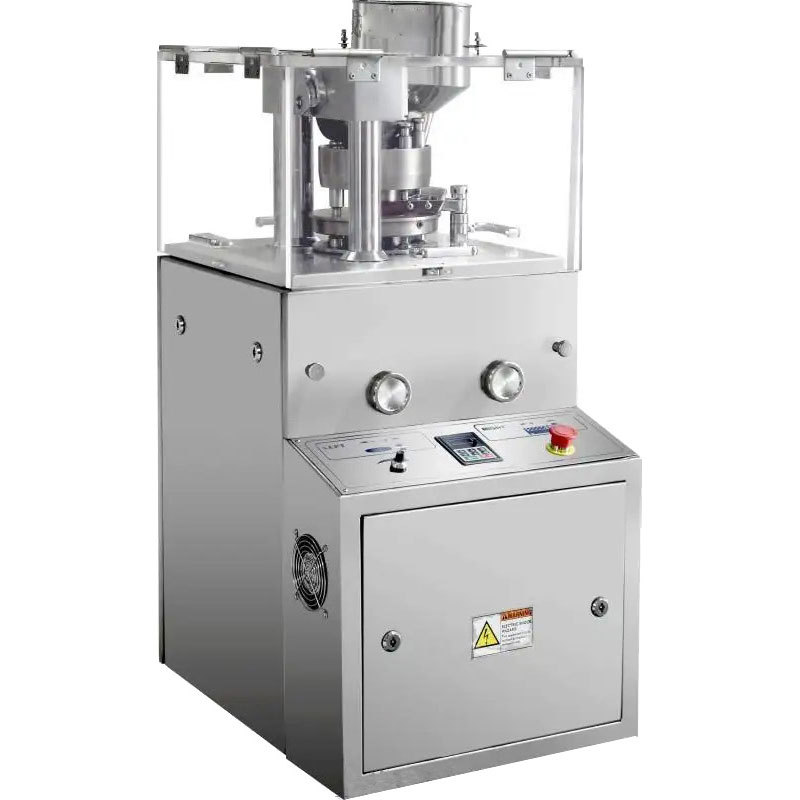

2. Main Pictures
3. FEATURES
(1) This machine is suitable for tablets that can be compressed into tablets (within the pressure range of the machine). And the powder content (above 100 mesh) is not more than 10% of the compression of granular raw materials.
(2) This machine is suitable for pressing 4-20mm round, special-shaped and lettering tablets.
(3) This machine is not suitable for semi-solid, wet particles, low melting point moisture-absorbing materials and non-particles.
4. SPECIFICATION
Product No. | ZP130-9B |
Quantity of Punch & Die (set) | 9 |
Max. Pressure (kn) | 50 |
Max. Dia. of Tablet (mm) | 20 |
Max. Thickness of Tablet (mm) | 6 |
Max. Depth of Filling (mm) | 15 |
Rotate Speed (r/min) | 25 |
Production Capacity (pcs/h) | 13500 |
Voltage (v/hz) | 220/50 |
Motor Power (kw) | 2.2 |
Overall Size (mm) | 640*480*1100 |
Weight (kg) | 300 |
5. RANGE OF CONFIGURATION
It is mainly used for process research and small batch production in pharmaceutical, chemical, food, electronics and other industrial sectors, and to confirm whether granular raw materials can be compressed into tablets.
