Powerful Effervescent Tablet Press Machine
The two side panels and rear side panels of the machine can be opened with special keys, which makes the repair and maintenance of the machine more convenient.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Powerful Effervescent Tablet Press Machine

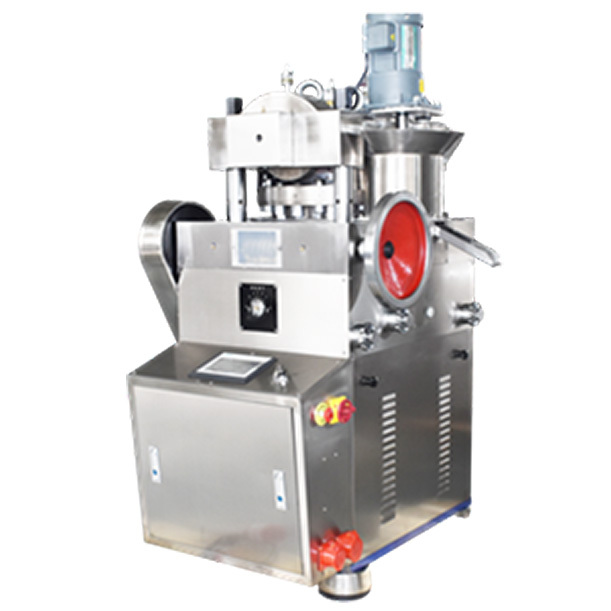

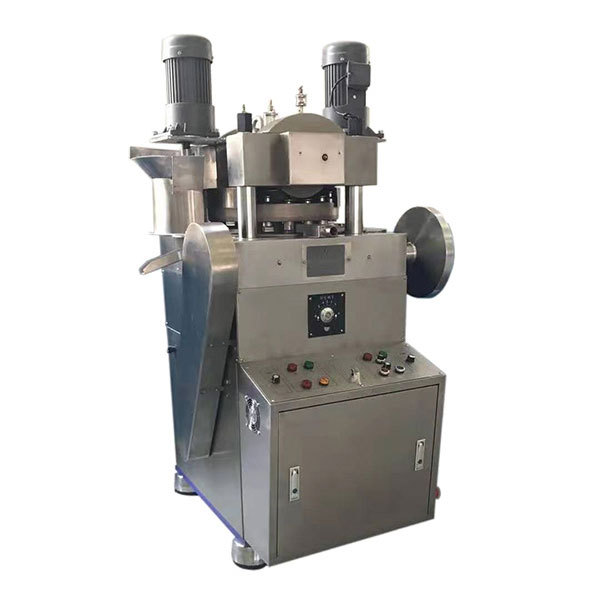

2. Main Pictures
3. FEATURES
The upper pressure wheel is equipped with an unloading device, and its pressure can be adjusted. When the working pressure of the punch exceeds the preset pressure, the pressure is unloaded by the compression of the spring, and the buzzer sends out sound and light signals, and the machine stops immediately to prevent mechanical damage.
4. SPECIFICATION
Model | ZP420-19B |
No.of Stations | 19 |
Max Production Capacity（pcs/h） | 45600 |
Max Turret Speed（r/min） | 0-20 |
Max Pressure（kn） | 120 |
Max Filling Depth（mm） | 32 |
Max Tablet Thickness（mm） | 16 |
Max Tablet Diameter（mm） | Ф40 |
Motor Power（kw） | 5.5KW/380V，50Hz |
Overall Size（mm） | 950*900*1550 |
Machine Weight（kg） | 1500 |
5. PRODUCT DESCRIPTION
(1) Made of stainless steel, the housing is fully closed.The surface of the rotary turret is covered with a hardened layer so that the turret surface is wear resistant. The machine conforms to GMP.
(2) All the drive devices are located inside the machine so keep the machine clean.
(3) The machine can stop automatically in case of overpressure.
(4) Force feeder is optional.
