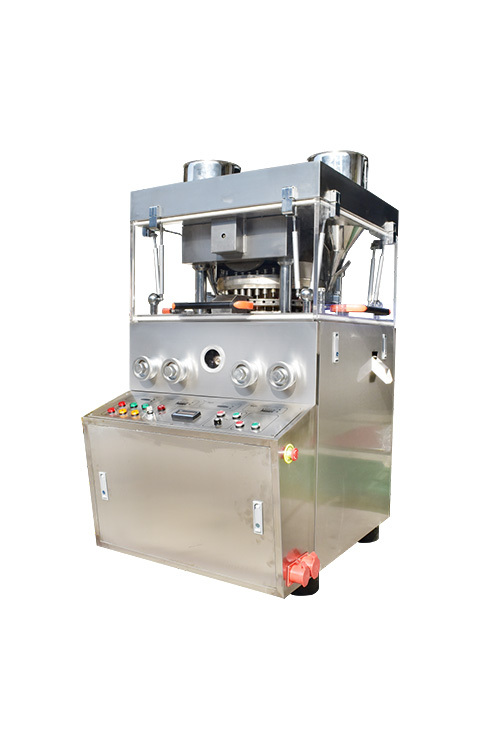

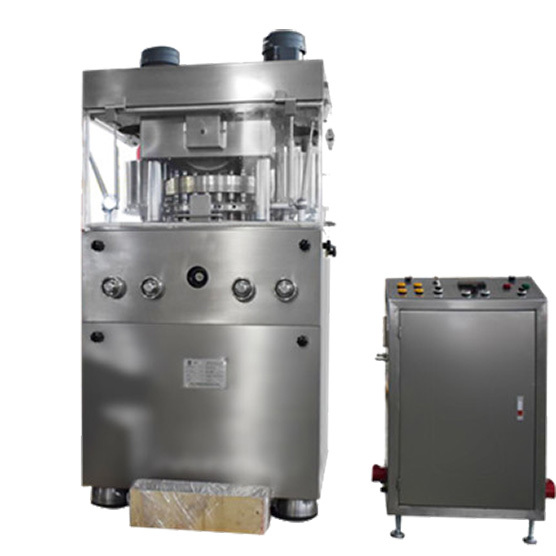

Rotary Water Softener Salt Tablet Press Machine
This machine is a double-pressing, rotary continuous tableting, and cost-effective machine. It is mainly used in the manufacture of tablets in the pharmaceutical industry, and is also suitable for industrial sectors such as chemical industry, food, electronics, etc., to compress granular raw materials into tablets.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details

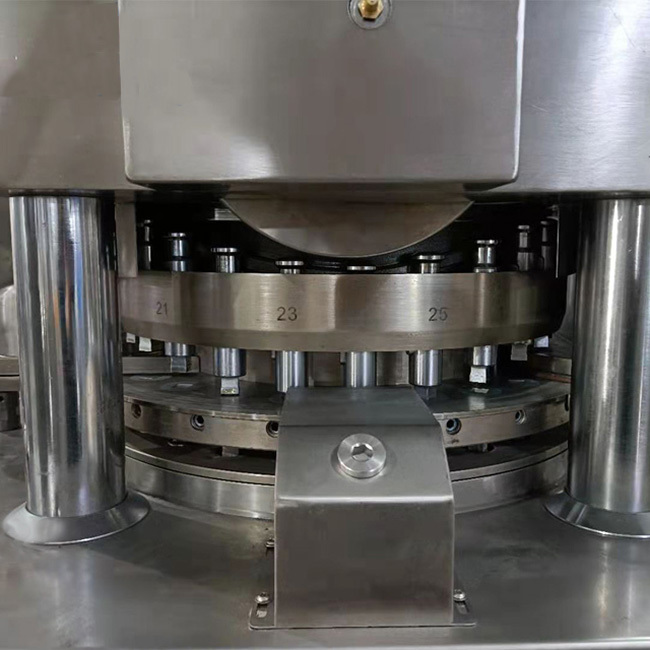

1. Main picture
2. Particle requirements
(1) Particle size range: 14-60 mesh, with good compressibility and fluidity;
(2) Synthetic drug starch tablets: the granules are uniform, not wet, and the proportion of fine powder (above 60 mesh) in the granules is not more than one-third;
(3) Chinese medicine granules: full extract, semi-extract and raw powder granules should not be wet and have certain fluidity.
(4) It is suitable for direct compression of powder, and the compressed powder should have certain compressibility and fluidity.
3. Specifications
Product No. | ZP420-25D |
Quantity of Punch & Die (set) | 25 |
Max. Pressure (kn) | 120 |
Max. Dia. of Tablet (mm) | 25 |
Max. Thickness of Tablet (mm) | 16 |
Max. Depth of Filling (mm) | 32 |
Rotate Speed (r/min) | 20 |
Production Capacity (pc/h) | 75000 |
Motor Power (kw) | 7.5 |
Overall Size (mm) | 1240×980×1650 |
Weight (kg) | 1950 |
