Camphor Pills Making Machine
(1)The main drive adopts frequency conversion technology, so it saves energy and reduces consumption, has reliable control, stable operation and low noise.
(2)The variable frequency governor itself has intelligent control, and the electrical system control gives full play to the function of the frequency converter, realizing the smooth start, stop, overload protection, fault alarm, fault stop, speed and current display of the turntable without overloading.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 120 sets per year
Details

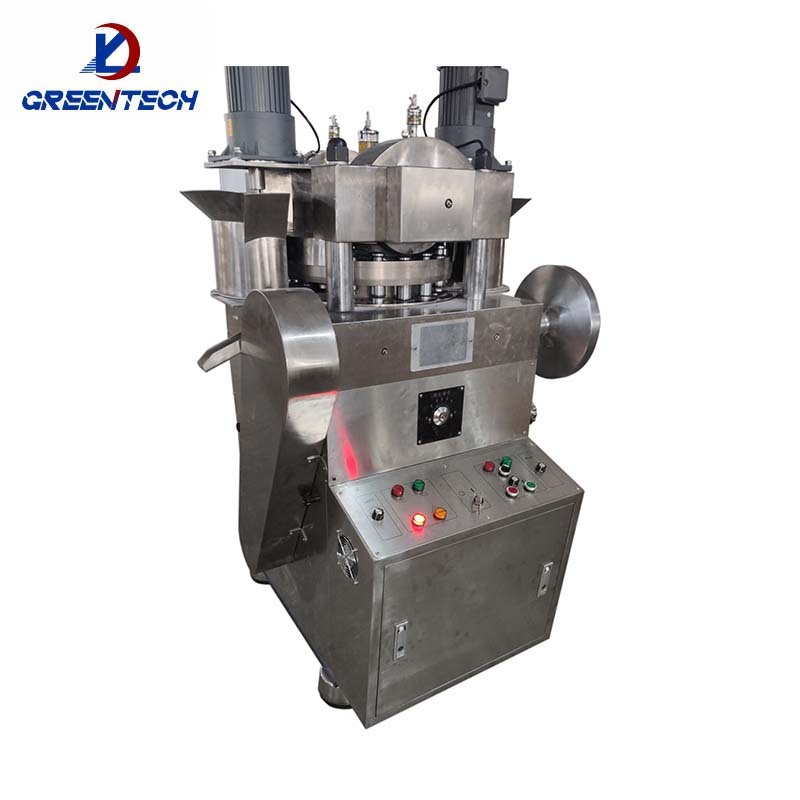

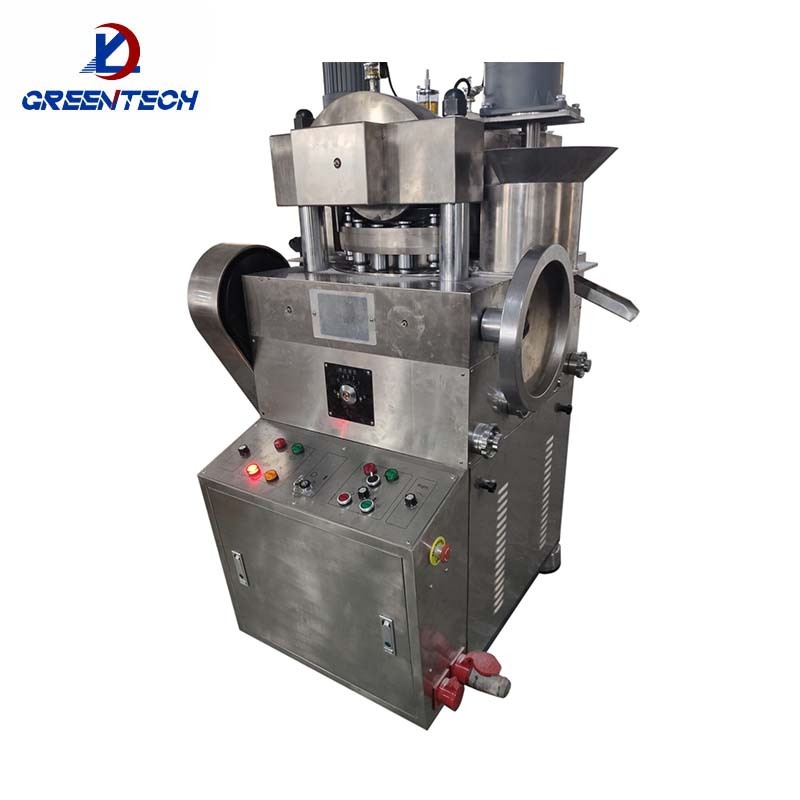

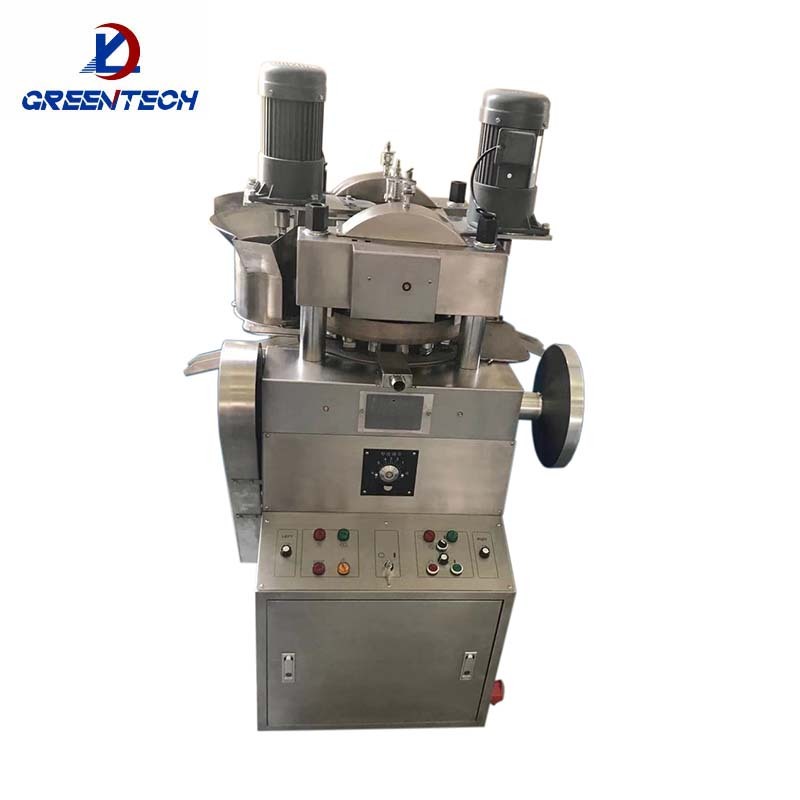

1. Product Picture
2. SPECIFICATIONS
Model | ZP420-23B |
No.of Stations | 23 |
Max Production Capacity（pcs/h） | 55200 |
Max Turret Speed（r/min） | 0-20 |
Max Pressure（kn） | 120 |
Max Filling Depth（mm） | 30 |
Max Tablet Thickness（mm） | 6-18 |
Max Tablet Diameter（mm） | Ф30 |
Motor Power（kw） | 5.5KW/380V，50Hz |
Overall Size（mm） | 950*900*1550 |
Machine Weight（kg） | 1400 |
FORCE FEEDING
(1) The airtight two-layer double impeller forcibly feeds the powder, which increases the filling capacity of the powder and effectively prevents the coarse and fine separation of the particles, thereby solving the problems of insufficient feeding by gravity, excessive dust and cross-contamination in ordinary tablet presses.
(2) Since the feeding motor adopts variable frequency speed regulation and can be automatically increased with the increase of the main motor speed, the problem of insufficient feeding when the speed is increased is solved.
(3) The surface of the bottom plate of the feeder is matched with the upper surface of the middle punching plate in a gap type (gap ≤ 0.05mm) and the function of the powder scraper, so that the powder rejection and leakage no longer exist.
(4) The rate is high and is conducive to the stability of the tablet weight.
