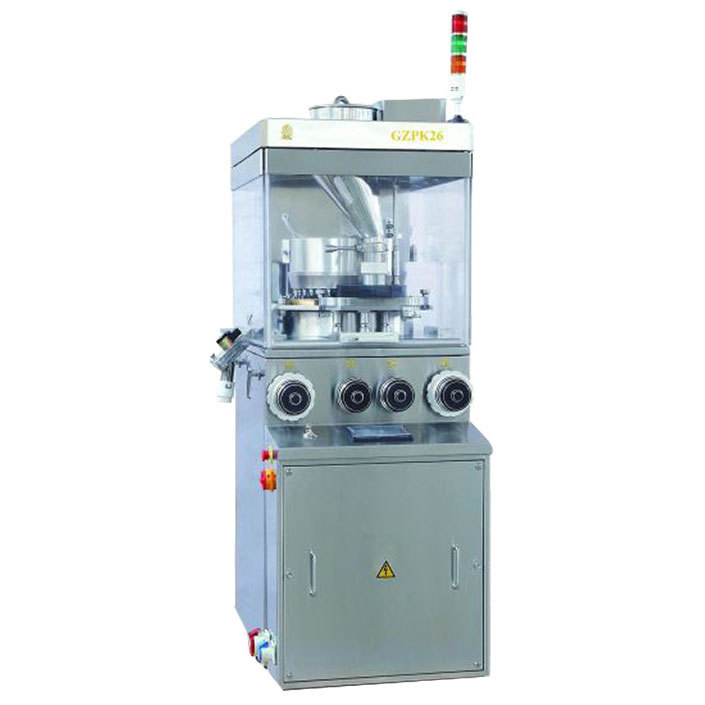

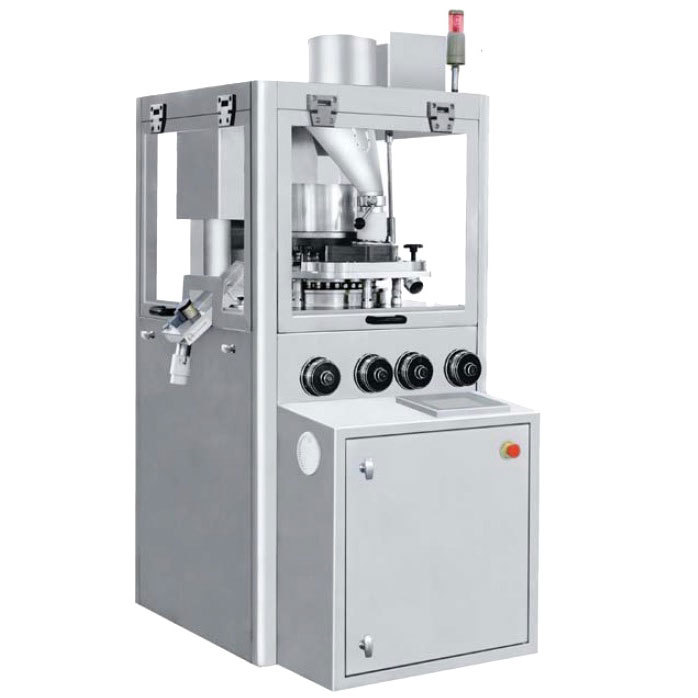

Efficient Candy Tablet Pill Making Machine
1. This high speed candy tablet press machine adopts a large pressure structure, the main pressure and pre-pressure are both 100KN.
2. The standard forced feeder is suitable for direct powder pressing or pressing difficult-to-form materials.
3. The rotary large tablet compression machine adopts automatic control without handwheel, and the main pressure, pre-pressure and filling volume are all adjusted by servo motors.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 10 sets per month
Details
1. Features
(1) Single-pressure single-sided film output, occupying a small workshop area.
(2) The tablet pressing room is closed with transparent plexiglass and stainless steel countertops, and can be fully opened, which is easy for mold replacement and maintenance.
(3) Both the main pressure and pre-pressure are equipped with pressure sensors, which can display the working main pressure and pre-pressure of the punch in real time, and the upper limit of pressure protection can be set, and it can automatically stop when the pressure is overloaded.
(4) On-line pressure detection and automatic adjustment of sheet weight, with the function of kicking waste.
2. Main Technical Specifications
Model Parameter | GZPK26 | GZPK32 | GZPK40 | GZPK50 |
Punch pin number | 26 | 32 | 40 | 50 |
Punch Type (IPT) | D | B | BB | TF16 |
Production range (10,000 tablets/h) | 34000～171000 | 42000～211000 | 52000～264000 | |
Rotating speed (rmp) | 22～110 | |||
Maximum main pressure | 100KN | |||
Maximum pre-pressure | 16KN | |||
Maximum filling depth | 20mm | 16mm | 16mm | 16mm |
Tablet thickness range | 0.5～9mm | |||
Maximum tablet diameter | Ф25mm | Ф16mm | Ф13mm | Ф10mm |
Maximum abnormal axis size | ＜25mm | ＜19mm | ＜16mm | ＜11mm |
Die diameter | Ф38.10mm | Ф30.16mm | Ф24.00mm | Ф19.00mm |
Plunger diameter | Ф25.35mm | Ф19.00mm | Ф19.00mm | Ф16.00mm |
Plunger length | 133.60mm | |||
Working noise | ≤70dB | |||
Total power | 7.5KW/380V，50Hz， 7.5KW/380V, 50Hz, three-phase five-wire system | |||
Bounday dimension of equipment | 820×1100×1750 mm | |||
Net weight of equipment | 1,450kg | |||
Remark | The maximum production refers to the maximum production realized under the conditions of round tablets, minimum tablet diameter and maximum rotating speed. The production is influenced by tablet diameter and tablet type. | |||
