Milk Slice Tablet Making Machine
This machine can press powder and small granules into round or special-shaped tablets below 12mm, with an output of 9000-15000 tablets per hour. Tablet thickness, pressure, and tablet pressing speed can be adjusted according to customer requirements.
- lvyi
- Shanghai, China
- 30 days after advance payment
- 1000 Set/Sets per year
Details
1. Milk Slice Tablet Making Machine

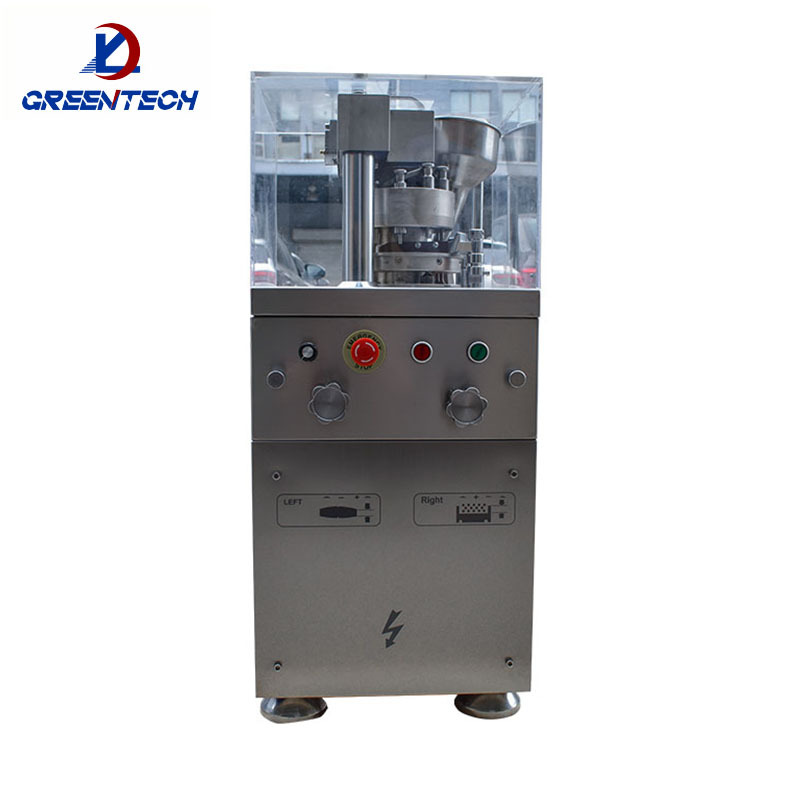

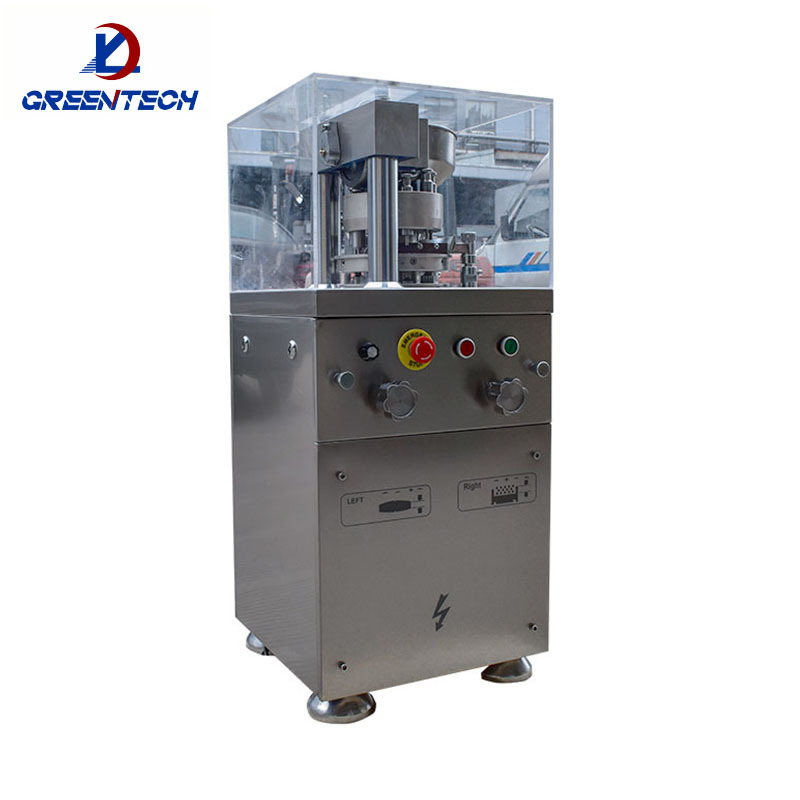

2. Main Pictures
3. Features
(1) This machine is currently the lightest and smallest rotary tablet press in China.
(2) The whole machine is made of stainless steel material by precision machining, and the support frame is made of aluminum alloy material. The upper and lower parts can be disassembled independently, which is convenient for transportation.
(3) The studio is sealed by a fully transparent plexiglass cover, which can effectively prevent mosquitoes and dust, clean and beautiful, the working situation is clear at a glance, and the waste is easy to clean, which meets the national GMP production standard.
(4) The glass cover can be removed when removing residual powder and waste, which is very convenient.
4. Main Technical Data
Product No. | ZP130-9A |
Quantity of Punch & Die (set) | 9 |
Max. Pressure (kn) | 50 |
Max. Dia. of Tablet (mm) | 20 |
Max. Thickness of Tablet (mm) | 6 |
Max. Depth of Filling (mm) | 15 |
Rotate Speed (r/min) | 20 |
Production Capacity (pcs/h) | 10800 |
Voltage (v/hz) | 220/50 |
Motor Power (kw) | 2.2 |
Overall Size (mm) | 620*480*1020 |
Weight (kg) | 260 |
